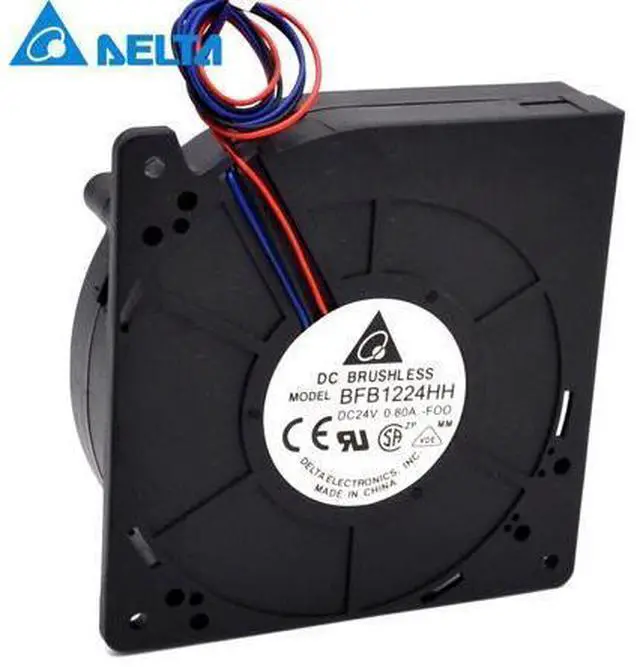

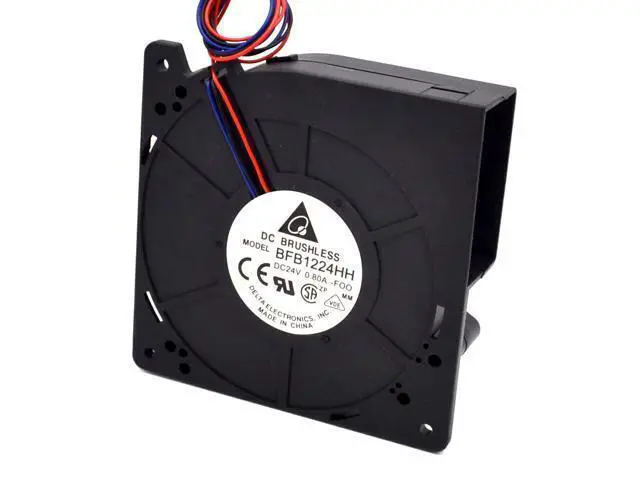

BFB1224HH 12cm 24V 0.8A 12032 turbo blower fan DELTA 120*120*32mm
- :deltaFan models: BFB1224HH - FOOAppearance size: 120 * 120 * 32 mmThe pitch of screws: 105 mmBearing: dual ball bearing with high precisionVoltage: 24 v16 v voltage start:Operating voltage: 7.0 to 27.6 VCurrent: 0.8 APower: 19.2 WSpeed: 2800 RPM + 2800 RPMNoise: 54 db a.Air volume: 32.49 CFMLine length: 30 cmConnection: 3 line 3 p interface support speedFan framework: a injection molding, flame retardant PBT + 30% glass fiber VO levelThe blades: a injection molding, PBT + 30% glass fiber + VO level flame retardant.Fan spin to: look from the direction of the blades to counterclockwiseOperating temperature: - 10 c to + 70 degrees CelsiusStorage temperature: - 40 c to + 70 degrees CelsiusScope of supply: plus or minus 15% of the rated powerInsulation resistance: greater than 500 ohmsWithstand voltage: collects the leakage current of 0.5 mA 500 v / 1 minuteWorking life: when ambient temperature of 25 degrees 80000 hoursScope of application: frequency converter and other industrial equipmentNet weight: 230 gOrigin: Taiwan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
: deltaFan
models: BFB1224HH - FOO
Appearance size: 120 * 120 * 32 mmThe pitch of screws: 105
mmBearing: dual ball bearing with high precisionVoltage: 24
v16 v voltage start: Operating
voltage: 7.0 to 27.6
VCurrent: 0.8
APower: 19.2
WSpeed: 2800 RPM + 2800
RPM
Noise: 54 db a.
Air volume: 32.49 CFM
Line length: 30
cmConnection: 3 line 3 p interface support speedFan framework: a injection molding, flame retardant PBT + 30% glass fiber
VO levelThe blades: a injection molding, PBT + 30% glass fiber + VO level flame retardant.
Fan spin to: look from the direction of the blades to counterclockwiseOperating temperature: - 10 c to + 70 degrees
CelsiusStorage temperature: - 40 c to + 70 degrees
CelsiusScope of supply: plus or minus 15% of the rated powerInsulation resistance: greater
than 500 ohmsWithstand voltage: collects the leakage current of 0.5 mA 500 v / 1 minuteWorking life: when ambient temperature of 25 degrees 80000 hoursScope of application: frequency converter and other industrial equipmentNet weight: 230
gOrigin: Taiwan
models: BFB1224HH - FOO
Appearance size: 120 * 120 * 32 mmThe pitch of screws: 105
mmBearing: dual ball bearing with high precisionVoltage: 24
v16 v voltage start: Operating
voltage: 7.0 to 27.6
VCurrent: 0.8
APower: 19.2
WSpeed: 2800 RPM + 2800
RPM
Noise: 54 db a.
Air volume: 32.49 CFM
Line length: 30
cmConnection: 3 line 3 p interface support speedFan framework: a injection molding, flame retardant PBT + 30% glass fiber
VO levelThe blades: a injection molding, PBT + 30% glass fiber + VO level flame retardant.
Fan spin to: look from the direction of the blades to counterclockwiseOperating temperature: - 10 c to + 70 degrees
CelsiusStorage temperature: - 40 c to + 70 degrees
CelsiusScope of supply: plus or minus 15% of the rated powerInsulation resistance: greater
than 500 ohmsWithstand voltage: collects the leakage current of 0.5 mA 500 v / 1 minuteWorking life: when ambient temperature of 25 degrees 80000 hoursScope of application: frequency converter and other industrial equipmentNet weight: 230
gOrigin: Taiwan
