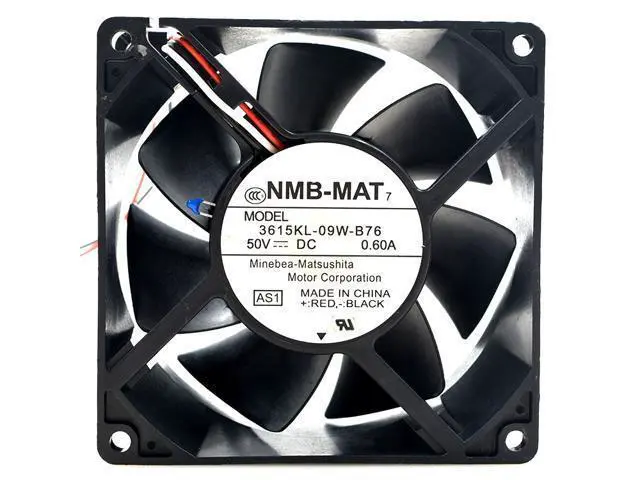

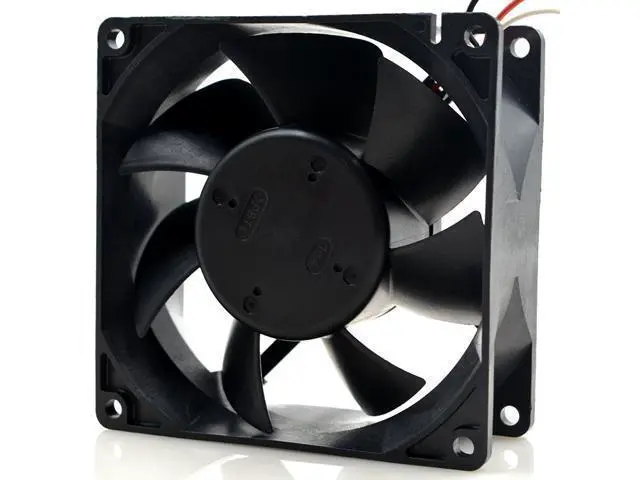

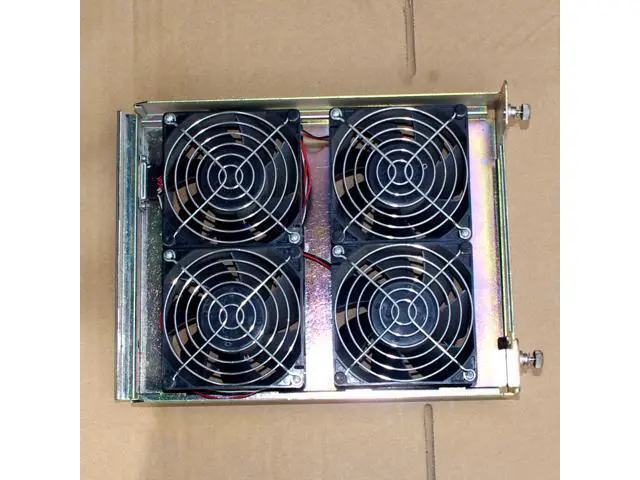

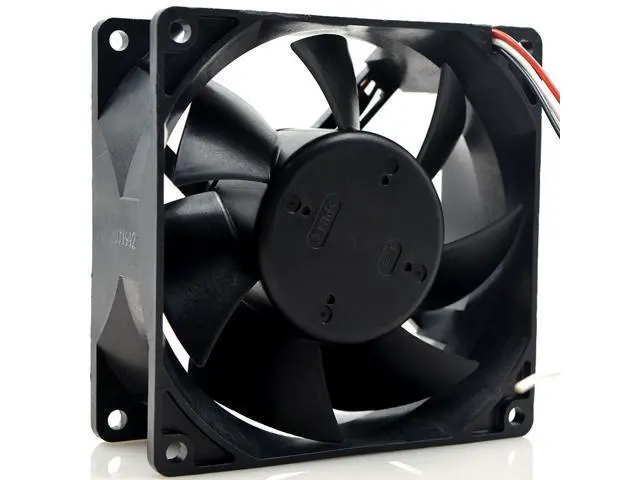

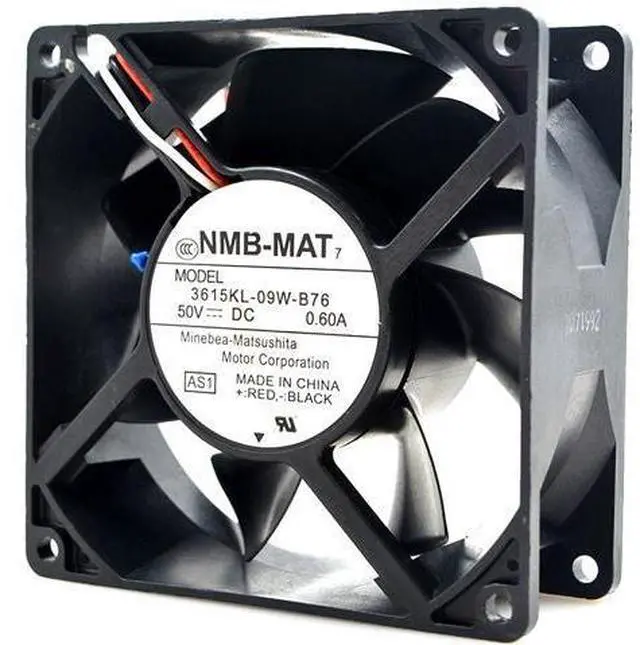

NMB 92*38mm 3615KL-09W-B76 AS1 50V 0.6A 3 Wires 9CM Server Fan, Inverter power Cooler
- Brand: NMB-MAT; Model number: 3615KL-09W-B76; Dimensions: 92×92×38mm; Voltage: 50VDC; Work rate: 0.60A; Work rate: 30W; Speed: 8200RPM; Bearing: high-precision ball bearing;; Line length: 15MM; Number of lines: 3 lines; Noise: 79dBA; Service life: 180,000 hours (25?, 45~85% relative humidity environment); 9CM Server Fan; Inverter power Cooler
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand: NMB-MAT
Model number: 3615KL-09W-B76
Dimensions: 92×92×38mm
Voltage: 50VDC
Work rate: 0.60A
Work rate: 30W
Speed: 8200RPM
Bearing: high-precision ball bearing;
Line length: 15MM
Number of lines: 3 lines
Noise: 79dBA
Service life: 180, 000 hours (25?, 45~85% relative humidity environment)
Fan frame: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: viewed from the direction of the fan blade, it is counterclockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Power supply range: plus or minus 15% of the rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: sink leakage current 0.5 mA 500V/1 minute;
Working life: 80, 000 hours at an ambient temperature of 25 degrees
Model number: 3615KL-09W-B76
Dimensions: 92×92×38mm
Voltage: 50VDC
Work rate: 0.60A
Work rate: 30W
Speed: 8200RPM
Bearing: high-precision ball bearing;
Line length: 15MM
Number of lines: 3 lines
Noise: 79dBA
Service life: 180, 000 hours (25?, 45~85% relative humidity environment)
Fan frame: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: viewed from the direction of the fan blade, it is counterclockwise;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Power supply range: plus or minus 15% of the rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: sink leakage current 0.5 mA 500V/1 minute;
Working life: 80, 000 hours at an ambient temperature of 25 degrees
