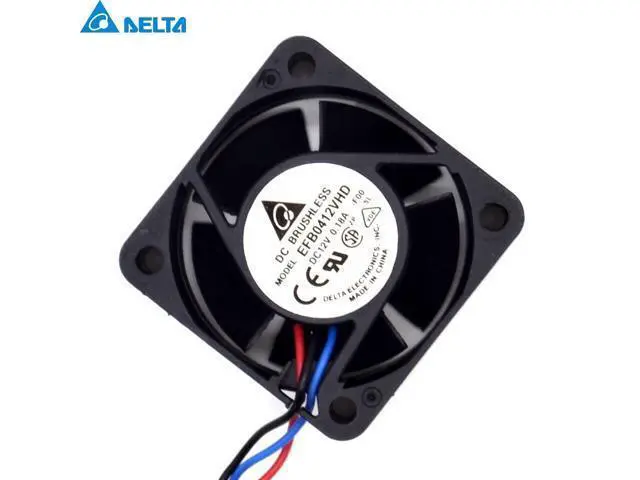

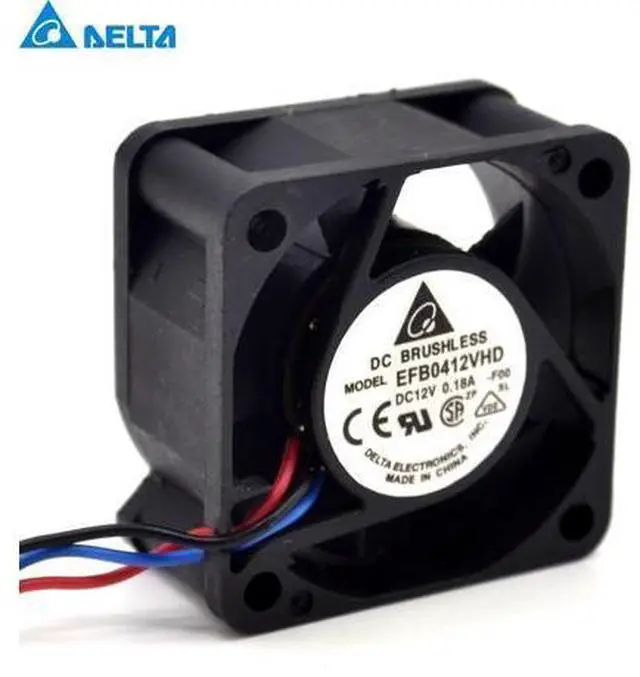

Delta EFB0412VHD -R00 / FOO 12v0.18a Double-ball 2 and 3wire 4020 fan

Be the first to review this product...

Delta 4 cm 4020 pairs of ball single fan 0.18A EFB0412VHD:DeltaFan Model]: EFB0412VHD[Size]: 40 × 40 × 20mm[Rated]: DC12V[Voltage Range]: DC7.0V-14.0V[Input Power]: 0.18A (nominal current)[Rated speed]: 9000 r.p.m[Temperature Range]: -10 .. 70 ° C[Life expectancy]: 25 ° C when the expected life of 40,000 hours L10[Bearing]: maintenance- double ball bearing[Rotation]: Wind discharged from the stent, the face of the rotor counter-clockwise rotation[Wiring]: + Red - Black Blue Line Alarm[Maximum air volume]: 17.1 m3 / h[Motor Protection]: wrong lock-level protection and stall current protection[Minimum air pressure]: 0 .. 105 Pa[Noise index]: 32.5 dB (A)[Material Material]: Glass fiber reinced plastic, PBT housing, PA leaves, greencertification

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Delta 4 cm 4020 pairs of ball single fan 0.18A
EFB0412VHD: DeltaFan
Model]:
EFB0412VHD[Size]: 40
× 40 × 20mm[Rated]: DC12V[Voltage
Range]: DC 7.0V - 14.0V [Input
Power]: 0.18A
(nominal current) [Rated speed]: 9000 r. p.
m[Temperature Range]: -10..
70 ° C[Life expectancy]: 25 ° C when the expected life of 40, 000 hours
L10[Bearing]: maintenance-
double ball bearing[Rotation]: Wind discharged from the stent, the face of the rotor counter-clockwise rotation[Wiring]: + Red - Black Blue Line Alarm[Maximum air volume]: 17.1 m3 / h[Motor
Protection]: wrong lock-level protection and stall current protection[Minimum air pressure]: 0..
105 Pa[Noise index]: 32.5 dB (A) [Material
Material]: Glass fiber reinced plastic, PBT housing, PA leaves, greencertification
