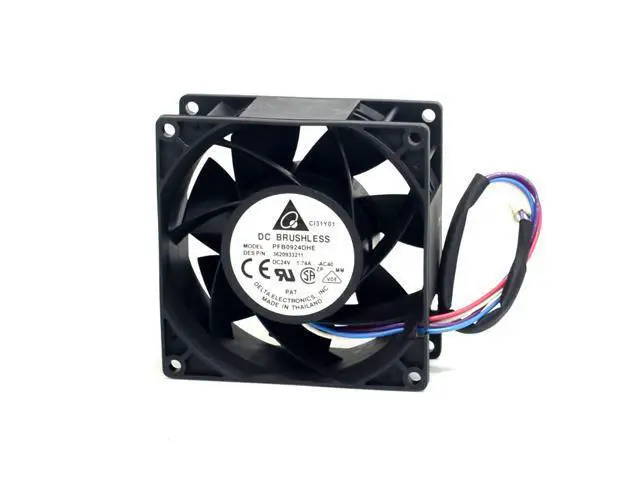

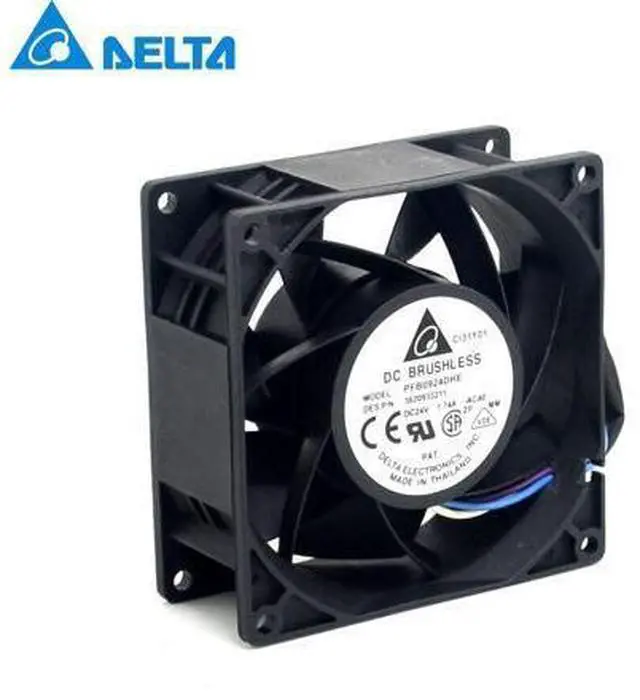

The PFB0924DHE 9cm 9038 24V 1.74A violent winds of the cooling fan Delta 90*90*38mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[ Product
Model ]: PFB0924DHE[
Dimensions ]: 92 × 92 × 38mm[
Rated voltage ]: DC24V[
Voltage Range ]: DC 12.0 - 26.5V [
Input Power ]: 34.8W [
Input Current ]: 1.74A [
Rated speed ]: 8000RPM[
Temperature Range ]: -25.. 60 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 40, 000 hours
L10[ Bearings]: Maintenance- double ball bearing[
Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: +
red - blue signals: white
speed control: Purple[
Maximum air volume ]: 297.4 m3 / h 175.03CFM [
Minimum pressure ]: 0...
192Pa[ Noise index ]: 66.5 dB[
Material Material ]: Glass fiber reinced plastic, PBT housing, PA leaves have environmental certification[
Function Description ]: E external rotor DC fans, complete electronic commutation components[
Certification ]: it can provide CE certification[
Weight ]: 250g
Model ]: PFB0924DHE[
Dimensions ]: 92 × 92 × 38mm[
Rated voltage ]: DC24V[
Voltage Range ]: DC 12.0 - 26.5V [
Input Power ]: 34.8W [
Input Current ]: 1.74A [
Rated speed ]: 8000RPM[
Temperature Range ]: -25.. 60 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 40, 000 hours
L10[ Bearings]: Maintenance- double ball bearing[
Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: +
red - blue signals: white
speed control: Purple[
Maximum air volume ]: 297.4 m3 / h 175.03CFM [
Minimum pressure ]: 0...
192Pa[ Noise index ]: 66.5 dB[
Material Material ]: Glass fiber reinced plastic, PBT housing, PA leaves have environmental certification[
Function Description ]: E external rotor DC fans, complete electronic commutation components[
Certification ]: it can provide CE certification[
Weight ]: 250g
