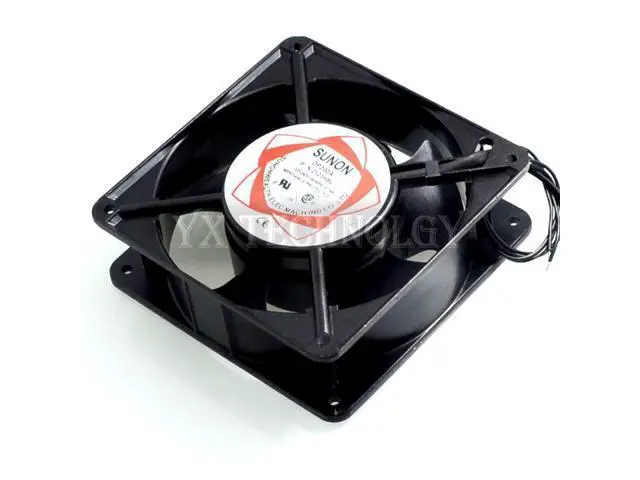

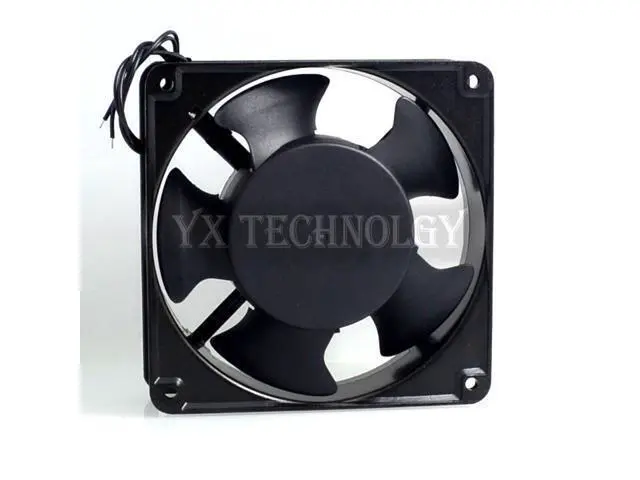

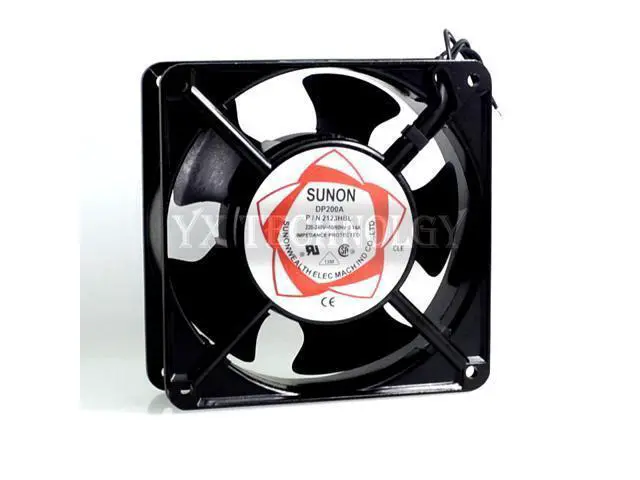

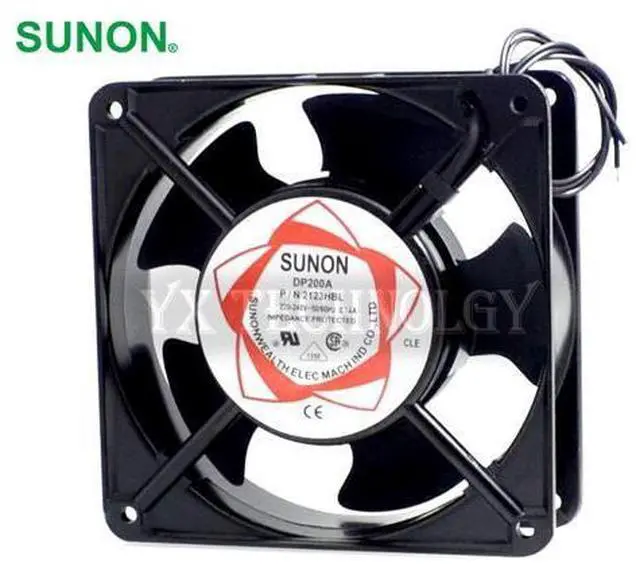

Sunon DP200A P/N 2123HBL 2123HSL 2123XBL 2123XSL 12038 120*120*38MM 12CM cooling fan

Model: DP200A P / N 2123HBL
Dimensions: 120
* 120 * 38MMVoltage:
220VCurrent: 0.14AB
earings: BALL
Model: DP200A P / N 2123HSL
Dimensions: 120
* 120 * 38MMVoltage:
220VCurrent: 0.14AB
earings: SLEEVE?
Size: 120x120x38MM?
Model: DP200A P /
N2123XBL? bearing structure:
B: BaLL (ball bearing)?
Voltage: 220 ~ 240V (AC)?
Frequency: 50/60 (Hz)?
Speed: 2700-3100 (R / min)?
Air volume: 2.68 / 3.25 (m3 / min)?
Noise: 43/46 (dB-A)?
Weight: 550
(g)? fan: injection molding, PBT + 30% glass + VO grade flame retardant;?
Bearing: the use of high precision, long life and low noise imported ball bearings;?
Insulation: enameled wire with B-class insulation, temperature 120 degrees Celsius;?
Wiring method: lead type (line length 25CM)
Insulation resistance: 500 megohm above;? withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V / 1 minute;?
Operating voltage: 110V
(voltage range: 85V ~ 125V)?
Operating voltage: 220V
(voltage range: 185V ~ 245V)? fan rotation: counterclockwise from the direction of the fan;?
Ambient temperature (°): - 40 ° ~ 70 °
B: (ball
bearing)? life: working environment temperature 40 °
B: (ball bearing) 60000 (hours)?
Size: 120x120x38MM?
Model: DP200A P/N 2123XSL? bearing structure:
S: Sleeve (Oil bearing)?
Voltage: 220~240V (AC)?
Power: 29/31 (W)?
Frequency: 50/60 (Hz)?
Speed: 2700-3100 (R / min)?
Air volume: 2.68 / 3.25 (m3 / min)?
Noise: 43/46 (dB-A)?
Weight: 550
(g)? fan: injection molding, PBT + 30% glass + VO grade flame retardant;?
Bearing: Low noise imported oil bearing;?
Insulation: enameled wire with B-class insulation, temperature 120 degrees Celsius;?
Wiring method: lead type (line length 25CM)
Insulation resistance: 500 megohm above;? withstand voltage: leakage current 0.5 mA. Withstand voltage 1500V / 1 minute;?
Operating voltage: 110V
(voltage range: 85V~125V)?
Operating voltage: 220V
(voltage range: 185V~245V)
? fan rotation: counterclockwise from the direction of the fan;?
Ambient temperature (°): - 20 °~ 50 °
B: (oil
bearing)? life: working environment temperature 40 °
B: (oil bearing) 30000 (hours)
