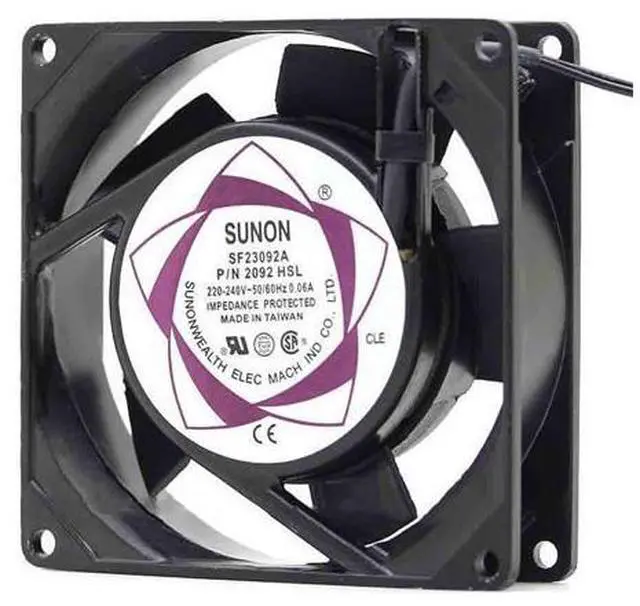

SF23092A 2092HSL 9225 220V cooling AC fan chassis 92mm 13W 36CFM 37Db
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fan detail parameters:
model: SF23092A P/N2092HSL
Bearing structure: double
ballVoltage: AC
220 ~ 240Vsize: 92*92*25mm
Frequency: 50/60 (Hz)
Power: 13/11 (W)
Speed: 2250/2750
(R/min)Air volume: 29/36CFM
Noise: 32/37
(dB-A)Weight: 270
(g) packing: No separate packing box, ordinary cardboard boxes of 50 /1 fcl;
Frame: Black paint Aluminum Alloy casting anticorrosion and anti wet structure;
Wind leaf: Injection molding, PBT+30% glass line +VO flame retardant;
Insulation: The enamel covered wire is insulated by B, and the temperature is 120 degrees centigrade;
Insulation resistance: Above 500 mb;
Voltage resistance: Leakage current 1500V/1 resistance voltage 0.5 mA.
minutes;
Operating voltage: 220V
(voltage range: 185V
~ 245V)Use environmentTemperature (C): - 50 DEG C.
model: SF23092A P/N2092HSL
Bearing structure: double
ballVoltage: AC
220 ~ 240Vsize: 92*92*25mm
Frequency: 50/60 (Hz)
Power: 13/11 (W)
Speed: 2250/2750
(R/min)Air volume: 29/36CFM
Noise: 32/37
(dB-A)Weight: 270
(g) packing: No separate packing box, ordinary cardboard boxes of 50 /1 fcl;
Frame: Black paint Aluminum Alloy casting anticorrosion and anti wet structure;
Wind leaf: Injection molding, PBT+30% glass line +VO flame retardant;
Insulation: The enamel covered wire is insulated by B, and the temperature is 120 degrees centigrade;
Insulation resistance: Above 500 mb;
Voltage resistance: Leakage current 1500V/1 resistance voltage 0.5 mA.
minutes;
Operating voltage: 220V
(voltage range: 185V
~ 245V)Use environmentTemperature (C): - 50 DEG C.
