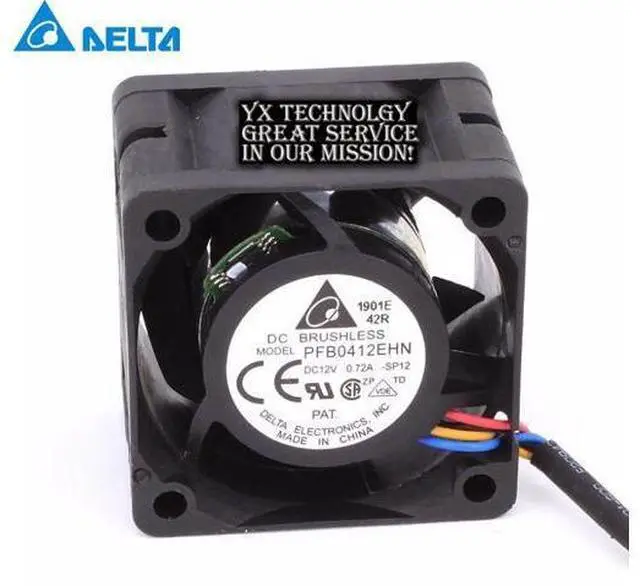

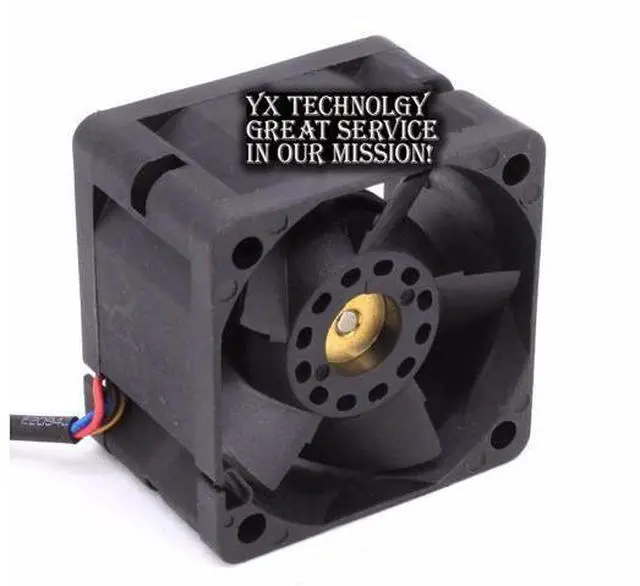

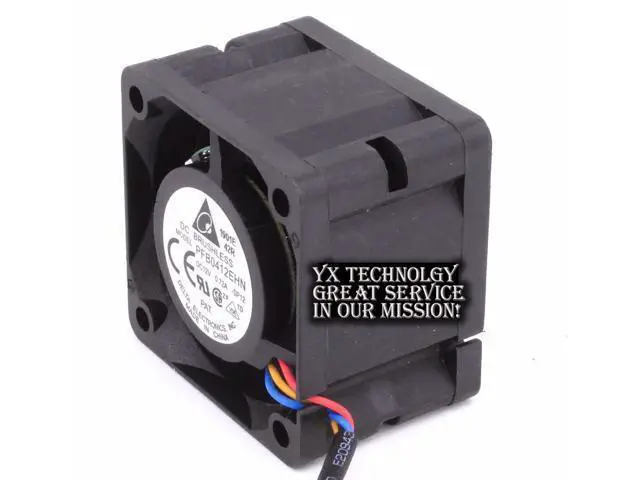

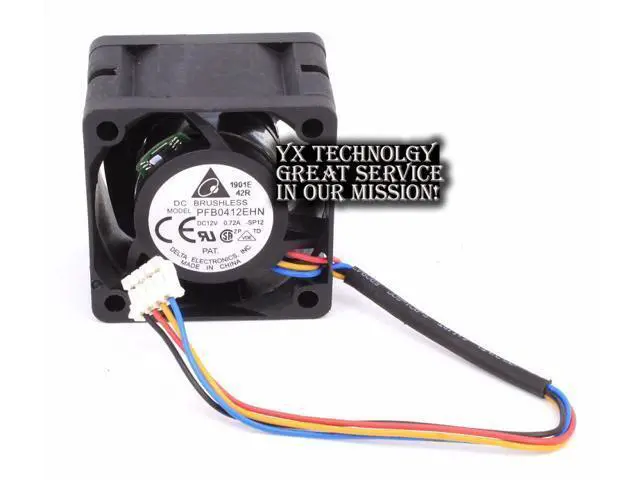

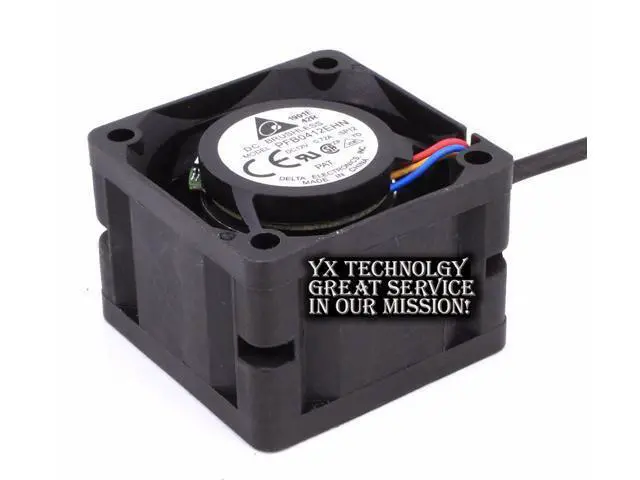

Delta 4028 4CM PFB0412EHN 12V0.72A hyper-violent double ball bearing fan
Limited time offer, ends 07/26 By CircuitNest
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1U server fan
PFB0412EHN-SP12Air volume fan violence[Brfand]: Delta[Fan
model]:
PFB0412EHN-SP12[Dimension]:
40x40x28mm[Rated]:
DC12V[Range]: DC
7.0V - 13.6V [Power]: 0.72
[Speed]: 16000 r. p.
m[Temperature range]: -10...
70 °C[Life expectancy]: 25 ° c L10 life expectancy of 50, 000
hours[Bearing]: maintenance- double ball bearing[Direction of rotation]: air discharged from the bracket, facing
the rotor counterclockwise[Connection]: +
Red-Black signal: Blue
(blue line speed yellow: PWM speed control) cord length 11 cm[Maximum air volume]:
22CFM[Protection]: overload protection, fault-protected and locked-rotor locks flow protection[Noise indicators]: 54.5
dB (a) [Material material]: glass-fibre reinced plastic, PBT housings, PA
leaves[Function]: electronically commutated external rotor DC fan, full commutation electronic parts
PFB0412EHN-SP12Air volume fan violence[Brfand]: Delta[Fan
model]:
PFB0412EHN-SP12[Dimension]:
40x40x28mm[Rated]:
DC12V[Range]: DC
7.0V - 13.6V [Power]: 0.72
[Speed]: 16000 r. p.
m[Temperature range]: -10...
70 °C[Life expectancy]: 25 ° c L10 life expectancy of 50, 000
hours[Bearing]: maintenance- double ball bearing[Direction of rotation]: air discharged from the bracket, facing
the rotor counterclockwise[Connection]: +
Red-Black signal: Blue
(blue line speed yellow: PWM speed control) cord length 11 cm[Maximum air volume]:
22CFM[Protection]: overload protection, fault-protected and locked-rotor locks flow protection[Noise indicators]: 54.5
dB (a) [Material material]: glass-fibre reinced plastic, PBT housings, PA
leaves[Function]: electronically commutated external rotor DC fan, full commutation electronic parts
