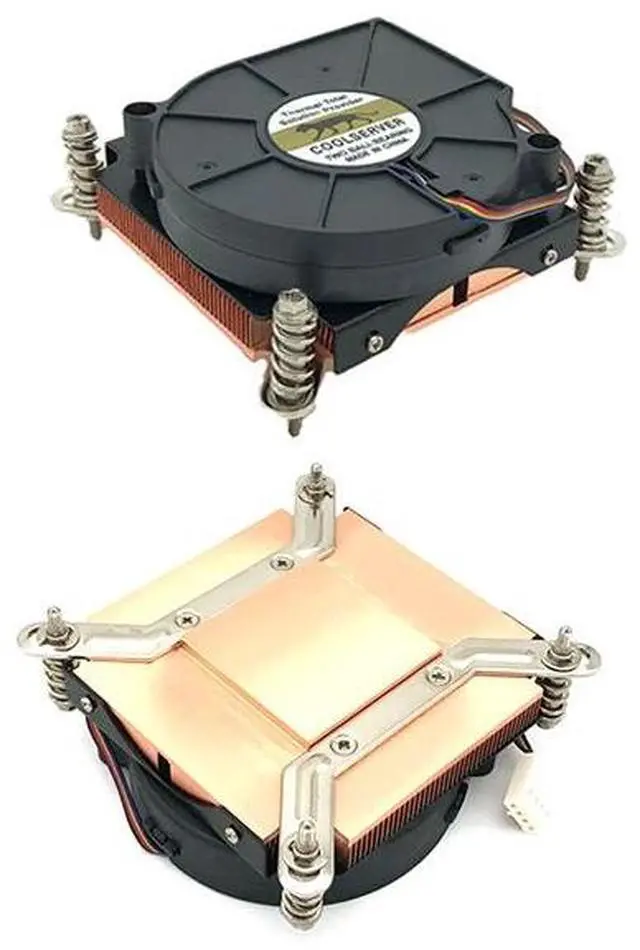

1U3CC 1700 85W 1U Server CPU Cooler, Full Copper Base + Fins, 70mm Blower PWM Fan 5000RPM, 29mm Height for Intel LGA1700 1U Server
- Product Model: 1U Intel LGA1700 1U-3CC
- CPU Compatibility: Intel LGA1700
- Heatsink Dimensions: 80(L) × 80.5(W) × 29(H) mm
- CPU TDP: 85W
- Fan Dimensions: 70 × 70 × 15 mm (Blower/Turbofan)
- Fan Voltage: 12V
- Fan Current: 0.55A
- Fan Power: 0.6W
- Fan Bearing: Dual ball bearing
- Fan Connector: 4-pin PWM fan header on motherboard
- Pin Definition: Black = GND (), Red = +12V, Yellow = Tachometer (Sensor), Blue = PWM Control
- Fan Speed: 20005000 RPM ±10%
- Fan Airflow: 10.37 CFM
- Fan Static Pressure: 17.41 mm-HO
- Fan Noise: 54.8 dBA
- Fan Lifespan: 50,000 hours
- Fin Thickness: 0.3 mm
- Fin Pitch: 1.5 mm
- Mounting Hole Spacing: 78 × 78 mm M3
- Heatsink Material: All copper
- Net Weight: 340g
- Application: 1U industrial/server chassis
- Note: Non-silent fan (high noise level)
- Accessories Included: Steel backplate + Thermal grease
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: 1U Intel LGA1700 1U-3CC
CPU Compatibility: Intel LGA1700
Heatsink Dimensions: 80(L) × 80.5(W) × 29(H) mm
CPU TDP: 85W
Fan Dimensions: 70 × 70 × 15 mm (Blower/Turbofan)
Fan Voltage: 12V
Fan Current: 0.55A
Fan Power: 0.6W
Fan Bearing: Dual ball bearing
Fan Connector: 4-pin PWM fan header on motherboard
Pin Definition: Black = GND (), Red = +12V, Yellow = Tachometer (Sensor), Blue = PWM Control
Fan Speed: 20005000 RPM ±10%
Fan Airflow: 10.37 CFM
Fan Static Pressure: 17.41 mm-HO
Fan Noise: 54.8 dBA
Fan Lifespan: 50,000 hours
Fin Thickness: 0.3 mm
Fin Pitch: 1.5 mm
Mounting Hole Spacing: 78 × 78 mm M3
Heatsink Material: All copper
Net Weight: 340g
Application: 1U industrial/server chassis
Note: Non-silent fan (high noise level)
Accessories Included: Steel backplate + Thermal grease
