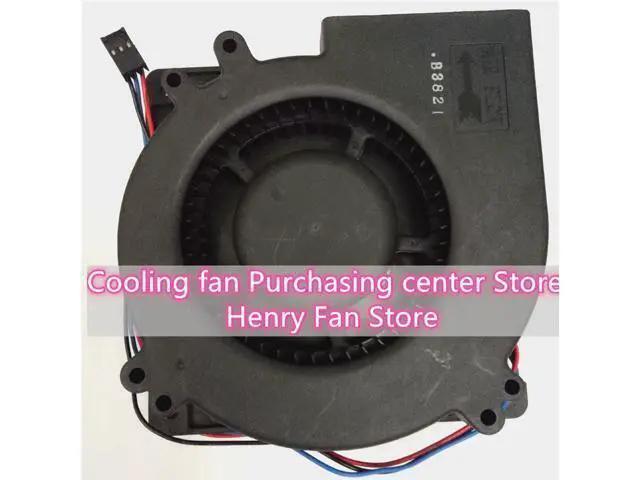

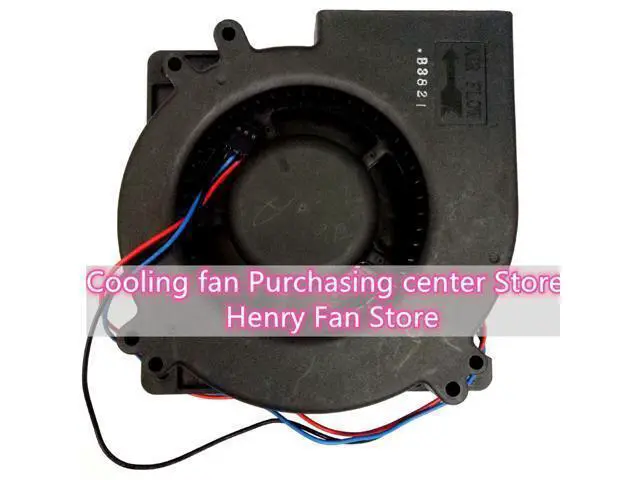

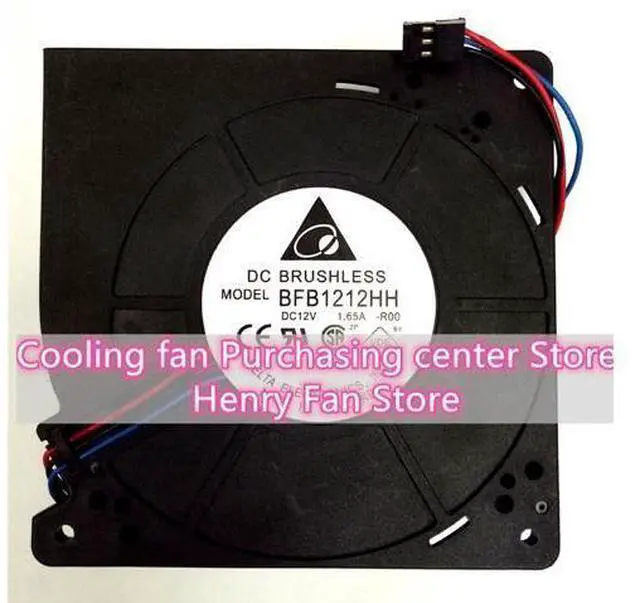

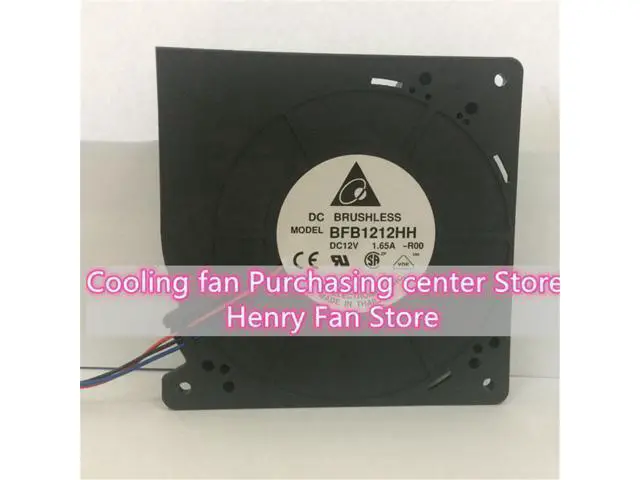

Original Delta BFB1212HH-R00 12V 1.65A 12032 Turbo Blower 12CM Large Air Volume Fan
- product information; Standard packaging 42; Category Fans, Thermal Management; Product Family DC Fan; Series BFB; Other names 603-1384; BFB1212HH-R00; specification; Voltage-Rated 12VDC; Size / Dimensions Square-120mm long x 120mm high; Width 32.00mm; Airflow 32.5 CFM (0.920m³ / min); Static pressure 1.063 inches of water column (264.8 Pa); Bearing type Ball; Fan type Blower; Characteristics Speed sensor (tachometer); Noise 54 dB (A); Power (W) 13.20W; RPM 2800 RPM; Terminate 3 leads; Intrusion prevention-; Operating temperature 14 ~ 140 ° F (-10 ~ 60 ° C); Approval CE, CSA, UL, VDE; Weight 0.507 lbs (229.97g); Rated current 1.1A; Voltage range 4 ~ 13.8VDC; Material-Frame Plastic; Material-Blade Plastic; Lifetime at different temperatures 50000 hours at 40 ° C; AFB0824SH-SM37AFB0524VHDPFB1248EHE-R00PFB1224UHE-SM16(S)PFB1224GHEARL(S)PFB1248EHE-R00PFB1224EHE-SP34PFB1224EHE-SP34FFB1224SHE-BR00FFB1224EHE-BR00FFB1224SHE-BR00FFB1224SHE-BR00FFB1224SHE-8F40FFB1224EH-SE06PFB1224EHE-SE15GFB1248DW-SE01(S)AFB1224SHEA02(S)AFB1224EHEA01(S)AHB1748VHG-TZQ1(S)KFB2548HHU-SMKFB2548HHU-SMEFB0412VHDEFB0412MDEFB0412HDAFB0412HHBAFB0412MBAFB0412VHB-SE14EFB0412VHDFFB0412SHN-SP86AFB0424VHB-SM06AFB0424SHB-SM05FFB0412SHN-SM27AFB0412SHB-SM15AFB0412VHA-AA4P(S)AFB0412HHBAFB0512HHBEFB0512HAAFB0512MBAFB0512HDAFB0512HBAFB0512HHB-6J23AFB0512VHDAFB0524HHB-R00AFB0512VHD-SE24AFB0512VHDA4Q(S)AFB0612HH-BR00EFB0612HAAFB0612EHDAFB0612EHDAFB0612HHBAFB0612H-SM53AFB0612EH-SE44FFB0624EHE-SP34FFB0624HHE-R00(S)AFB0612GH...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
product information Standard packaging 42 Category Fans, Thermal Management Product Family DC Fan Series BFB Other names 603-1384 BFB1212HH-R00 specification Voltage-Rated 12VDC Size / Dimensions Square-120mm long x 120mm high Width 32.00 mm Airflow 32.5 CFM ( 0.920 m³ / min) Static pressure 1.063 inches of water column ( 264.8 Pa) Bearing type Ball Fan type Blower Characteristics Speed sensor (tachometer) Noise 54 dB (A) Power (W) 13.20W RPM 2800 RPM Terminate 3 leads Intrusion prevention- Operating temperature 14 ~ 140 ° F (-10 ~ 60 ° C) Approval CE, CSA, UL, VDE Weight 0.507 lbs ( 229.97 g) Rated current 1.1A Voltage range 4 ~ 13.8VDC Material-Frame Plastic Material-Blade Plastic Lifetime at different temperatures 50000 hours at 40 ° C AFB0824SH-SM37AFB0524VHDPFB1248EHE-R00PFB1224UHE-SM16 (S) PFB1224GHEARL (S) PFB1248EHE-R00PFB1224EHE-SP34PFB1224EHE-SP34FFB1224SHE-BR00FFB1224EHE-BR00FFB1224SHE-BR00FFB1224SHE-BR00FFB1224SHE-8F40FFB1224EH-SE06PFB1224EHE-SE15GFB1248DW-SE01 (S) AFB1224SHEA02 (S) AFB1224EHEA01 (S) AHB1748VHG-TZQ1 (S) KFB2548HHU-SMKFB2548HHU-SMEFB0412VHDEFB0412MDEFB0412HDAFB0412HHBAFB0412MBAFB0412VHB-SE14EFB0412VHDFFB0412SHN-SP86AFB0424VHB-SM06AFB0424SHB-SM05FFB0412SHN-SM27AFB0412SHB-SM15AFB0412VHA-AA4P (S) AFB0412HHBAFB0512HHBEFB0512HAAFB0512MBAFB0512HDAFB0512HBAFB0512HHB-6J23AFB0512VHDAFB0524HHB-R00AFB0512VHD-SE24AFB0512VHDA4Q (S) AFB0612HH-BR00EFB0612HAAFB0612EHDAFB0612EHDAFB0612HHBAFB0612H-SM53AFB0612EH-SE44FFB0624EHE-SP34FFB0624HHE-R00 (S) AFB0612GHA5D (S) AFB0612UH-SP64AFC0712DD-SE00AFB0724VH-SM11AFB0812SH-BAFB0812VH-BEFB0812EH-BR00(135/80)AFB0812SH-B (65) FFB0824EHE-BR00EFB0812EHFAFB0812VHBFFB0812SH-R00FFB0824EHE-SE09FFB0824SHE-SE07AFB0824SH-SM18EFB0812EH-SM02AFB0812SH-SE65FFB0824EHE-SM04AFB0824SHBAFB0824EHEA01 (S) AFB0824SH-SE44 (S) FFB0824SHE-SE06 (S) FFB0824EHE739 (S) EFB0924HHE-BR00FFB0924EHE-BR00PFB0948GHE-R00PFB0948EHE-R00FFB0924SHEFFB0924EHE-SM11FFB0924EHE-SM10FFB0924EHE-SM11PFB0924GHE-SP34FFB0924EHE-SM11FFB0924EHE-SM10AFB0924SH-SE83FFB0924EHE-SM11 (S) AFB0924SH-AA5C (S)
