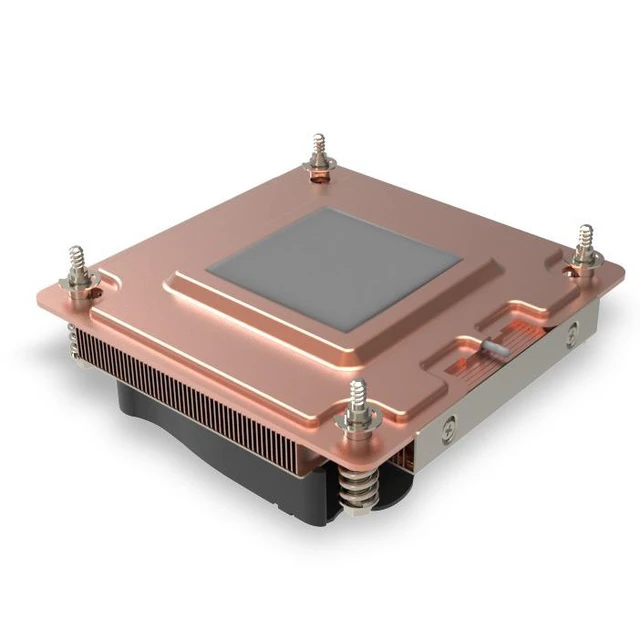

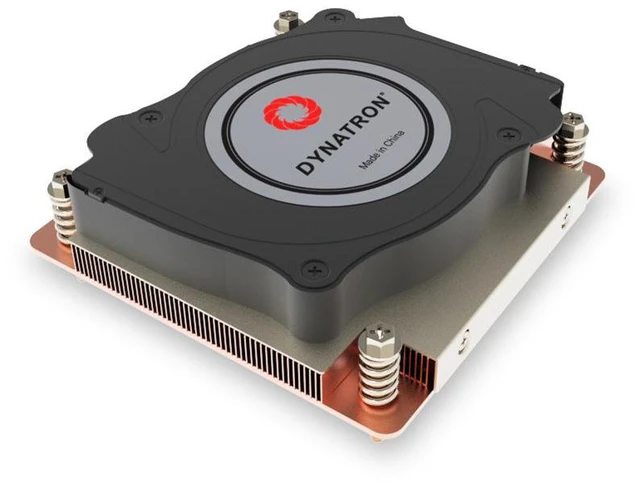

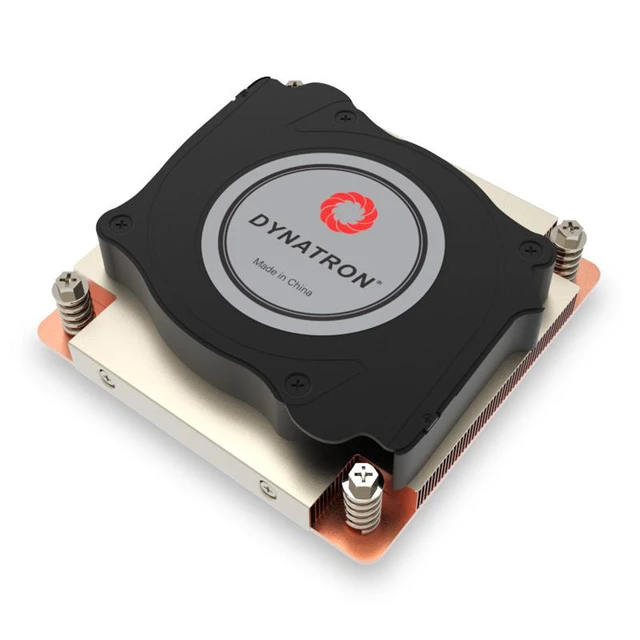

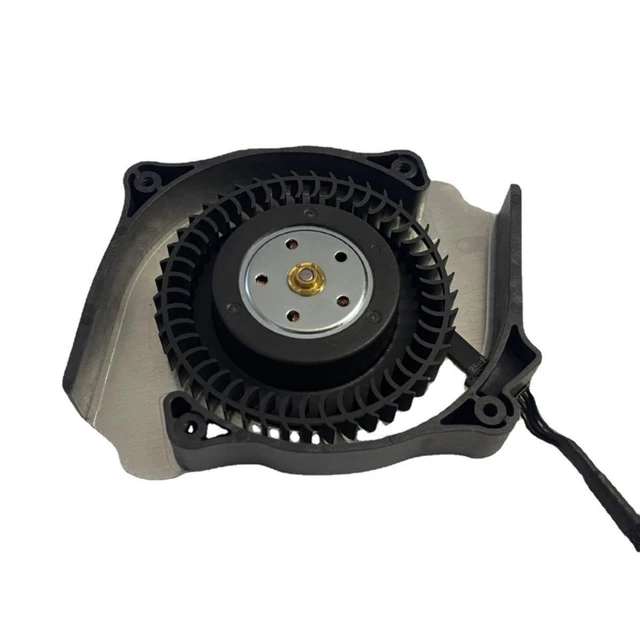

Q7 1U Active CPU Cooler for LGA1700 Copper Vapor Chamber, 150W TDP, PWM Blower Fan

Item Description

1. Rated Voltage DC 12 V

2. Operating Voltage 10.8V ~ 13.2V

3. PWM Frequency 25kHz

Duty Cycle D = 020% D = 50% D = 100%

4. Start Voltage 7V

5. Air Flow (at rated voltage, zero static pressure) 0.18 m³/min (6.41 CFM) 0.43 m³/min (15.26 CFM) 0.735 m³/min (26.25 CFM)

6. Static Pressure (at rated voltage, zero air flow) 3.69 mm-HO (0.145 in-HO) 25.28 mm-HO (0.992 in-HO) 89.80 mm-HO (3.53 in-HO)

7. Input Current (Max.) 0.09A 0.5A 2.2A

8. Speed 2000 RPM ± 200 4900 RPM ± 10% 8700 RPM ± 10%

9. Acoustical Noise 23.3 dBA 43.5 dBA 62.2 dBA

10. Input Power 1.08W 4.7W 26.4W

11. Insulation Resistance 10 M min. at DC 500V (between frame and terminal)

12. Dielectric Strength 5 mA max. @ AC 500V, 60Hz, 1 min. (between frame and terminal)

13. Life Expectancy 70,000 hours (continuous operation under normal temperature 40°C / 104°F)

14. Rotation Anticlockwise air discharged

15. Auto Restart Time 3 5 seconds

16. Lead Wires UL 1061, AWG 26 or equivalent -: Black; +: Black; S: Black; PWM: Black
