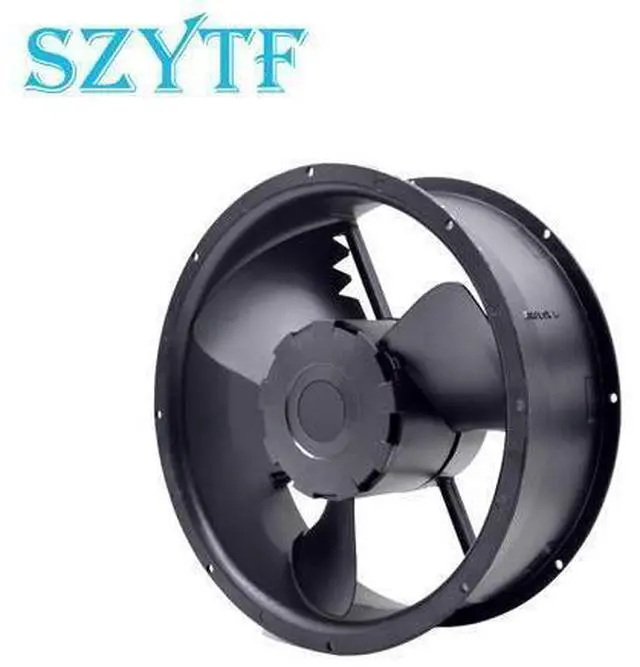

AC fan CLE3T2 020191 254x254x89 mm 25.4cm fan AC 220V cooling fan
- CLE3T2-020191 AC230V254*89MM all-aluminum box AC fanSize: 254x89mmBearing structure: B:BALL (ball bearing)Voltage:AC/220~240V AC AC230VPower: 72 (w)Frequency: 50/60 (Hz)Speed: 2700 (R/min)Air flow: 20 (M3/min)Noise: 72 (dB-A)Frame: black painted aluminum alloy die-casting anticorrosion. moisture-proof structure;Blades: injection molding, +VO grade flame retardant PBT+30% glass line;Bearings: high accuracy. long life low noise ball bearings;Insulation: enameled wire with class b insulation, temperature-resistant to 120 degrees Celsius;Connection mode: lead-.-InsertInsulation resistance: more than 500 mohm;Withstanding voltage: leakage current 0.5mA. withstanding voltage 1500V/1 minutes;Operating voltage: 220V (voltage range: 185V~245V)Fan rotation direction: from the fan blade direction to counterclockwise;Operating temperature (°):-20 °~75 ° b: (ball bearing)Life: working ambient temperature of 40 ° b: (ball bearing) 80000 (hours)Long life and continuous 24 hour working long hours.2553
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
CLE3T2-020191 AC230V254*89MM all-aluminum box
AC fanSize: 254x89mmBearing
structure:
B: BALL (ball bearing)
Voltage: AC/220~240V
AC AC230VPower: 72 (w)
Frequency: 50/60 (Hz)
Speed: 2700
(R/min)Air flow: 20
(M3/min)Noise: 72
(dB-A)Frame: black painted aluminum alloy die-casting anticorrosion.
moisture-proof structure;
Blades: injection molding, +VO grade flame retardant PBT+30% glass line;
Bearings: high accuracy. long life low noise ball bearings;
Insulation: enameled wire with class b insulation, temperature-resistant to 120 degrees Celsius;
Connection mode: lead-.
-InsertInsulation resistance: more than 500 mohm;
Withstanding voltage: leakage current 0.5 mA. withstanding voltage 1500V/1 minutes;
Operating voltage: 220V
(voltage range: 185V~245V)Fan
rotation direction: from the fan blade direction to counterclockwise;
Operating temperature (°): -20
°~75 ° b: (ball bearing)
Life: working ambient temperature of 40 ° b: (ball bearing) 80000 (hours) Long life and continuous 24 hour working long hours. 2553
AC fanSize: 254x89mmBearing
structure:
B: BALL (ball bearing)
Voltage: AC/220~240V
AC AC230VPower: 72 (w)
Frequency: 50/60 (Hz)
Speed: 2700
(R/min)Air flow: 20
(M3/min)Noise: 72
(dB-A)Frame: black painted aluminum alloy die-casting anticorrosion.
moisture-proof structure;
Blades: injection molding, +VO grade flame retardant PBT+30% glass line;
Bearings: high accuracy. long life low noise ball bearings;
Insulation: enameled wire with class b insulation, temperature-resistant to 120 degrees Celsius;
Connection mode: lead-.
-InsertInsulation resistance: more than 500 mohm;
Withstanding voltage: leakage current 0.5 mA. withstanding voltage 1500V/1 minutes;
Operating voltage: 220V
(voltage range: 185V~245V)Fan
rotation direction: from the fan blade direction to counterclockwise;
Operating temperature (°): -20
°~75 ° b: (ball bearing)
Life: working ambient temperature of 40 ° b: (ball bearing) 80000 (hours) Long life and continuous 24 hour working long hours. 2553
