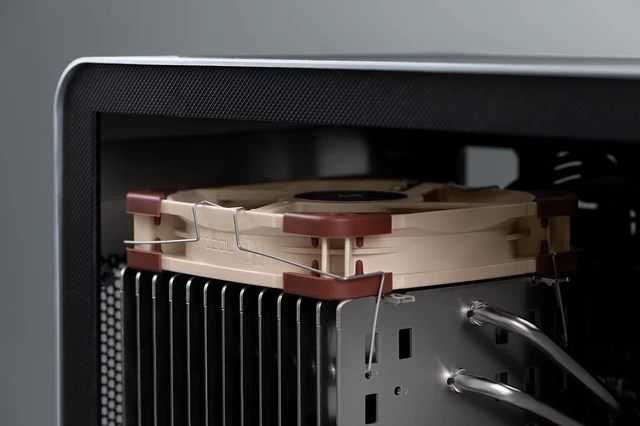

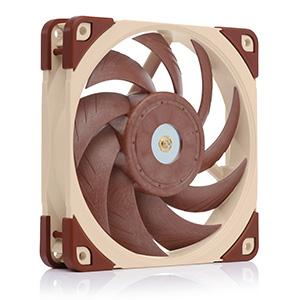

Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s flagship model NF-A12x25 has established itself as a true deluxe choice when it comes to premium-quality quiet 120mm fans. Various state-of-the-art technologies and a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer material, allow it to achieve superb results in all types of usage: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators, the NF-A12x25 is a proven winner. The 4-pin LS-PWM version is a low-speed, PWM-enabled variant that is ideal for semi-passive setups or ultra-low-noise applications that require near-silent acoustics and PWM based speed control. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing and a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

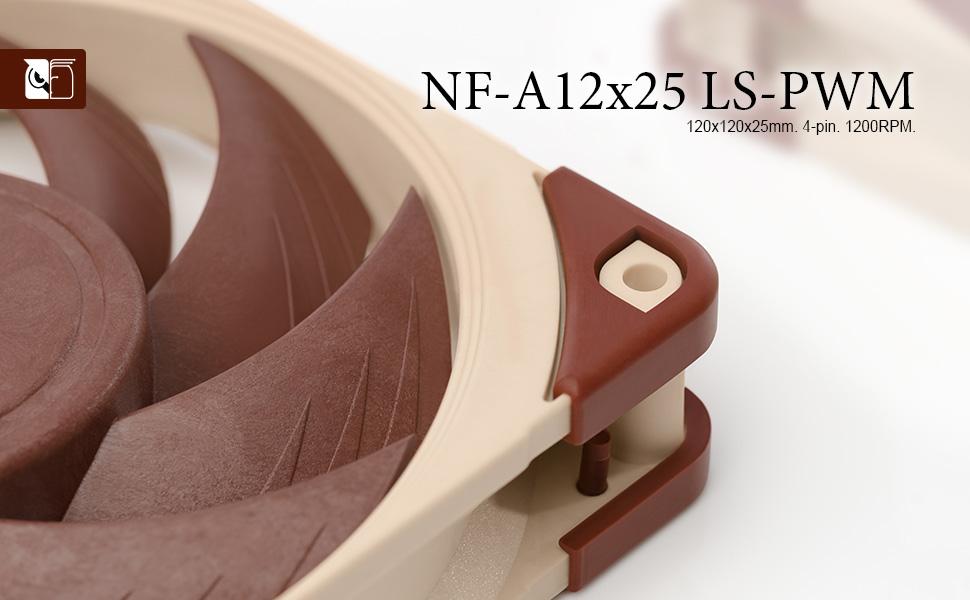

Ultra-quiet low-speed version with PWM
Producing only 12.1 dB(A) at its 1200rpm maximum speed and 7.6 dB(A) with the included Low-Noise-Adaptor, the LS-PWM version is ideal for serious silent-enthusiasts: An ultra-quiet low-speed fan that supports PWM control for advanced acoustic fine-tuning!
Sterrox liquid-crystal polymer compound
The NF-A12x25’s impeller is made from Noctua’s novel Sterrox liquid-crystal polymer compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics: ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
Ultra-tight tip clearance
The NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
Metal-reinforced motor hub
The centrepiece of the NF-A12x25’s motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area.

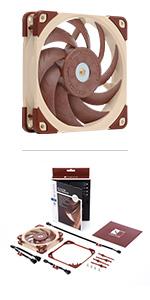

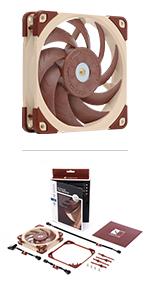

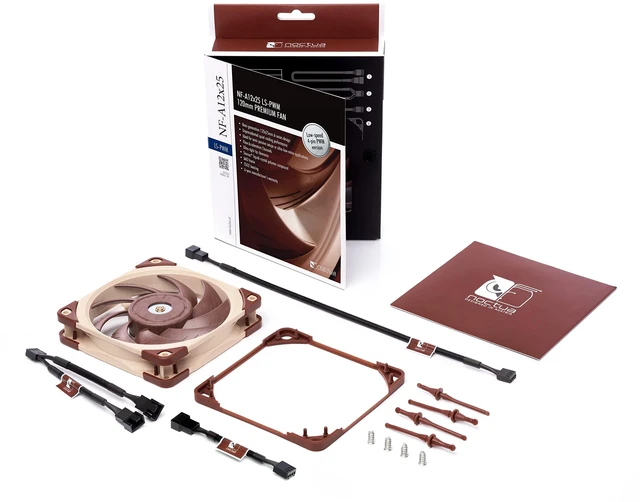

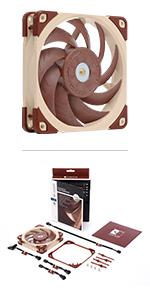

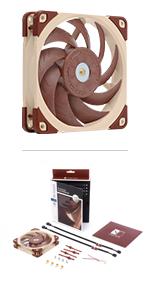

Scope of delivery
- NA-RC8 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws

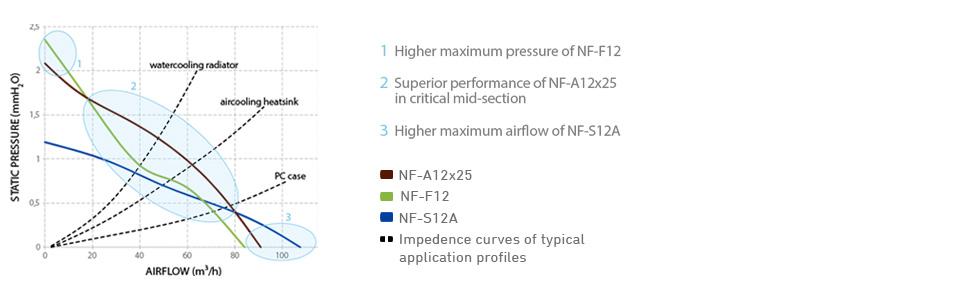

Highly optimised P/Q curve for all applications
The NF-A12x25’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 offers excellent performance in both static pressure demanding and airflow demanding applications.
 NF-A12x25 PWM |  NF-A12x25 LS-PWM |  NF-A12x25 FLX |  NF-A12x25 ULN |  NF-A12x25 5V PWM |  NF-A12x25 5V | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Voltage | 12 V | 12 V | 12 V | 12 V | 5 V | 5 V |
| Connector | 4-pin PWM | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM | 3-pin |
| RPM | Max: 2000 / Min: 450 | Max: 1200 / Min: 450 | 2000 | 1200 | Max: 1900 / Min: 450 | 1900 |
| RPM with L.N.A. | 1700 | 900 | 1700 | 900 | - no data | - no data |
| RPM with U.L.N.A. | - no data | - no data | 1350 | - no data | - no data | - no data |
| Acoustical Noise | 22,6 dB(A) | 12,1 dB(A) | 22,6 dB(A) | 12,1 dB(A) | 21,4 dB(A) | 21,4 dB(A) |
| Acoustical Noise with L.N.A. | 18,8 dB(A) | 7,6 dB(A) | 18,8 dB(A) | 7,6 dB(A) | - no data | - no data |
| Acoustical Noise with U.L.N.A. | - no data | - no data | 14,2 dB(A) | - no data | - no data | - no data |
| Size | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige |
Noctua Cooling Solutions
Noctua's premium cooling components are internationally renowned for their superb quietness, exceptional performance and quality.
Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s flagship model NF-A12x25 has established itself as a true deluxe choice when it comes to premium-quality quiet 120mm fans. Various state-of-the-art technologies and a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer material, allow it to achieve superb results in all types of usage: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators, the NF-A12x25 is a proven winner. The 4-pin LS-PWM version is a low-speed, PWM-enabled variant that is ideal for semi-passive setups or ultra-low-noise applications that require near-silent acoustics and PWM based speed control. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing and a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Ultra-quiet low-speed version with PWM
Producing only 12.1 dB(A) at its 1200rpm maximum speed and 7.6 dB(A) with the included Low-Noise-Adaptor, the LS-PWM version is ideal for serious silent-enthusiasts: An ultra-quiet low-speed fan that supports PWM control for advanced acoustic fine-tuning!
Sterrox liquid-crystal polymer compound
The NF-A12x25’s impeller is made from Noctua’s novel Sterrox liquid-crystal polymer compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics: ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
Ultra-tight tip clearance
The NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
Metal-reinforced motor hub
The centrepiece of the NF-A12x25’s motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area.
Scope of delivery
- NA-RC8 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws
Highly optimised P/Q curve for all applications
The NF-A12x25’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 offers excellent performance in both static pressure demanding and airflow demanding applications.
NF-A12x25 PWM | NF-A12x25 LS-PWM | NF-A12x25 FLX | NF-A12x25 ULN | NF-A12x25 5V PWM | NF-A12x25 5V | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Voltage | 12 V | 12 V | 12 V | 12 V | 5 V | 5 V |
| Connector | 4-pin PWM | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM | 3-pin |
| RPM | Max: 2000 / Min: 450 | Max: 1200 / Min: 450 | 2000 | 1200 | Max: 1900 / Min: 450 | 1900 |
| RPM with L.N.A. | 1700 | 900 | 1700 | 900 | - no data | - no data |
| RPM with U.L.N.A. | - no data | - no data | 1350 | - no data | - no data | - no data |
| Acoustical Noise | 22,6 dB(A) | 12,1 dB(A) | 22,6 dB(A) | 12,1 dB(A) | 21,4 dB(A) | 21,4 dB(A) |
| Acoustical Noise with L.N.A. | 18,8 dB(A) | 7,6 dB(A) | 18,8 dB(A) | 7,6 dB(A) | - no data | - no data |
| Acoustical Noise with U.L.N.A. | - no data | - no data | 14,2 dB(A) | - no data | - no data | - no data |
| Size | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige |
