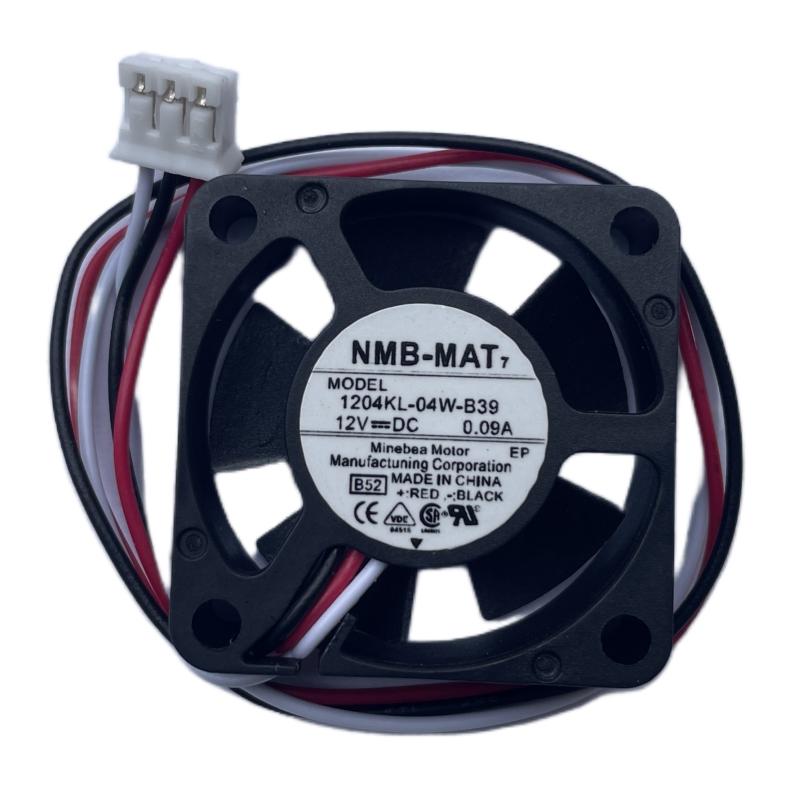

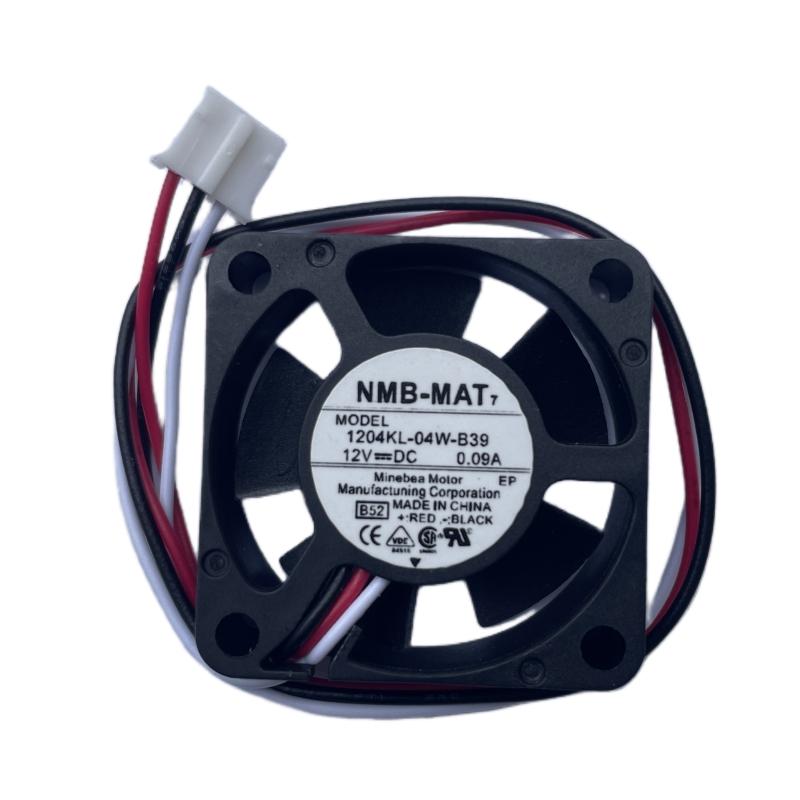

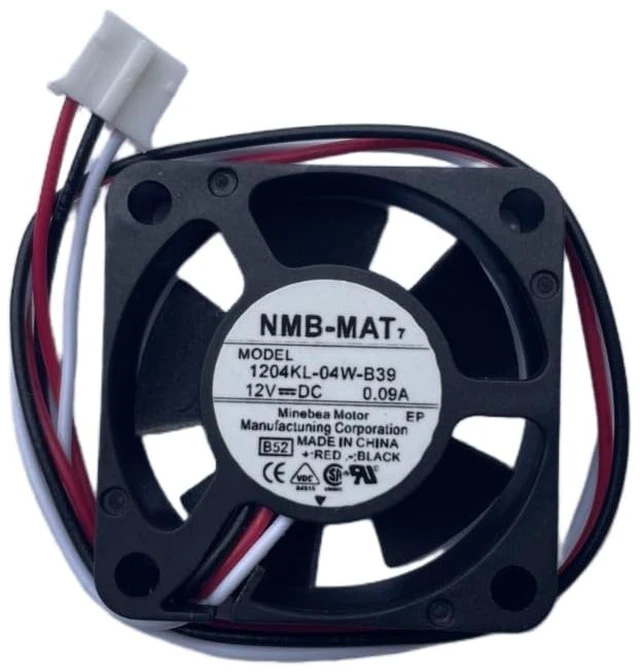

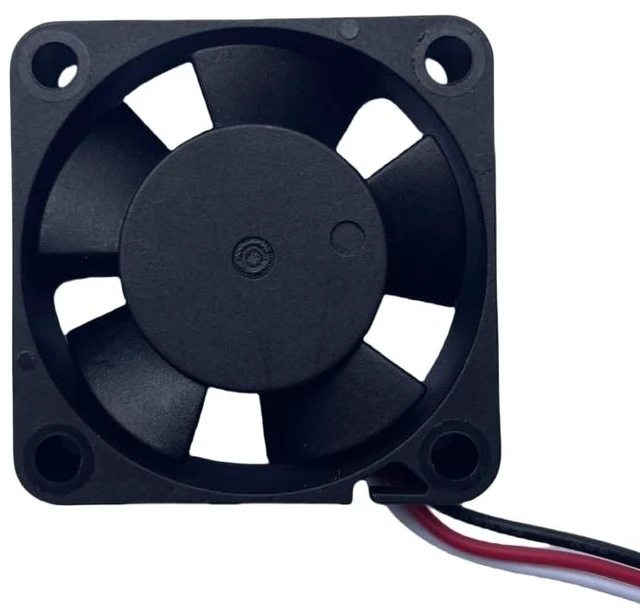

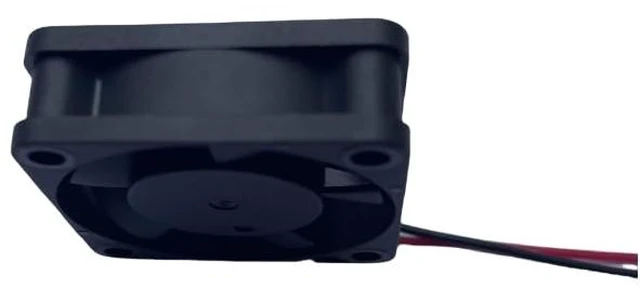

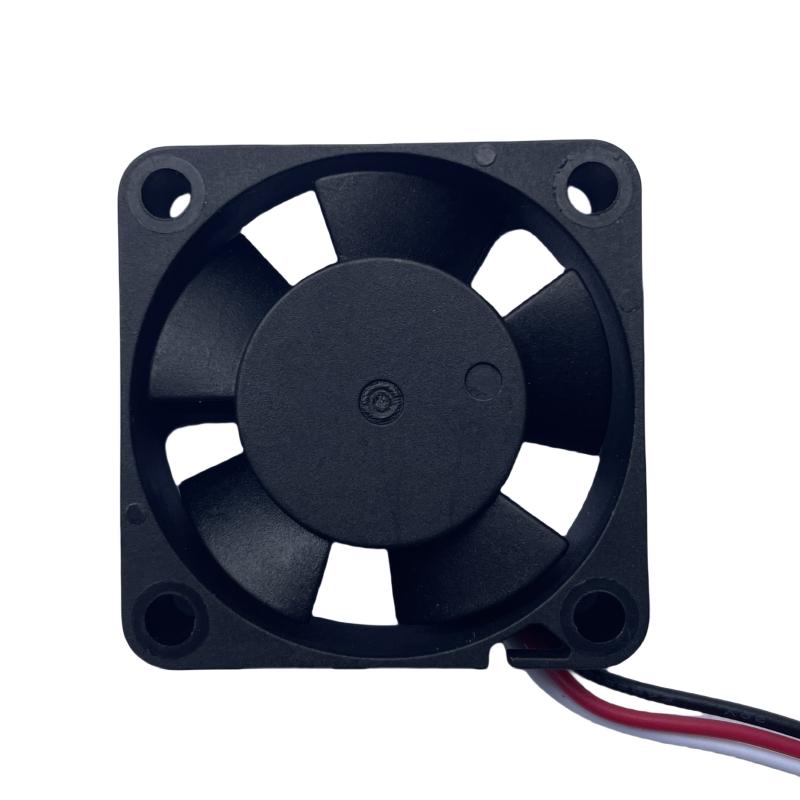

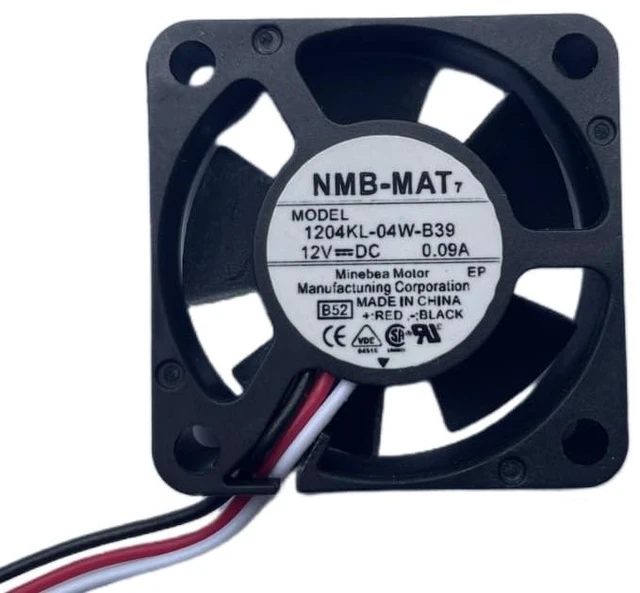

New for 1204KL-04W-B39 12V 0.09A 3CM 3010 3-Wire Cooling Fan

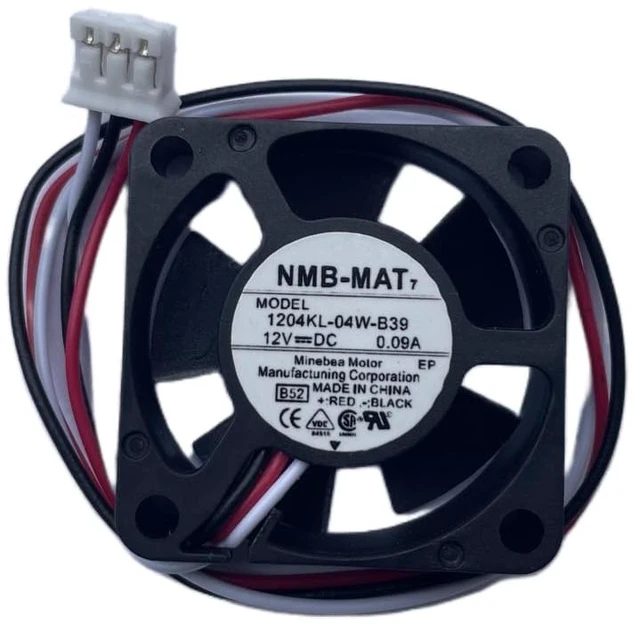

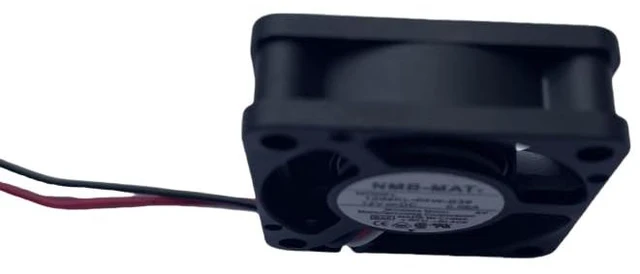

QJGTDS 1204KL-04W-B39 3010 Cooling Fan

This compact 3-wire cooling fan is designed for compatible electronics, equipment, and replacement applications requiring a 30 x 30 x 10 mm 3010 fan with a 12V 3-pin connection. Confirm the model number, dimensions, connector, and electrical specifications before ordering.

Specifications

• Model: 1204KL-04W-B39
• Fan size: 30 x 30 x 10 mm
• Rated voltage: 12V
• Rated current: 0.09A
• Power: 1.08W
• Power interface: 3-pin, 3-wire
• Blade quantity: 5
• Rated speed: 10,000 RPM
• Airflow: 0.1 m³/min, approximately 3.7 CFM
• Air pressure: 53 Pa
• Noise level: approximately 26 dB(A)
• Operating temperature: -30°C to 65°C
• Bearing: maintenance-free double ball bearing
• Expected life: 80,000 hours at 40°C
• Material: glass-fiber-reinforced PBT housing with PA blades
• Air direction: exhausts from the bracket and rotates clockwise toward the rotor

Please compare the product model, size, connector, voltage, current, and other parameters with your original fan or equipment before purchase. The item is tested for functionality before shipment. Contact the seller promptly if an order-related issue occurs.

Package Contents

1 x 1204KL-04W-B39 cooling fan.

Frequently Asked Questions

What size is this cooling fan?

The fan measures 30 x 30 x 10 mm and uses the compact 3010 format.

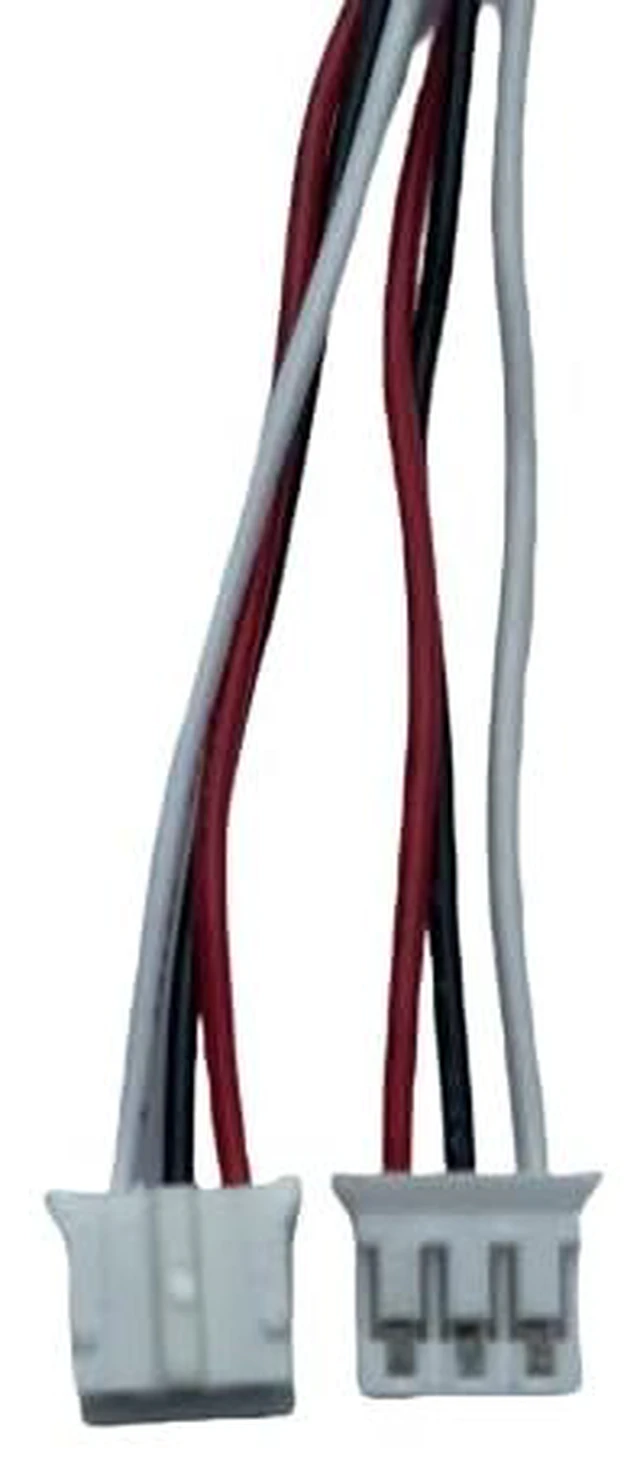

What connector does this fan use?

It uses a 3-wire, 3-pin power interface. Verify connector compatibility before ordering.

What are the rated voltage and current?

The fan is rated for 12V and 0.09A, with stated power of 1.08W.

How much airflow does it provide?

The listed airflow is 0.1 m³/min, approximately 3.7 CFM, with 53 Pa air pressure.
