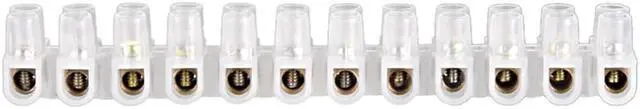

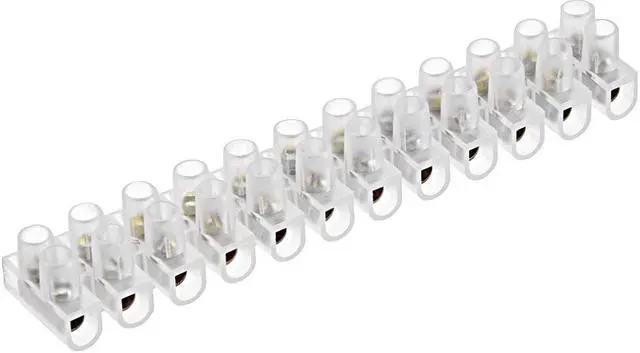

Terminal Block , 3A 12 Position Dual Row Type U Wire Connector Screw Terminal Barrier Strip , Pack of 1

Description:

• High elasticity, high temperature resistance, high pressure resistance and impact resistance.
• High conductivity, good insulation, strong acid and alkali resistance, and beautiful appearance. The conductive part is made of overheated brass, which has large torque and is not easily broken.
• Outside in the use of PE polyethylene protective plastic, transparent appearance, super toughness, extendability, not easy to oxidation, work well. The internal conductive part adopts brass firmware and fastening galvanized screw, the conductive performance is high, the insulation performance is good.
• Widely used in a variety of lamp, decorated lighting, factory, household appliances and power distribution cabinets, distribution boxes and other transmission equipment, specially point at wire, cable access and out.

KEY_TAB

Specification:

• Product Name: Terminal Block
• Type: 12 Postions, 2 Rows, Type U
• Rated Voltage/Current: 380V/3A
• Cable Entry Diameter: 3mm/0.12-inch

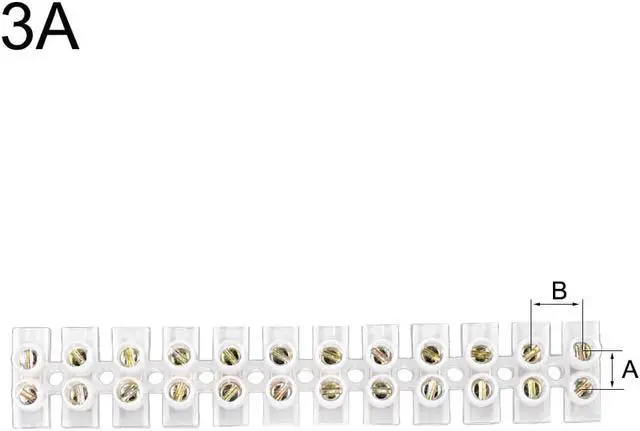

• Screw Middle Distance: A:6.5mm , B:9mm
• Total Size:91 x 15.5 x 12.5mm/3.58 x 0.61 x 0.49-inch(L*W*H)
• Insulating Material:PE ; Contact parts: Brass ; Screw: Iron(Zinc Plating-coloring)
• The screw is slot type screw.
• Color: White

KEY_TAB

Package Content:

1 x Terminal Block
