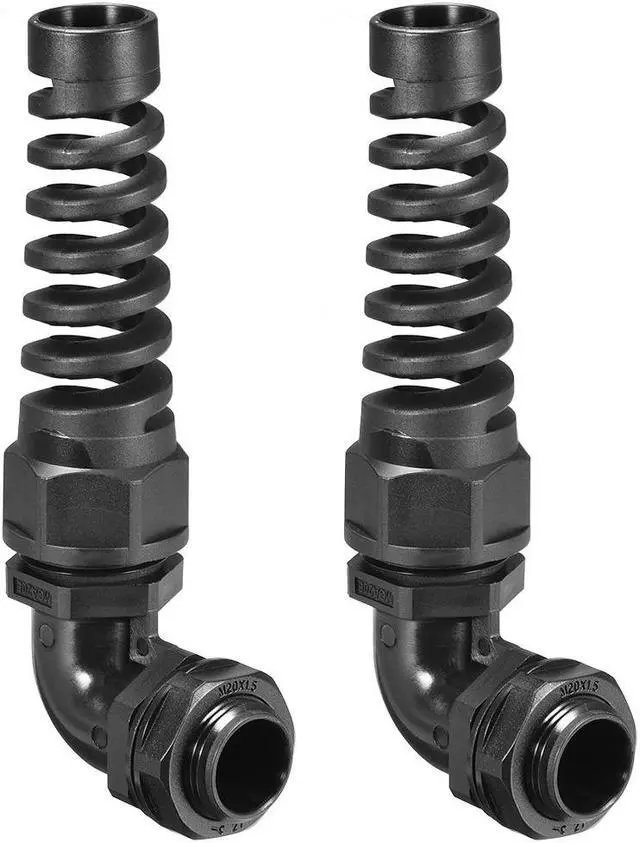

M20 Cable Gland 90 Degree Waterproof IP68 Nylon Joint Adjustable Locknut with Strain Relief for 9mm-14mm Dia Cable Wire , 2 Pcs
- Type: M20 with Strain Relief; Fit for Cable Diameter: 9mm - 14mm / 0.35" - 0.55".Thread Diameter: 20mm / 0.79"; Thread Length: 15mm/ 0.59".Made from nylon material; Waterproof rated up to IP68.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Complete With Locknut and Washer.
Waterproof rated up to IP68.
With Strain Relief to protect wire.
Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.
Easy to install, and help you clamping cable.
Ideal accessory for junction boxes etc or anything where inserting a cable could cause water to enter into live electrics, using the correct IP68 rated cable compression gland will ensure the item stays waterproof.
KEY_TAB
Work Environment:
1. Static state: -40C - +100C in static state, instantaneous heat resistance up to 120C.
2. Dynamic: -20C - +80C in static state, instantaneous heat resistance up to 100C.
KEY_TAB
KEY_TAB
Specifications:
Type: M20
Color: Black
Material: Nylon + Rubber
Fit for Cable Dia: 9mm - 14mm / 0.35" - 0.55"
Total Size: 109 x 58 x 30mm / 4.29 x 2.28 x 1.18inch(L*W*H)
Thread Diameter: 20mm / 0.79"
Thread Length: 15mm / 0.59"
Thread Pitch: 1.5
KEY_TAB
Packing Included:
2 Pcs x Cable Gland
