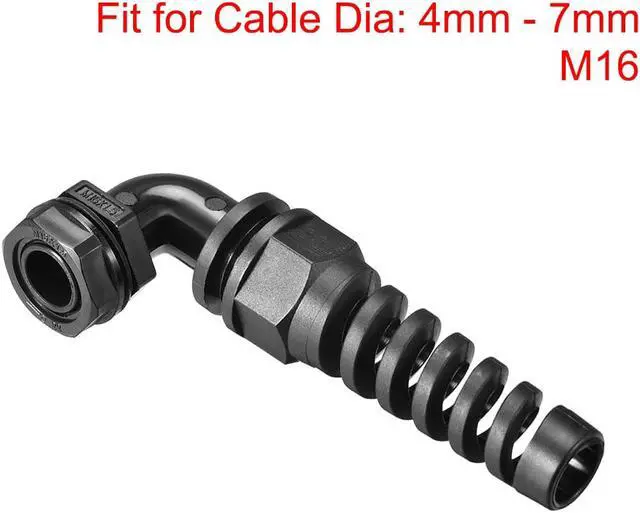

M16 Cable Gland 90 Degree Waterproof IP68 Nylon Joint Adjustable Locknut with Strain Relief for 4mm-7mm Dia Cable Wire , 2 Pcs
- Type: M16 with Strain Relief; Fit for Cable Diameter:4mm - 7mm / 0.16" - 0.28".Thread Diameter: 16mm / 0.63"; Thread Length: 10mm / 0.39".Made from nylon material; Waterproof rated up to IP68.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Complete With Locknut and Washer.
Waterproof rated up to IP68.
With Strain Relief to protect wire.
Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.
Easy to install, and help you clamping cable.
Ideal accessory for junction boxes etc or anything where inserting a cable could cause water to enter into live electrics, using the correct IP68 rated cable compression gland will ensure the item stays waterproof.
KEY_TAB
Work Environment:
1. Static state: -40C - +100C in static state, instantaneous heat resistance up to 120C.
2. Dynamic: -20C - +80C in static state, instantaneous heat resistance up to 100C.
KEY_TAB
KEY_TAB
Specifications:
Type: M16
Color: Black
Material: Nylon + Rubber
Fit for Cable Dia: 4mm - 7mm / 0.16" - 0.28"
Total Size: 109 x 45 x 26mm / 4.29 x 1.77 x 1.02inch(L*W*H)

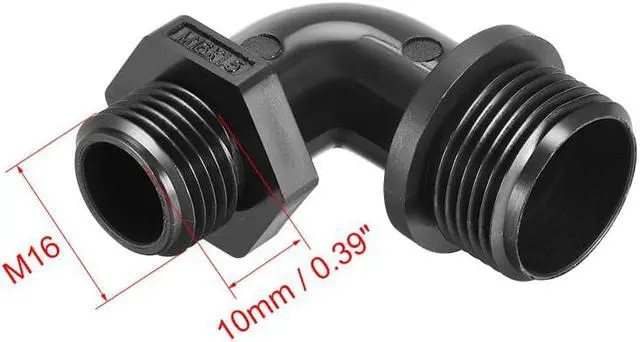

Thread Diameter: 16mm / 0.63"
Thread Length: 10mm / 0.39"
Thread Pitch: 1.5
KEY_TAB
Packing Included:

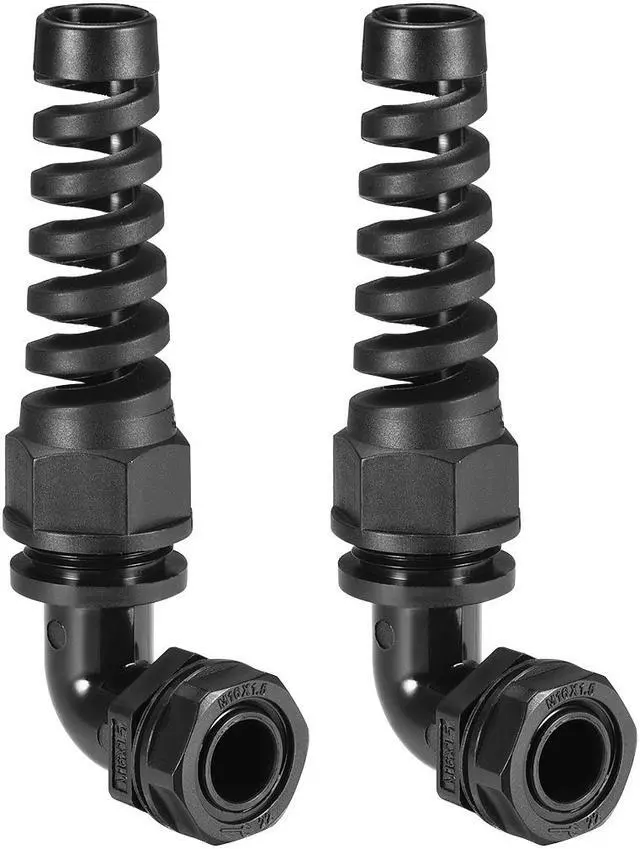

2 Pcs x Cable Gland
