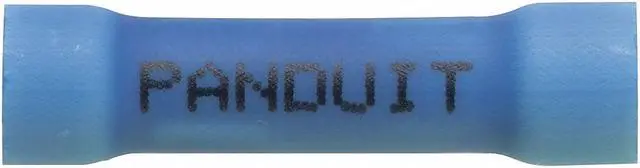

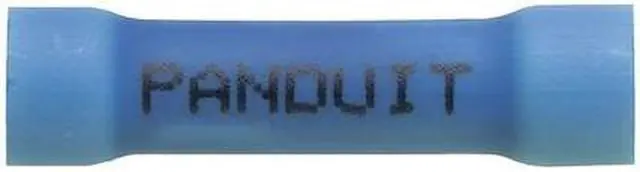

Panduit - BSV14X-M - Panduit BSV14X-M Butt Connector, Vinyl Insulated, 16 - 14 AWG, Blue, Pack of 1000

Panduit BSV14X-L Features: Expanded wire entry designed to accommodate wire with a larger insulation thickness Designed to splice two solid or stranded wires together to repair or lengthen wires Brazed seam protects terminal barrel from splitting during the crimp process Internal wire stop assures proper length of insertion into terminal barrel UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) UL and CSA rated up to 600 V per UL 486C This listing for Pack Qty 1000 , Color Blue Product Type Loose Piece Splices Style Butt Splice Wire Range In. (mm²) 16 - 14 AWG (1.5 - 2.5) Barrel Configuration Expanded Barrel Type Brazed Seam Base Material Copper Insulation Vinyl Panduit Color Code Blue Plating Type Tinned Part Number Series BSV Length In (mm) 1.04 (26.4) Max. Insulation Diameter In. (mm) 0.211 (5.4) Wire Strip Length In. (mm) 5/16 (7.9) Flammability Rating V0 Max. Voltage Rating 600V CA-800/EZ Series Crimp Die — CA9 Series Crimp Die — Tool CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 CSA Certified C22.2 No 65 UL Listed UL 486C Packaging Type Box Pieces Per Reel — CE Compliant No Material Vinyl Part Features • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Designed to splice two solid or stranded wires together to repair or lengthen wires • Internal wire stop assures proper length of insertion into terminal barrel RoHS Compliancy Status Compliant Min. Order Qty. 1,000.0000
