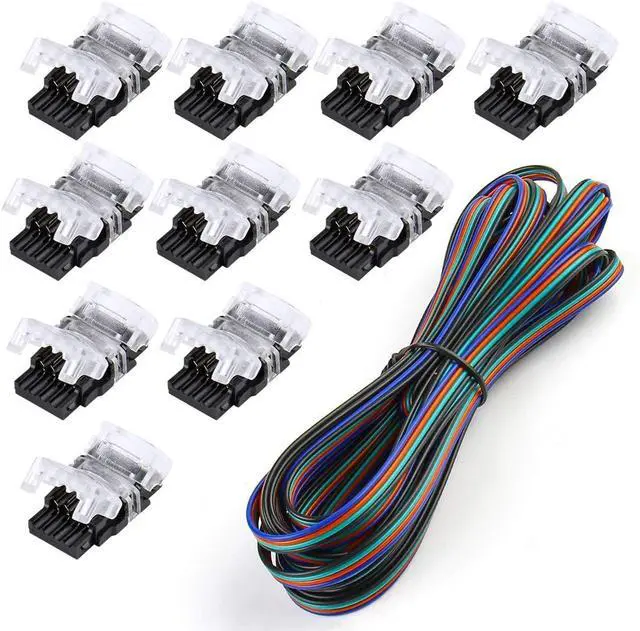

10 Pack 4 Pin LED Connector for Waterproof 10mm RGB 5050 LED Strip Lights, Strip to Wire Quick Connection Without Stripping, Include UL Listed 16.4ft 22 Gauge 4 Conductor Extension Cable

These NEWEST DESIGN strip to wire connectors are solution for waterproof 10mm 5050 5630 RGB LED light strip connection and extension needs, DIY extension for whatever the wire length you want to connect.

NOTE:

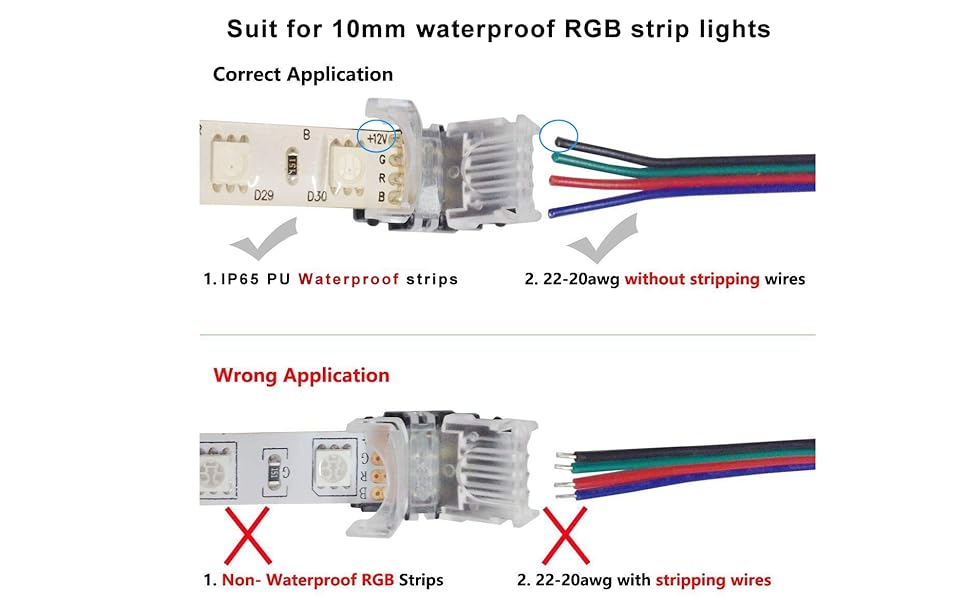

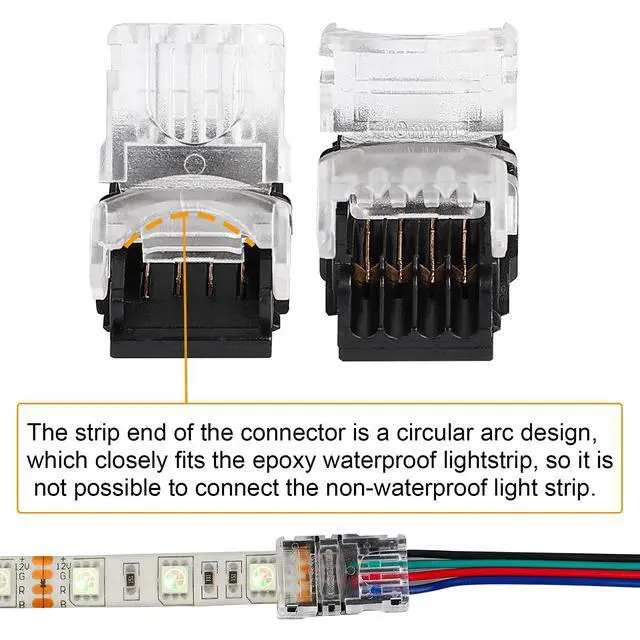

1. Make sure your LED light strip is 10mm width 4 pin IP65 WATERPROOF RGB strip light. Not work for non-waterproof or 8mm width led strip lights.
2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire.

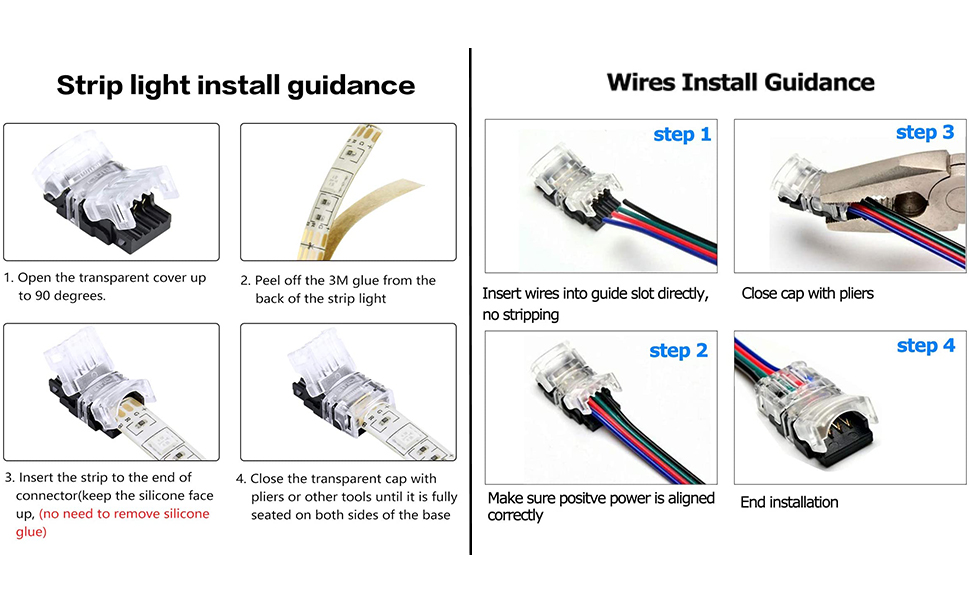

Installation Guides

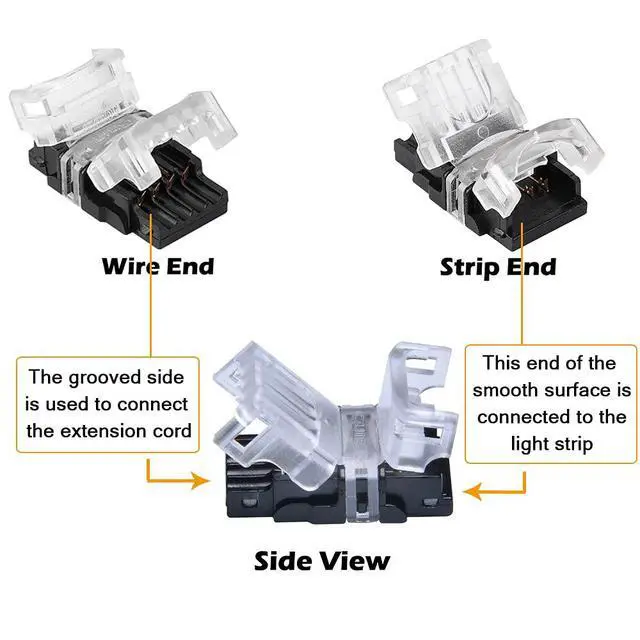

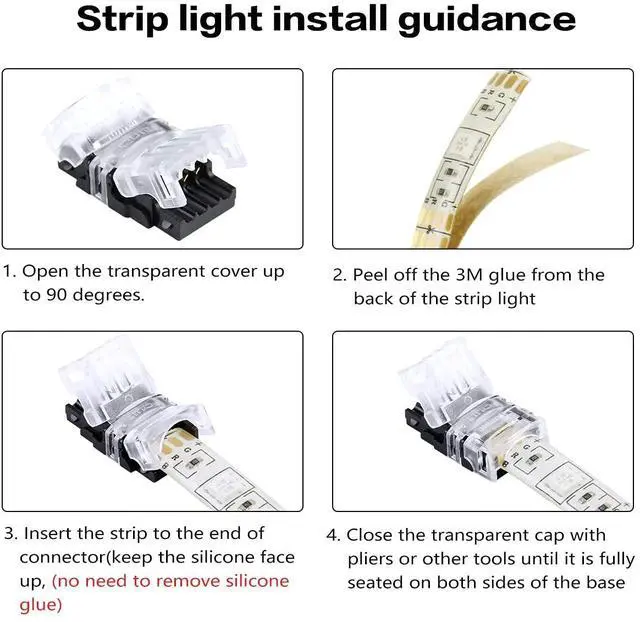

Strip End

1. Ensure your LED light strip is waterproof 10mm width and has 4 contacts (+, B, R, G). All contacts are clean and cut the strip straightly.
2. Open the transparent cover of connector up to 90 degrees.
3. Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the waterproof LED light strip into clasp side, with the 4 contacts of the LED strip sitting on the 4 pins of the clasp. (Note: No need to peel off the silicone on the surface of led strip around soldering line area)
4. Close the clasp down with force by pliers.

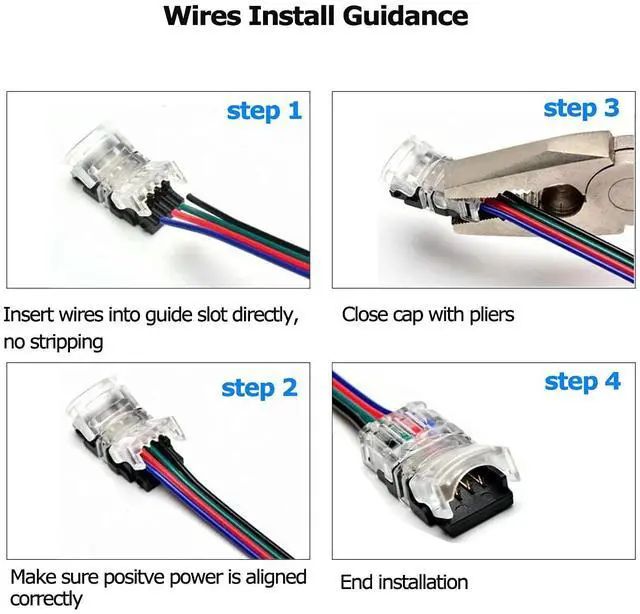

Wire End

1. Cut the desired wire length you need and separated the 4 wires (20-22AWG) around connection part.

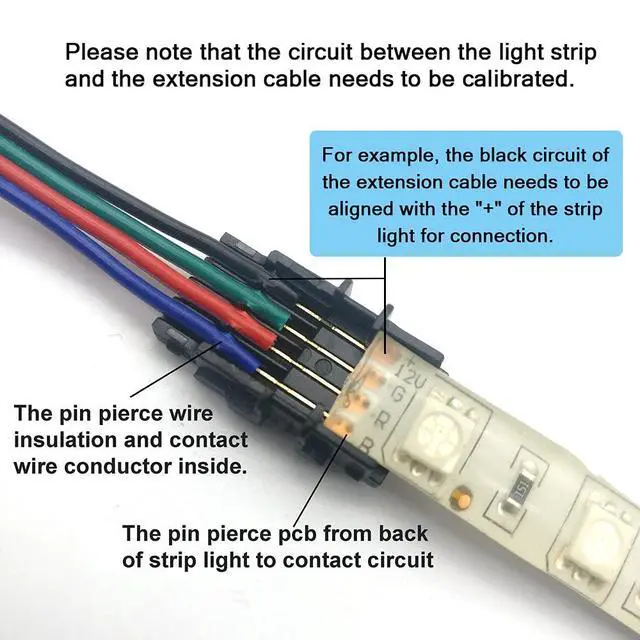

2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires.
3. Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)

Tools Need: A pliers

Package includes

• 10x Strip to Wire Connectors for 10mm Width Waterproof RGB LED Strip

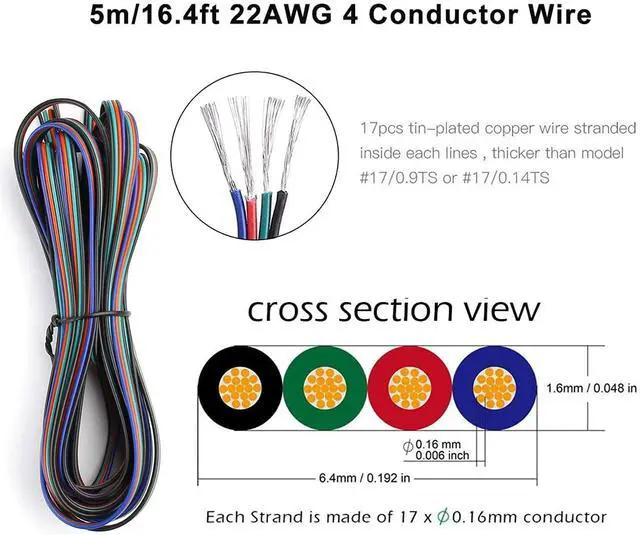

• 1x 16.4ft 22 Gauge 4 Conductor Extension Cable
