HOMELYLIFE since 2018.
We specialize in making light strip related accessories.
We have all kinds of light strip connectors with different functions, from 2pin to 5pin.
We make products that customers need, and there is must one that is suitable for you.
Welcome to following to our store, we will continue to update our products.
LED Strip Connector Kit

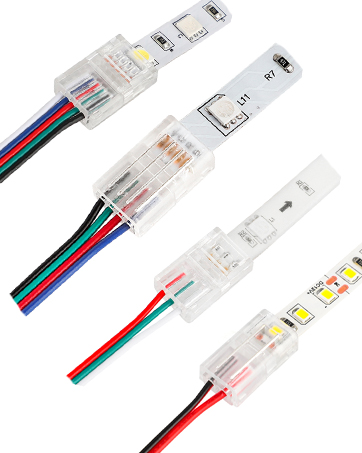

led strip connectors
Features
- Flexible installation
- No soldering required
- No wire stripping required
- Easy to use
- Application upgrade
- Input voltage: DC 5V/12V/24V
- What light strips are suitable for: non-waterproof light strips and glued waterproof light strips
- Material: Stranded tin copper wire and high quality PVC plastic
- Applicable strip width: 10mm wide
- Warm Tip: you can pry it open with a suitable screwdriver if accidentally cover the connector.

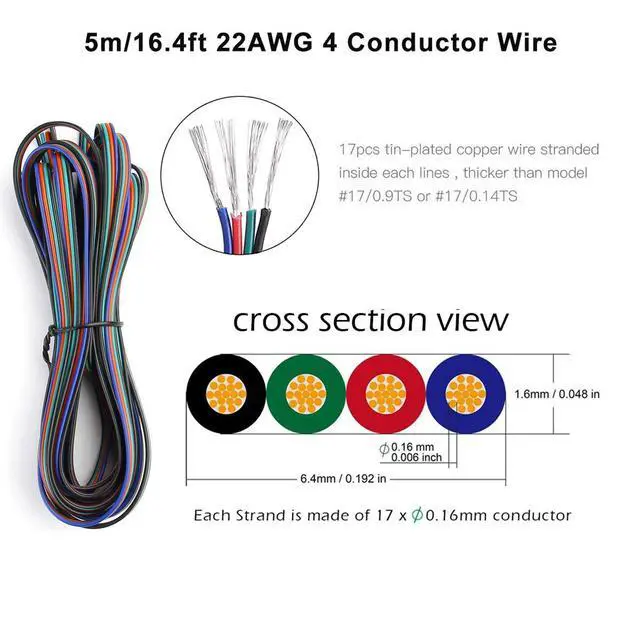

22AWG solid wire

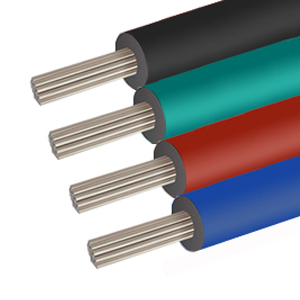

Extension cable contains 17 tinned copper stranded wires and high quality PVC plastic wire sleeve.
Small tool
Small tool can be used to pry open the strip end of the connector, which is more convenient.

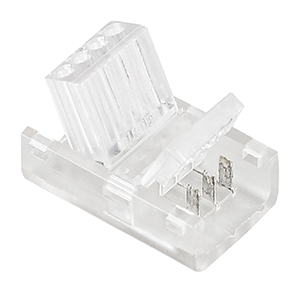

Upgraded connector

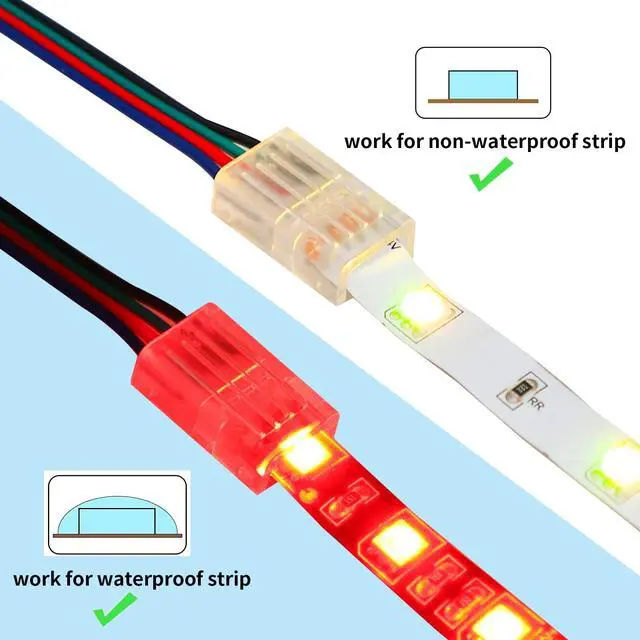

The upgraded connector does not distinguish between waterproof and non-waterproof light strips, both are suitable.
NOTE:

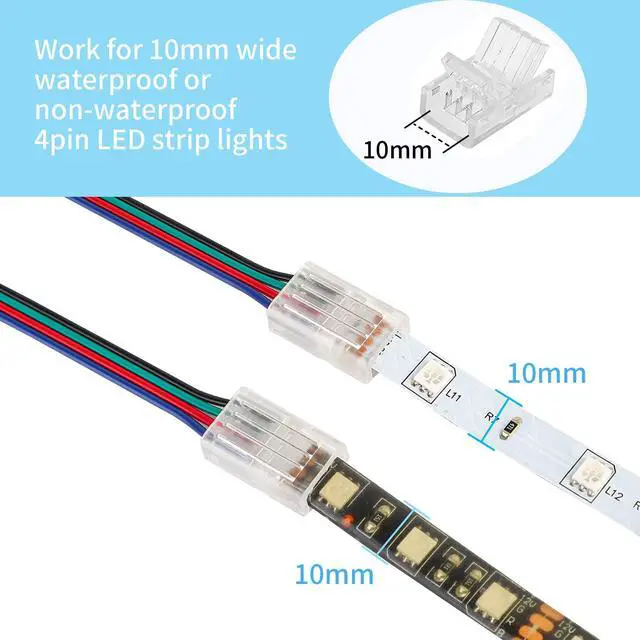

- Make sure your LED light strip is 10mm width 4 pin RGB strip light. It is work for waterproof and non-waterproof led strip lights.
- Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire.
Installation Guides

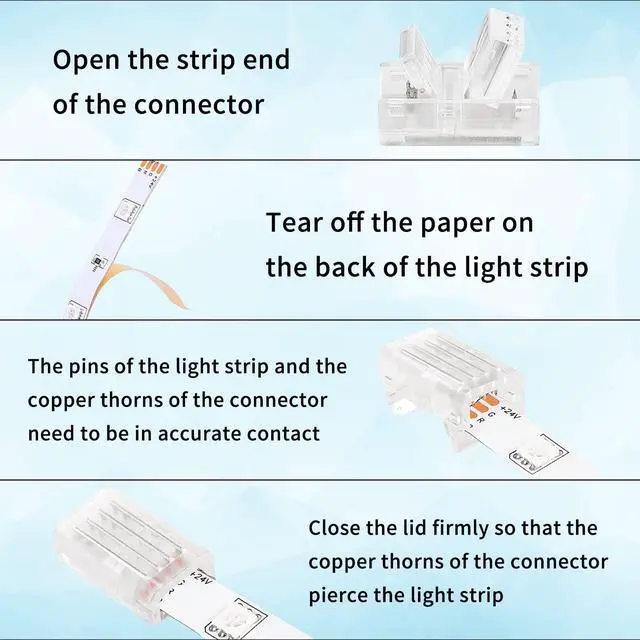

Strip End

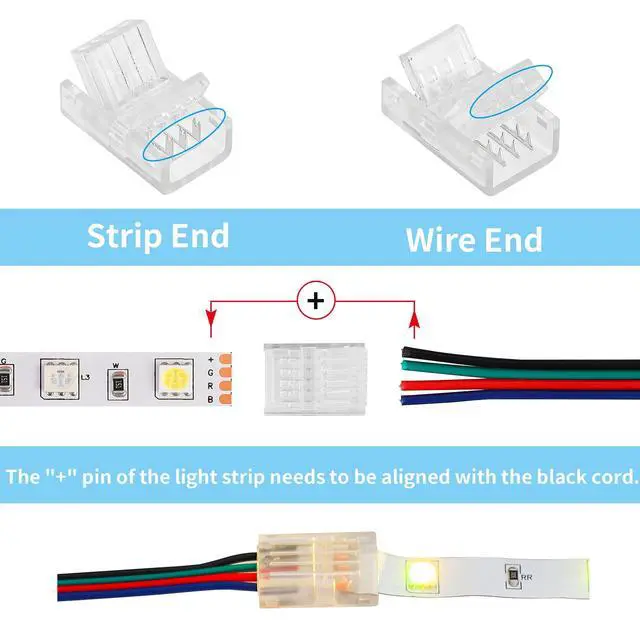

- Ensure your LED light strip is 10mm width and has 4 contacts (+, B, R, G). All contacts are clean and cut the strip straightly.
- Open the transparent cover of connector up to 45 degrees.
- Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the LED light strip into strip side, with the 4 contacts of the LED strip sitting on the 4 pins of the clasp.
- Close the clasp down with force by pliers.

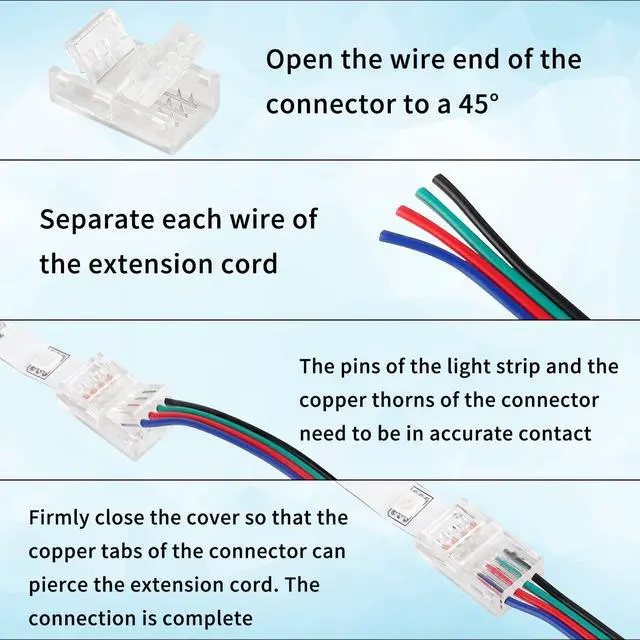

Wire End
- Cut the desired wire length you need and separated the 4 wires (20-22AWG) around connection part.
- Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires.
- Close the transparent cap with a pliers. To ensure a tight grip on the wire ends, our connectors and wires are designed with a snug fit. As a result, fastening them by hand can be quite strenuous and may require tools such as pliers to secure the clasp, until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)
Tools Need: A pliers

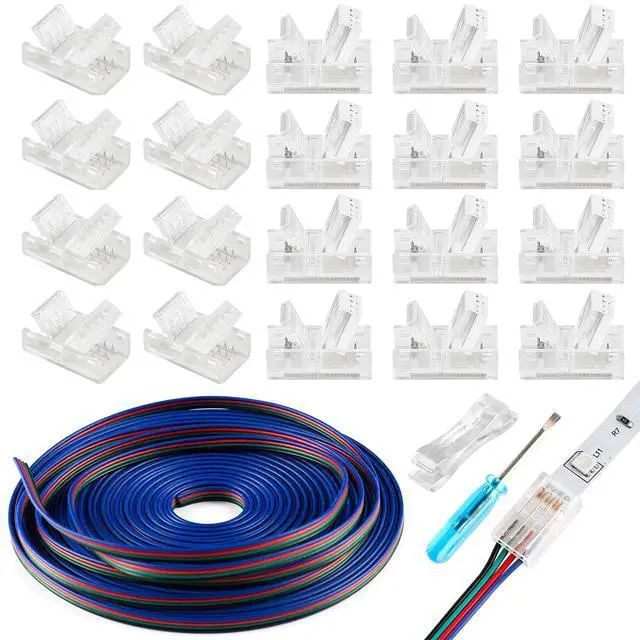

Package includes
20x Strip to Wire LED Connectors for 10mm Width RGB LED Strip(both waterproof and non-waterproof strips are suitable)
1x 16.4ft 22 Gauge 4 Conductor Extension Cable
