Made by WAGO
WAGO revolutionized electrical interconnections by replacing traditional screw connections with faster, vibration-proof, and maintenance-free spring pressure, setting the industry standard.
- Trusted since 1951

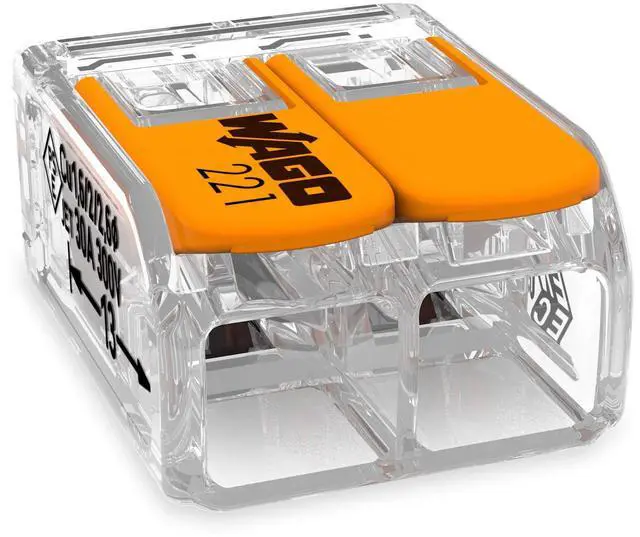

The 221 Series from WAGO
Flexible, fast and safe connections
Pull the lever up, insert a conductor and push the lever back down – done! As tool-free, lever-actuated connectors, WAGO's 221 Series Splicing Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 20–10 AWG for 221-61x.
Setting new standards in electrical installation, the 221 Series LEVER NUTS splicing connector is now smaller, more user-friendly and made for larger conductors.

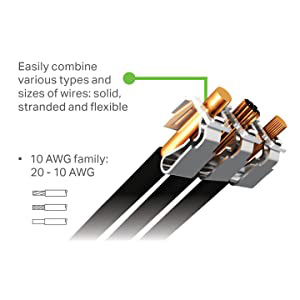

- Connect any combination of solid, stranded and flexible copper wires faster and more reliably.
- Tool-free / lever-actuated connectors
- Visually inspect for proper strip length and complete wire insertion through its transparent housing.
- Reusable. Just pull the lever back up.
Unbeatable Benefits

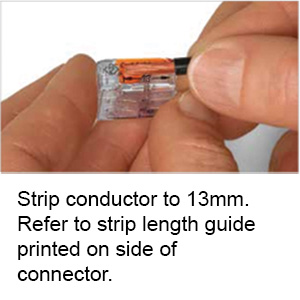

How to Use
WAGO 221 lever wire connectors
Pull the lever up, insert a conductor and push the lever back down – done!
 221-612 |  221-613 |  221-615 |  221-412 |  221-413 |  221-415 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Number of conductors | 2 | 3 | 5 | 2 | 3 | 5 |
| Number of pieces (standard pack) | 50 | 30 | 15 | 100 | 50 | 25 |
| Conductor range solid | 20-10 AWG | 20-10 AWG | 20-10 AWG | 24-12 AWG | 24-12 AWG | 24-12 AWG |
| Conductor range stranded | 20-10 AWG | 20-10 AWG | 20-10 AWG | 24-12 AWG | 24-12 AWG | 24-12 AWG |
| Rated Voltage (UL) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) |
| Rated Current (UL) | 30A | 30A | 30A | 20A | 20A | 20A |
We combine partnership with inspiration
Confidence occurs when connections are strong and reliable. That's why we work every day to improve the connections to our partners by making their connections safer, stronger and more efficient. This is our mission: Empower connections.
The 221 Series from WAGO
Made by WAGO
WAGO revolutionized electrical interconnections by replacing traditional screw connections with faster, vibration-proof, and maintenance-free spring pressure, setting the industry standard.
- Trusted since 1951
Flexible, fast and safe connections
Pull the lever up, insert a conductor and push the lever back down – done! As tool-free, lever-actuated connectors, WAGO's 221 Series Splicing Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 20–10 AWG for 221-61x.
Setting new standards in electrical installation, the 221 Series LEVER NUTS splicing connector is now smaller, more user-friendly and made for larger conductors.
- Connect any combination of solid, stranded and flexible copper wires faster and more reliably.
- Tool-free / lever-actuated connectors
- Visually inspect for proper strip length and complete wire insertion through its transparent housing.
- Reusable. Just pull the lever back up.
Unbeatable Benefits
How to Use

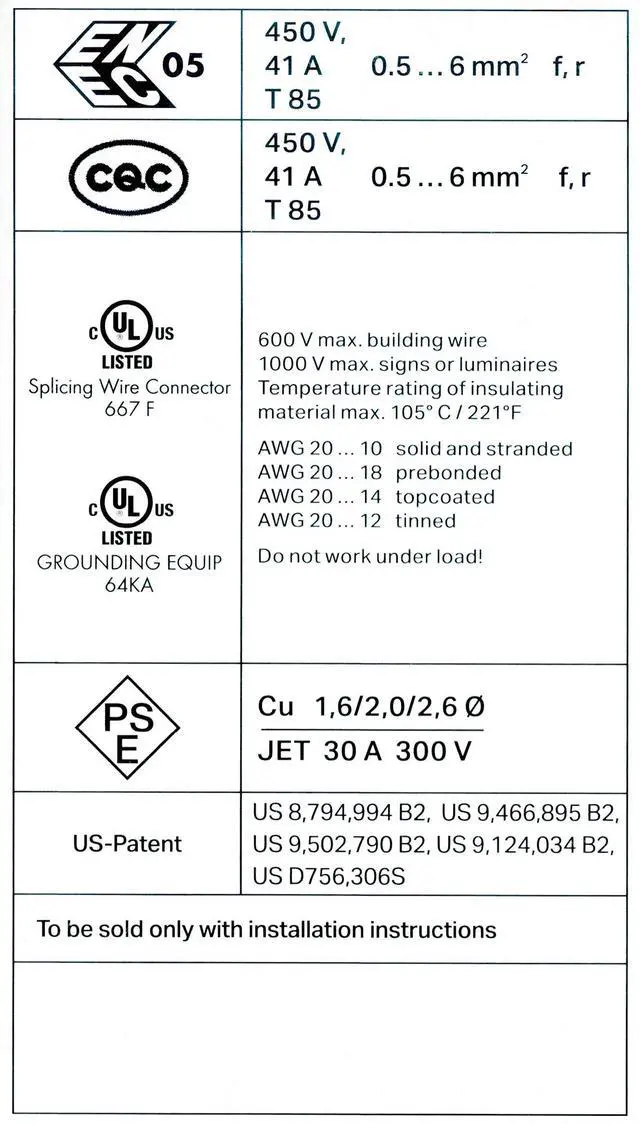

| Conductor size 221-41x | 20-10 AWG solid/stranded |
| Rated Current (UL) | 30A |
| Rated Voltage (UL) | 600 V max. building wire. 1000 V max. signs or luminaires |
| Temperature | Temperature rating of insulating material 105° C max. |
| Supported conductor material | Cu (copper) |
| UL Listed | yes |
WAGO 221 lever wire connectors
Pull the lever up, insert a conductor and push the lever back down – done!
221-612 | 221-613 | 221-615 | 221-412 | 221-413 | 221-415 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Number of conductors | 2 | 3 | 5 | 2 | 3 | 5 |
| Number of pieces (standard pack) | 50 | 30 | 15 | 100 | 50 | 25 |
| Conductor range solid | 20-10 AWG | 20-10 AWG | 20-10 AWG | 24-12 AWG | 24-12 AWG | 24-12 AWG |
| Conductor range stranded | 20-10 AWG | 20-10 AWG | 20-10 AWG | 24-12 AWG | 24-12 AWG | 24-12 AWG |
| Rated Voltage (UL) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) | 600 V (1000 V signs & fixtures) |
| Rated Current (UL) | 30A | 30A | 30A | 20A | 20A | 20A |
