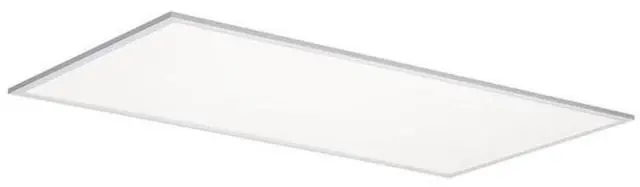

Signify Day-Brite 2FPZ30L850 FluxPanel LED recessed luminaire, 2 feet by 4 feet, 5000K, 3000 Lumens, 2 x 4 Difffuse LED Panel, 120-277V, Dimmable

Signify

Day-Brite FluxPanel

2FPZ30L850-4-DS-UNV-DIM

2 ft by 4 ft LED Panel

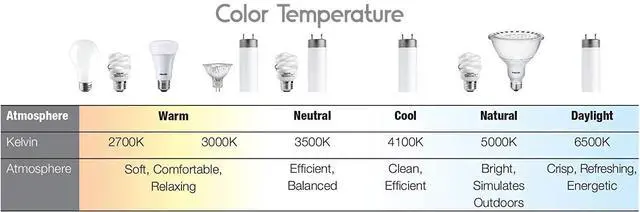

• 3000 Lumens, 5000K Color Temp, 80 CRI


• 2 feet by 4 feet (2x4)


• Diffuse Smooth


• Dimmable 0-10V dimming to 1%

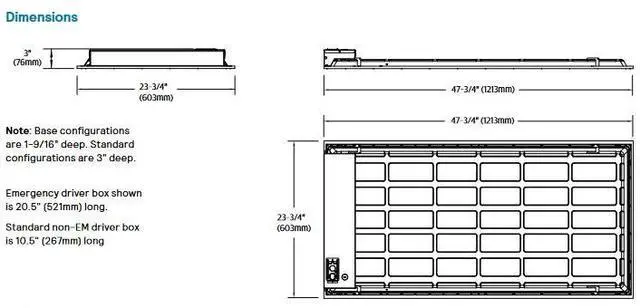

• 3 " overall depth, including driver box.


• Even distribution of light on the lens provides exceptionally low glare gradient minimizing distractions at the ceiling plane.


• General light distribution creates uniform horizontal and vertical illuminance on the work plane and limits scalloping on the walls.


• Excellent consistency of correlated color temperature (CCT) per ANSI C78.377.


• CRI 80 minimum color rendering with balanced spectrum.


• Designed for use with standard Grid (NEMA "G") or Narrow Grid (NEMA "NFG") ceiling T-bars. Drywall or plaster application require use with the FMA24 "F" mounting frame accessory (sold and shipped separately).


• Accessory field install kits available for surface (FSF24) and suspended (FPZCH48) mounting


• Die formed galvanized steel housing.


• Extruded aluminum frame post painted with gloss white enamel finish. Corners are precision welded for seamless aesthetic.


• Die formed driver box with standard access plate for ease of wiring, provides tool-free access to driver(s) from above.


• Backlit LED arrays with optics provide highly efficient and unpixelated transfer of light to the lens.


• Integral clips accommodate definitive attachment to T-bar grid for recessed applications.


• Die formed surface box accessory kit post painted gloss white enamel.


• Diffuser provides visual comfort and high efficiency.


• Flat opal lens is easy to clean and provides a uniform aesthetic on the ceiling plane.


• Tight enclosure assembly impedes ingress of dust and insects
