- Brand:BTF-LIGHTING
- Gray level: 256
- View angle: 120°
- Input voltage: DC12V
- FPCB Width: 12mm
- Recommand power supply :DC12V10A 120W
- Standard Reel Length: 16.4ft/roll 5m/roll
- Power:0.1-0.4W/LED 6W-24W/m Total: 30W-120W This is a variable value
- Storage Temperature:-40?~+50 °C
- Operating Temperature:-25?~+50 °C
- Color temperature: Warm White 2700K-3000K

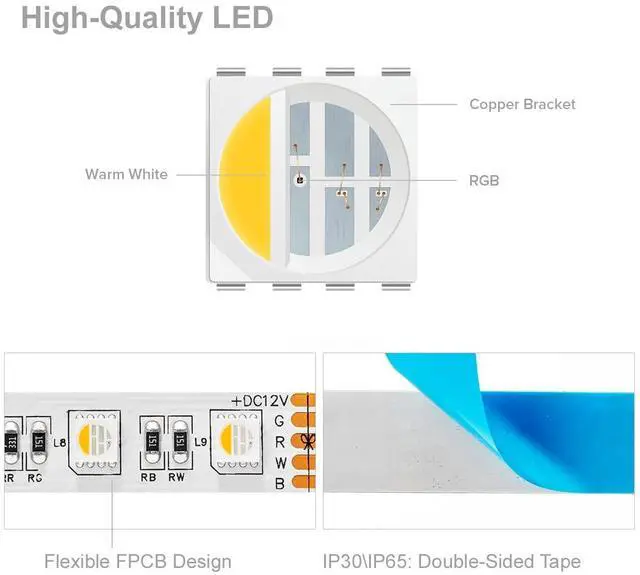

- Color:RGBWW 4 in 1RGB(red green blue)+Warm White
- Led Qty: 60leds/m .300RGB LEDs+300 Warm White LEDs
- Wave length(nm):Red,620-625nm ; Green,520-525nm ; Blue,465-470nm
- Luminous flux :Red 1.0-2.0 lumens Green: 3.0-4.0 lumens Blue: 1.0-2.0 lumens White: 5.0-6.0 lumens
- Waterproof level: IP65 Silicone Coating Waterproof
NOTE:
- PIN Order : +12V-G-R-W-B (NOT RGBW+12V or +12V RGBW)
- It is not recommended to light up red+ blue+ green mixed white, so the voltage drop obviously
- When you light up 1 color(red or green or blue) , each LED is 0.1W . If you light up 2 colors (red+green) ,each LED is 0.2W , when you light up 3 colors (red+green+blue), each LED is 0.3W, when you light up 4 colors (red+green+blue+warm white) ,each LED is 0.4W .
- Power adapter or controller is not included

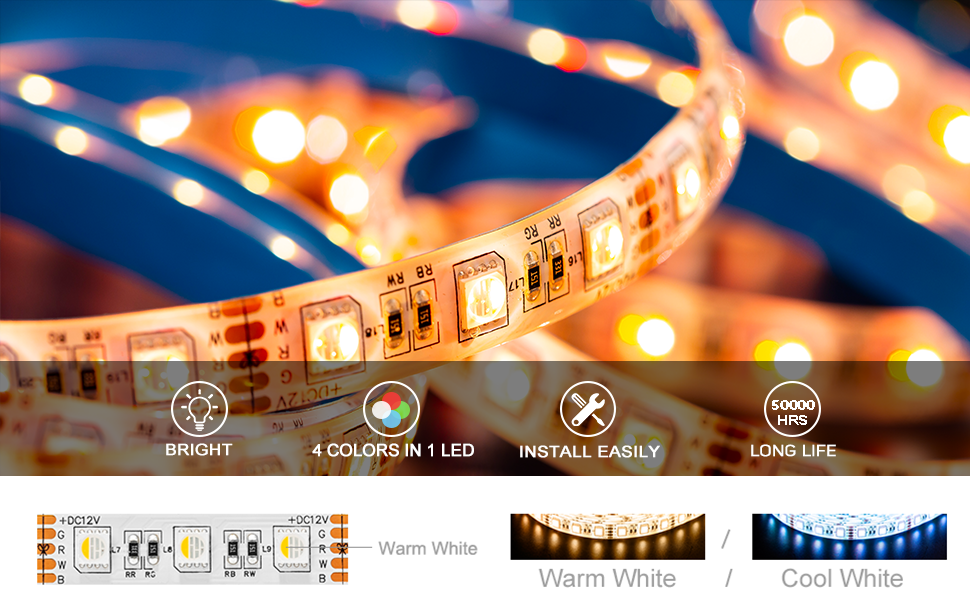

Features

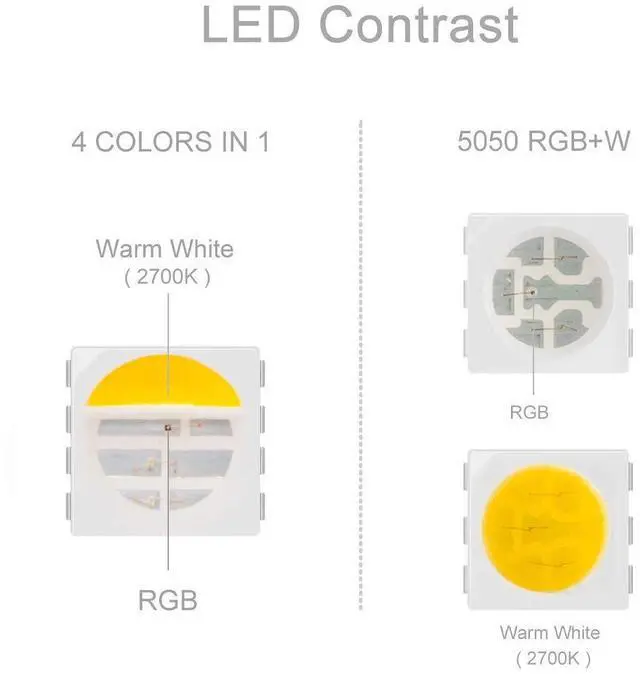

4 in 1
- 4 colors(red, green, blue, white) mixed in 1 led. 60leds/m, 300 RGB leds + 300 pure Warm White.
Two kinds of white
- Red+green+blue is mixed white. Warm white is pure white. Two kinds of white can be free to switch.
Cuttable
- Every three leds can be cut off, led strip still working after cutting. Cut it to the length you just need.
Different Color temperature
- RGB+Cool White (6000K-6500K)
- RGB+ Warm White (2700K-3000K)

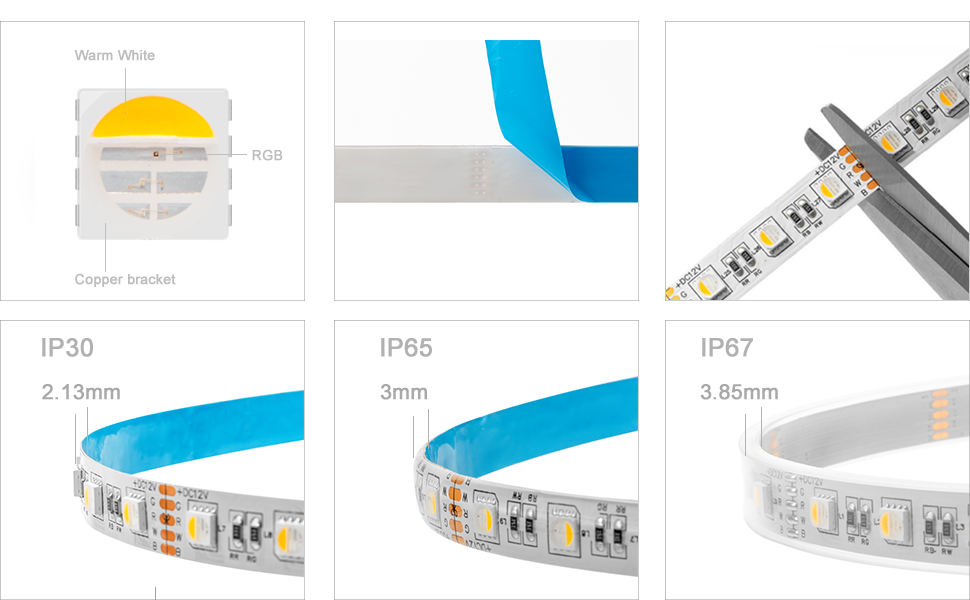

Waterproof level:
- non-waterproof (IP30)
- Silicone coating waterproof (IP65)
- Silicone tube waterproof (IP67)




Note
- Use voltage 12V. Higher than 12V will destroy it.
- LED strip is made by 50cm FPCB, so there is a solder point each 50cm on strip. But this minor flaw has no any bad effect on the strip's performance. In fact, ALL the LED strips on the market are manufactured in half-meter lengths.
Package:
- 1x 16.4ft RGBW+Warm white 4 in1 60leds/m IP65 LED strip
- 1x 5 pin male connector
- Power adapter or controller is not included
