Product parameters and specifications:
- Brand:BTF-LIGHTING
- Gray level: 256
- View angle: 120°
- Input voltage: DC12V
- The width of LED strip : 12mm including silicone Sheathing ( 4 in 1 LED strip is 14mm )
- The width of FPCB :10mm ( 4 in 1 LED strip is 14mm )
- Recommand power supply :DC12V5A(60W)
- Standard Reel Length: 16.4ft/roll
- Power:0.1-0.3W/LED 3W-12W/m Total: 15W-60W This is a variable value
- Storage Temperature:-40?~+50 °C
- Operating Temperature:-25?~+50 °C
- Color temperature: Warm White 2700K-3000K
- Led Qty: 60leds/m .150RGB LEDs+150 Warm White LEDs
- Wave length(nm):Red,620-625nm ; Green,520-525nm ; Blue,465-470nm
- Luminous flux :Red 1.0-2.0 lumens Green: 3.0-4.0 lumens Blue: 1.0-2.0 lumens White: 5.0-6.0 lumens
- Waterproof level: IP67 Silicone Sheathing Waterproof
NOTE:
- PIN Order : +12V-G-R-B-W (NOT RGBW+ or +RGBW)
- When you light up 1 color(red or green or blue) , each LED is 0.1W . If you light up 2 colors (red+green) ,each LED is 0.2W , when you light up 3 colors (red+green+blue), each LED is 0.3W
- Power adapter or controller is not included
Features
- 3 in 1

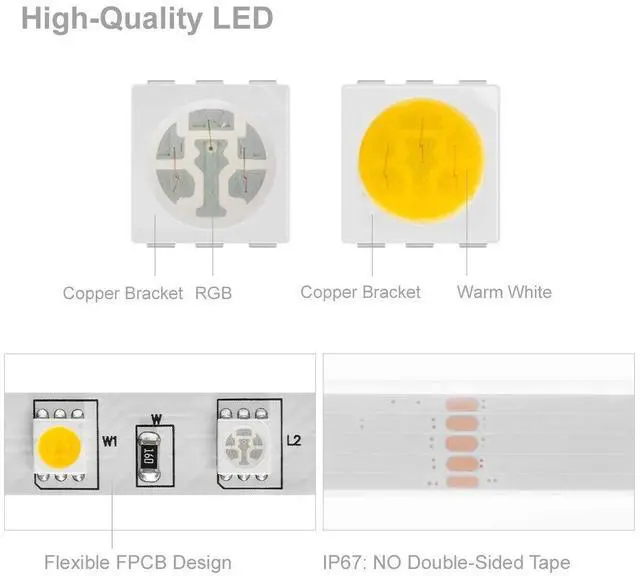

3 colors(red ,green,blue) mix in 1 led. 60leds/m ,150 RGB leds + 150 pure Warm white leds.Producing multi wonderful colors.Offering super bright glowing and vivid color.
- Two kinds of white
Red+green+blue is mixed white , warm white is pure white Two kinds of white free to switch.
- Bright
Brightness can be adjusted freely.Do not stare at it for a long time, otherwise you will be dazzled when the led brightness is the brightest.

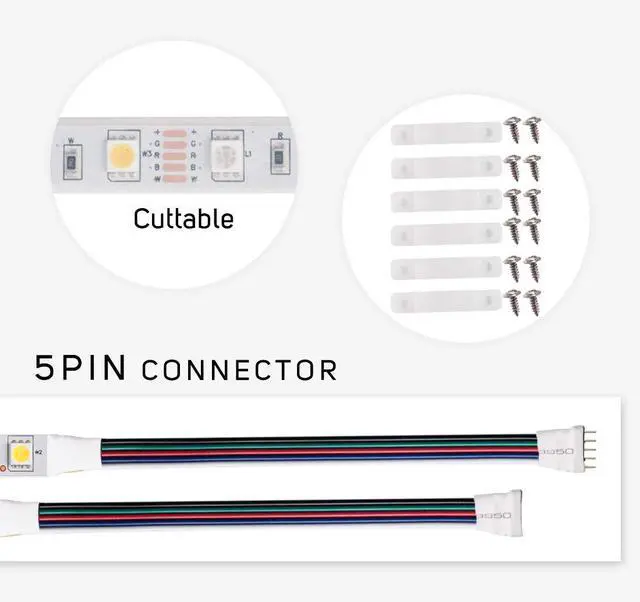

- Cutable
Every three leds can be cut off,led strip still working after it is cut. Cut it to the length you just need.
- Adhesive
Theere is Double-sided tape (Only IP30/IP65) on the back.You can affixed on the bookcase, TV, wine cabinet, ceiling, windowsill easily .IP67 has no adhesive on its back.
- Colorful
Red ,Green, Blue ,warm white(2700K-3000K) .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect
Note
- The LEDs at the far end of the strip might be dimmer because of the added resistance and voltage drop that occurs as the current flows to that end of the strip
- Adding DC12V5A every 16ft (every roll)
- You need a signal amplifier every 64ft .
- If you light up mixed white(red+blue+green) consume a lot of power , the voltage will drop obviously .

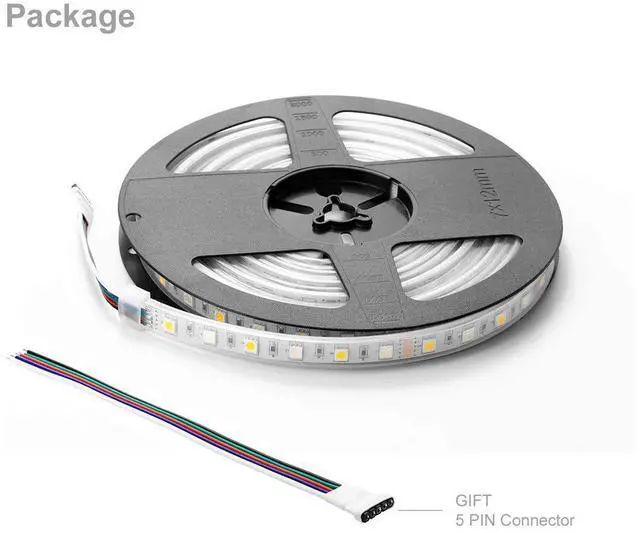

Package:
- 1x16.4ft RGBWW 60LEDs/m IP67 LED strip
- 1x5 pin male connector
- Power adapter or controller is not included
 DC12V |  DC12V |  DC12V |  DC24V | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| 4 colors in 1 LED | ? | X | ? | ? |
| LED Quantity | 300RGB+300 Pure White | 150RGB+150 Cool White | 300RGB+300 Pure White | 300RGB+300 Pure White |
| White Color Temperature | Cool White :6000K-7000K | Cool White :6000K-7000K | Cool White :6000K-7000K / Warm White:2700K-3000K | Cool White :6000K-7000K / Warm White:2700K-3000K |
| Adhseive tape | Double-sided tape (Only IP30/IP65) | Double-sided tape (Only IP30/IP65) | Double-sided tape (Only IP30/IP65) | Double-sided tape (Only IP30/IP65) |
| PCB Color | White | White | Black | White |
| Recommand power supply | DC12V10A | DC12V8A | DC12V10A | DC24V4A |
| PIN Order | +12V-G-R-W-B(NOT RGBW+) | +12V-G-R-B-W(NOT RGBW+) | +12V-G-B-R-W(NOT RGBW+) | +24V-G-B-R-W(NOT RGBW+) |
| Connector | 5 PIN | 5 PIN | 5 PIN | 5 PIN |
| Waterproof Level | IP65:Silicone coating IP67:Silicone Tube | IP65:Silicone coating IP67:Silicone Tube | IP65:Silicone coating IP67:Silicone Tube | IP65:Silicone coating IP67:Silicone Tube |
| Non waterproof | IP30 :non-waterproof | IP30 :non-waterproof | IP30 :non-waterproof | IP30 :non-waterproof |
