ALTRONIX RBR1224 RATCHET RELAY 12/24VOLT

+
+
Overview
Specs

Any questions? Ask CelesteSM will help you find out quickly.

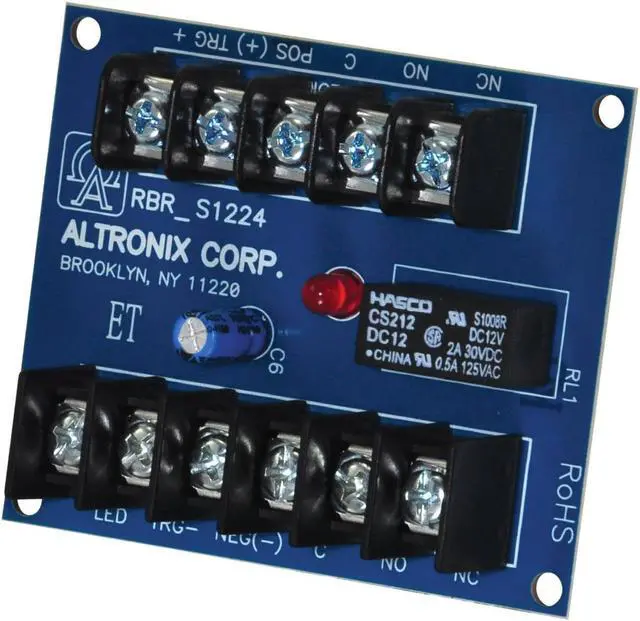

ALTRONIX RBR1224 RATCHET RELAY 12/24VOLT

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.

Manufacturer Contact Info

LOADING...

The Altronix RBR1224 is a 12/24VDC electronic toggle/ratchet relay for installers integrating alarm control panels, door controls, or keypads that need a relay to switch between latched ON and OFF states.

Recommended For

  • Security installers adding a toggle or latching action to a compatible 12/24VDC alarm-panel output, such as for electronically shunting an alarm zone.
  • Access-control technicians who need a momentary trigger to switch a door-control or keypad circuit between maintained ON and OFF states.
  • System integrators interfacing a compatible wireless receiver or control-panel output with a circuit that needs a latched relay state and a remote status indication.
  • Low-voltage panel builders who need a compact DPDT relay module for a 12VDC or 24VDC control system and can provide the required trigger wiring.

Spec Summary

AttributeValue
Best For12/24 VDC DPDT ratchet-relay switching in toggle-operated control circuits
Electrical And Switching24 V coil voltage, 12–24 V switching range, 20 mA contact-current rating, and 480 mW wattage
Contacts And ConnectionDPDT contacts with silver contact material and a through-hole connector
Mounting And ConstructionDIN rail mount with phenolic/fiberglass construction; blue
Dimensions And Weight76.2 × 63.5 × 25.4 mm; item weight 63 g
Model IdentifiersAltronix RBR1224 ratchet relay
