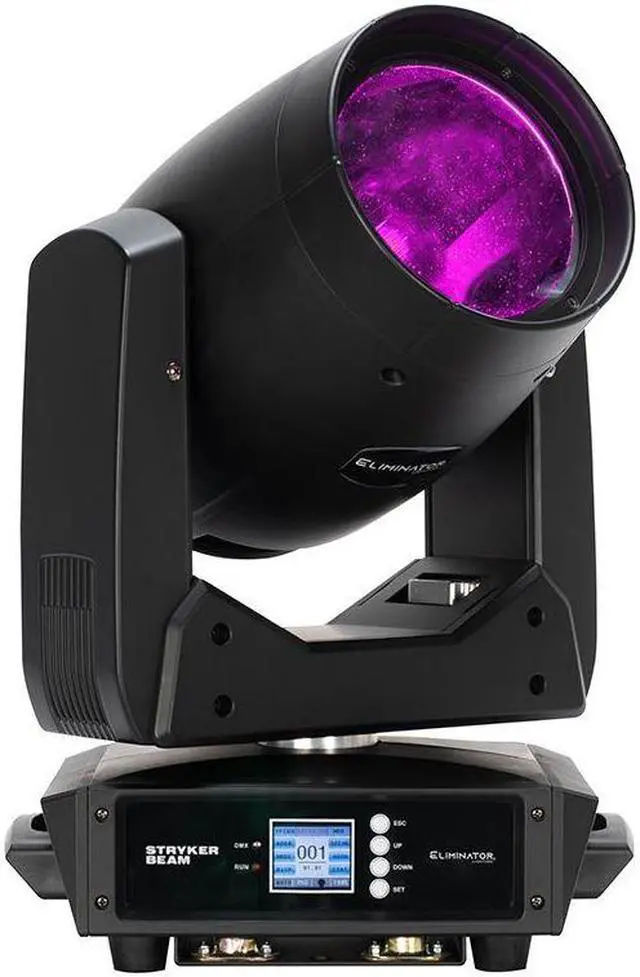

Eliminator Stryker Beam

Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lightings Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.



The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect.



For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable. It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the units operating parameters. It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system



FEATURES:



Full color function display with 4 buttons

Fast, precise, pan & tilt movements

Primary / Secondary stand-alone mode

Motorized Focus

Frost Filter (50-Degree Wash Effect)



SPECIFICATIONS:



LIGHT SOURCE:

100W LED Engine

6-Degree Beam Angle



COLOR WHEEL:

13 colors + open

Separate 6-Color flag for multi-color effects



GOBO WHEEL:

Metal wheel with 11 GOBOS + open (2 are beam reducers)

GOBO Shake Effect



PRISM WHEEL:

8-facet rotating circular prism

16-facet rotating circular prism

Prism layering



CONTROL:

2 DMX channel modes: 6 & 19 channels

Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes

Electronic Dimmer: 0- 100 %

Variable Strobe: 0-20HZ

With Wired Digital Communication Network



CONNECTIONS:

DMX Data In/Out: 3-pin & 5-pin connections

Power In: Blue Locking indoor power connection

Power Out: White Locking indoor power connection



PAN/TILT:

Pan/Tilt: 540-degrees / 270-degrees

16-bit Fine Pan

16-bit Fine Tilt



ELECTRICAL:

Multi-voltage operation: AC 100-24V, 50/60Hz

Maximum Power Consumption: 150W

Power daisy chain: 2 units @120V, 3 units @230V



DIMENSIONS & WEIGHT:

Dimensions (LxWxH): 7.875 x 11.875 x 18.3125 / 200x302x465mm

Weight: 29 lbs. / 12.8 kg.
