NuTone NM200K Music & Intercom System Package (NM200K)

Play music throughout your home, communicate from room-to-room, and answer your front door from any room. It's all possible with the NuTone NM200 Music Intercom Master Station Package. Complete with a master unit, four indoor intercom stations, one outdoor station, and a door speaker (doorbell station), this new-wire intercom and music distribution package introduces convenient audio and intercom communication to your entire residence.

- Four indoor stations, one outdoor station, and one doorbell
- Doorbell rings through every intercom station
- Two inputs for external music sources
- Built-in AM/FM radio with preset channels
- Supports up to 15 remote stations and 3 door speakers

The Master Station serves as the main hub of your home's NuTone intercom and music distribution system. All five included remote stations (both indoor and outdoor) and the door speaker connect to the master station using Cat5 wiring.

Remote intercom stations have simple pushbuttons that control the system remotely. Each one can be set to intercom only, monitor (listen), radio plus intercom, or off, giving you complete control over the system.

The door speaker has just one doorbell button and installs near your front door. The included three-note chime module provides a selection of door chime sounds you can play through the intercom system. When a visitor presses the doorbell button, a door chime up to three notes long sounds through every remote station in your system.

Master Station Features

The Master Station has two music source inputs, which allow you to connect any external music source, such as an iPod. It also has a built-in AM/FM radio with eight AM station presets and eight FM station presets. A comprehensive menu of settings is easily accessible via the station's backlit liquid crystal display, which shows the volume setting, audio source, operation mode, radio frequency, and time. You can set the system to automatically turn music on/off at specific times, so you can kick off the day or wind down at night with automated music for your convenience.

The NuTone NM200 Music Intercom Master Station also has a door release mechanism for use with an electric door strike (sold separately). Turn your intercom into your personal security assistant and gain peace of mind!

System Installation

Master Station: To install the NM200 Master Station alone, order the NuTone NM Series Rough-in for NM100/NM200 Master Station (NWH300).

Outdoor Remote Station: Designed for outdoor installation, the Outdoor Remote Station is weatherproof and withstands rain, snow and other harsh elements. It requires the Outdoor Remote Station Surface Mount Frame (NRKS200PWH) for installation.

Indoor Room Stations: All four indoor room stations can be installed with the 5-pack of Rough-in NRS103, 104, 200 Indoor Remote Stations (NRKR200R).

Door Speaker: Requires the Rough-in for NDB300 Door Speaker (NRKR300D) for installation.

Chime Module: Mounts inside the Master Station.

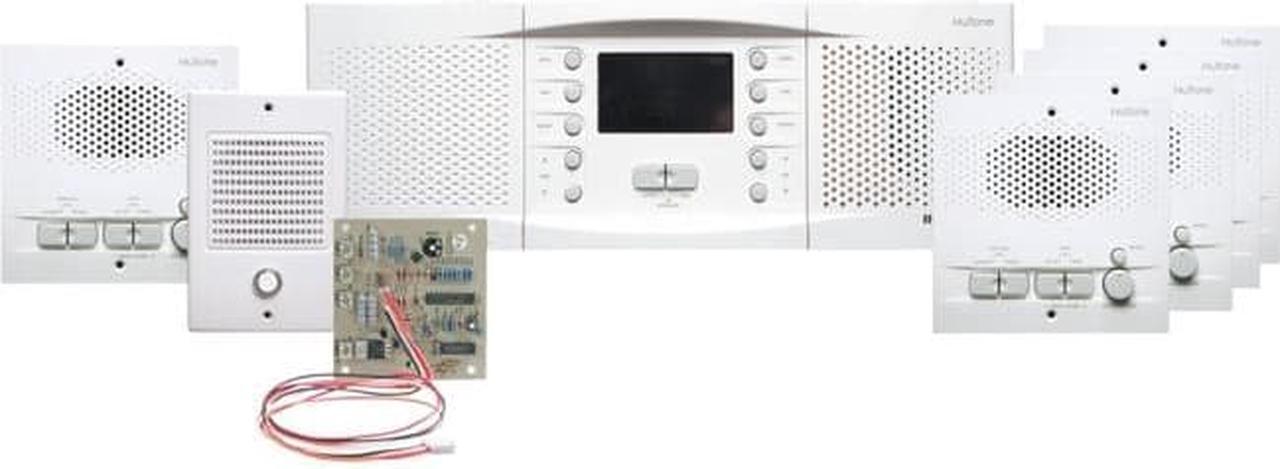

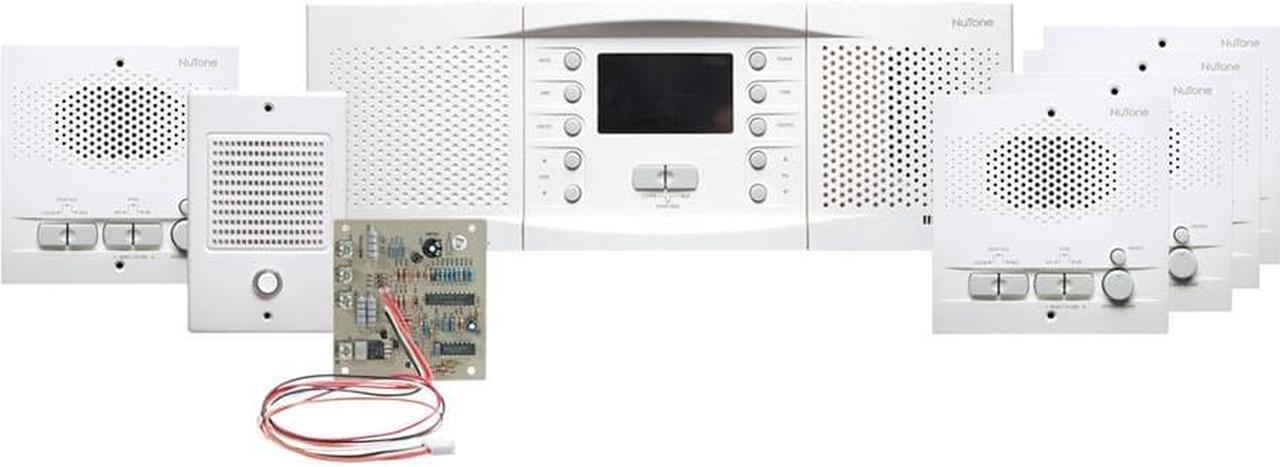

Package Includes

Master Station, White (NM200WH)
(4) Indoor Room Stations, White (NRS200WH)
Outdoor Station, White (NPS200WH)
Door Speaker, White (NDB300WH)
3-Note Chime Module (NA3003C)

Master Station
Dimensions
- With Frame: 16-1/8(W) x 5-5/16(H) inches
- Without Frame: 15-1/4(W) x 5-5/16(H) inches
In-Wall Depth: 3-3/8 inches

Indoor Room Station
Dimensions: 5-1/2(W) x 5-1/2(H) x 1-5/8(D) inches
Depth: 1-1/8 inches from wall

Outdoor Station
Outside Dimensions: 5.5(W) x 5.5(H) inches
Inside Dimensions: 1-5/8(W) x 1-5/8(H) inches

Door Speaker
Dimensions: 4-7/8(W) x 6-5/8(H) inches
Depth: 1-9/16 inches from wall

Chime Module
Dimensions: 3-1/4(W) x 3-1/4(H) inches

Technical Details
Manufacturer Part No: NM200K
UPC: 026715184446
