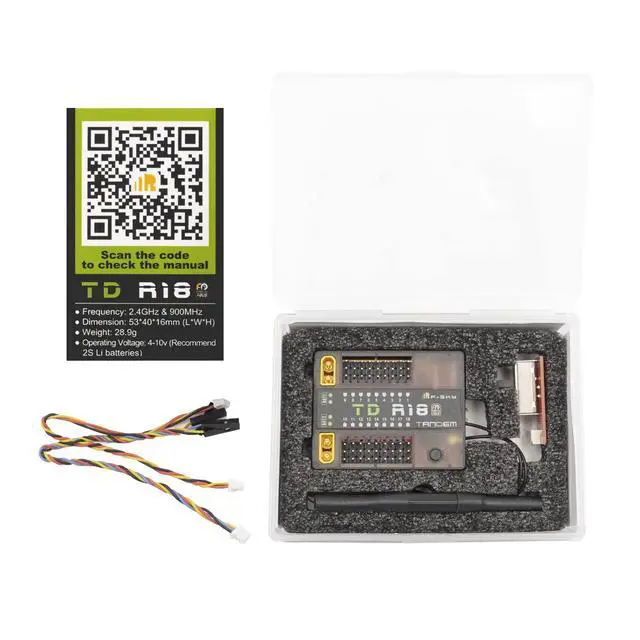

Main image of 2.4G 900M Tandem Dual-Band Receiver TD R18 Receiver with 18CH Ports

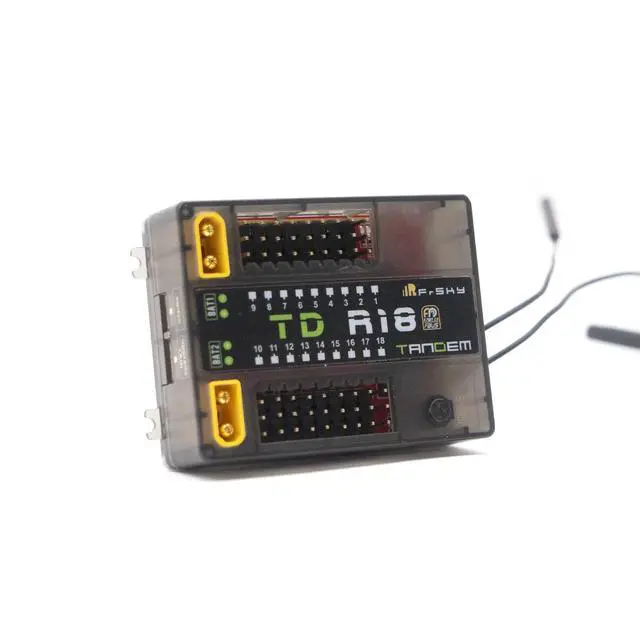

Alt view image 2 of 4 - 2.4G 900M Tandem Dual-Band Receiver TD R18 Receiver with 18CH Ports

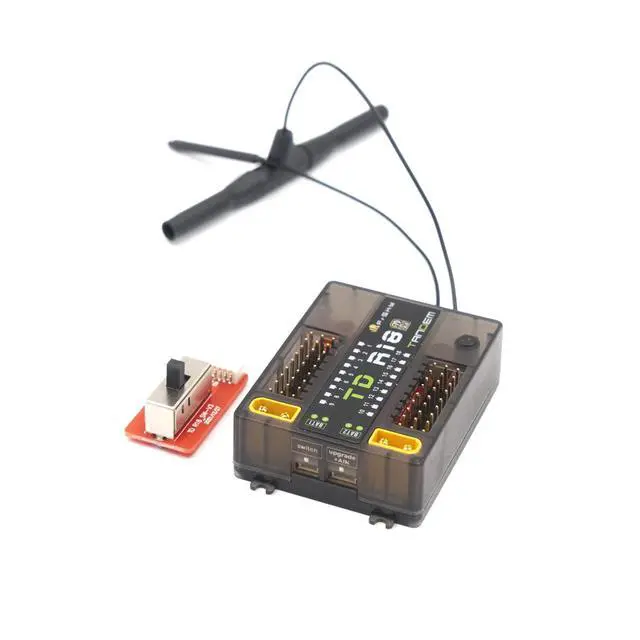

Alt view image 3 of 4 - 2.4G 900M Tandem Dual-Band Receiver TD R18 Receiver with 18CH Ports

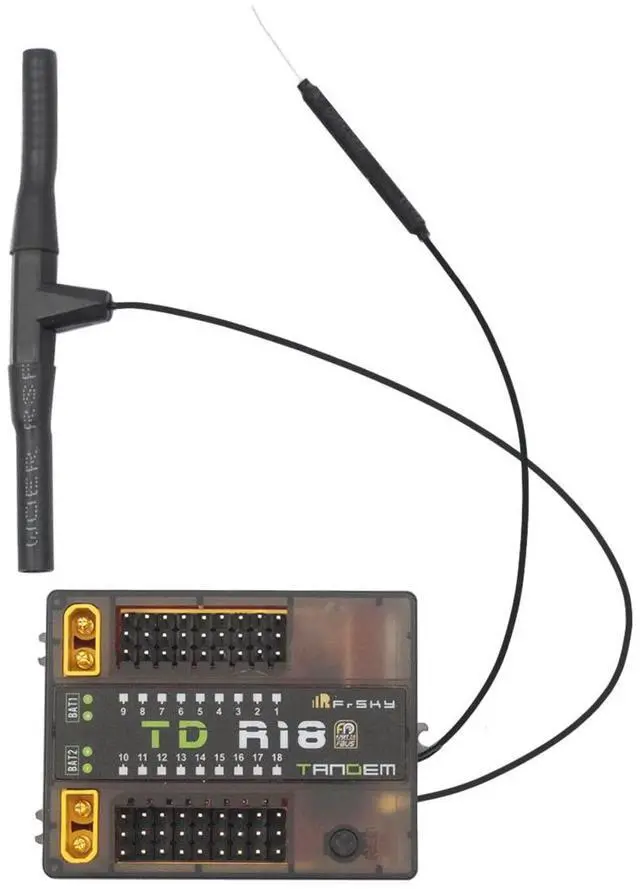

Alt view image 4 of 4 - 2.4G 900M Tandem Dual-Band Receiver TD R18 Receiver with 18CH Ports

Shop All Generic Logic, Inc. Products | Visit QiPing Global Store

2.4G 900M Tandem Dual-Band Receiver TD R18 Receiver with 18CH Ports

Be the first to review this product...

Simultaneous dual-band TD mode for parallel operation. Triple antenna layout for multi-directional signal coverage. Black Box recording function included. Built-in power switch for convenient control. Integrated current and voltage sensors. 4ms Race Mode with full telemetry support. Extended control range (up to 50KM 100KM). Over-The-Air (OTA) firmware update capability. 18 Configurable Channel Ports: CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.) CP2-18: PWM / SBUS Out / FBUS / S.Port Frequency: 2.4GHz & 900MHz. Dimension: 53*40*16mm (L*W*H). Weight: 28.9g. Operating Voltage: 4-10v. Operating Current: 185mA@5V. Continuous Current: 30A (power the device). Instantaneous Current: 60A (power the device). Compatibility: Tandem series radio & TD protocol capable RF module. Dual XT30 Power Input Connector. Triple 2.4G/900M Antenna 1* Interior 2.4G chip antenna 1* External 2.4G antenna (IPEX1) 1* Newly designed 900M antenna

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Simultaneous dual-band TD mode for parallel operation. Triple antenna layout for multi-directional signal coverage. Black Box recording function included. Built-in power switch for convenient control. Integrated current and voltage sensors. 4ms Race Mode with full telemetry support. Extended control range (up to 50KM 100KM). Over-The-Air (OTA) firmware update capability.
18 Configurable Channel Ports:
CP1: PWM / SBUS Out / FBUS / S. Port / SBUS In (Redundancy Func. )
CP2-18: PWM / SBUS Out / FBUS / S.
Port Frequency: 2.4GH z & 900MHz.
Dimension: 53*40*16mm (L*W*H).
Weight: 28.9 g.
Operating Voltage: 4-10v.
Operating Current: 185mA@5V.
Continuous Current: 30A (power the device).
Instantaneous Current: 60A (power the device).
Compatibility: Tandem series radio & TD protocol capable RF module. Dual XT30 Power Input Connector. Triple 2.4G /900M Antenna 1* Interior 2.4G chip antenna 1* External 2.4G antenna (IPEX1) 1* Newly designed 900M antenna
