RockTrix 2pcs 1 inch (25mm) Wheel Adapters Spacers 4x110 to 4x137 (Changes Bolt Pattern) with 12x1.5 studs and nuts

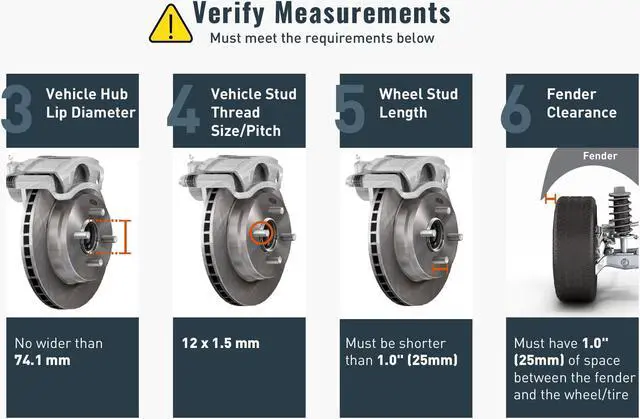

- [CHANGES BOLT PATTERN] Vehicle Must Have 4x110 bolt pattern. Wheel Must Have 4x137 bolt pattern. Buyers also need to verify: 1) Vehicle Centerbore is no larger than 74.1mm; 2) Wheel studs are M12x1.5 12x1.5mm; 3) Wheel Studs are shorter than 1.0" (25mm) length; 4) You have 1.0" (25mm) of space between the fender and the wheel/tire. NOTE: These are WHEEL ADAPTERS which are different from spacers (Not for 4x110 Wheels)

- [FITMENT] For ATVs UTVs and Side by Sides. Compatible with Bombardier. Compatible with Honda. Compatible with Kawasaki. Compatible with Suzuki. Compatible with Yamaha. Check year/make/model in Description. May fit other vehicles, verify with adapter specifications.

- [SPECIFICATIONS] Two (2) Wheel Adapter Spacers | Thickness: 1.0" (25mm) Wide | Vehicle Bolt Pattern: 4/110 | Wheel Bolt Pattern: 4x137 | Hub Center Bore: 74.1mm | Stud/Nut Thread Pitch: 12x1.5 | [MATERIAL & MANUFACTURING] Spacers are CNC Machined to exact specifications from high quality Aerospace Billet Aluminum. Undergoes anodizing process to prevent surface corrosion and rust. Includes heat treated 10.9 grade carbon steel studs.

- [PRODUCT BENEFITS] Allows you to install 4x137 Wheels on your vehicle. Provides additional clearance to allow installation of larger or wider rims/wheels/tires. Also fixes clearance issues if your wheels are making contact with your shocks or brake calipers. Gives your vehicles body a more aggressive stance. Improves handling characteristics and stability with increased traction for the best performance.

- [INSTALLATION] Requires standard tire repair tools, a torque wrench, and lug socket. While installation is simple and most knowledgeable buyers can install themselves, we recommend professional installation especially if it's your first time installing auto parts. IMPORTANT SAFETY ADVISORY: Torque lug nuts to manufacturer specifications. Check and re-torque all hardware, including lug nuts securing adapter to wheel hub after 25-50 miles. See Description for additional install information.

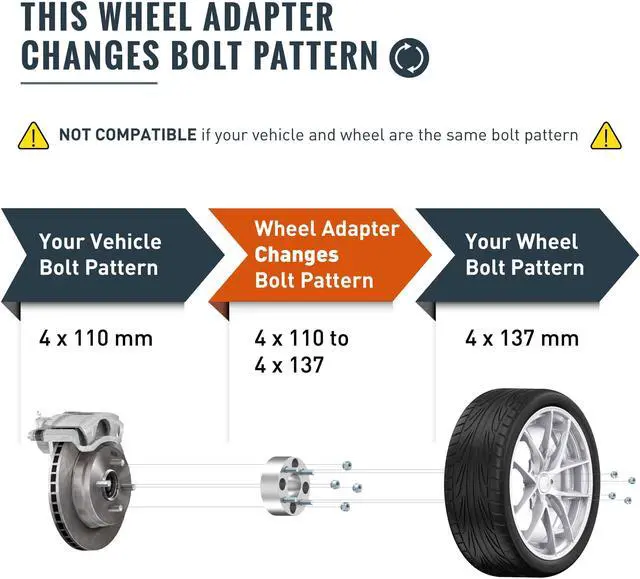

CHANGES BOLT PATTERN - Vehicle Must Be 4x110 AND Wheels Must Be 4x137.


[ SPECIFICATIONS ]

Thickness: 1.0" (25mm)

Vehicle Side Bolt Pattern: 4x110

Wheel Side Bolt Pattern: 4x137

Centerbore: 74.1mm

Stud/Nut Thread Pitch: 12x1.5

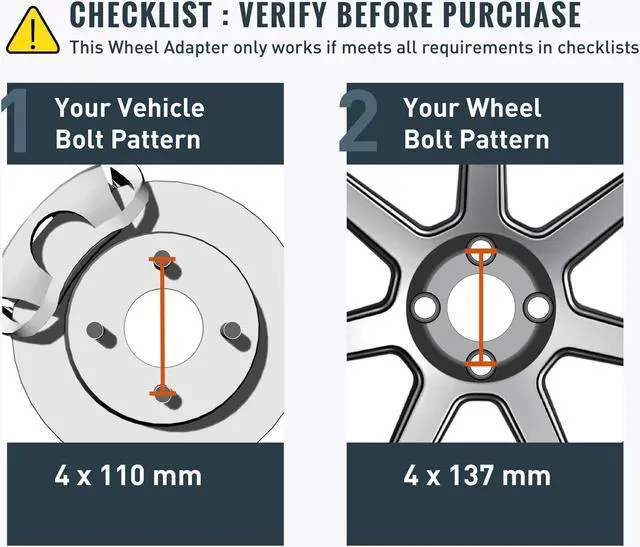

[ FITMENTS ]

These adapters are only compatible on vehicles with 4x110 bolt pattern

AND

wheels with 4x137 bolt pattern.




Other Fitment Notes:

1. The Adapter Lug Seat is Cone Seat (Conical). Do not use a lug nut with a different seat for installation

2. Wheel Lug Hole Diameter needs to be at least 12mm in diameter, or you will
not be able to mount the wheel onto this adapter spacer
