PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Din Rail & Wall Mount Plug and Play
Limited time offer, ends 06/18 By Zhiyi Technology

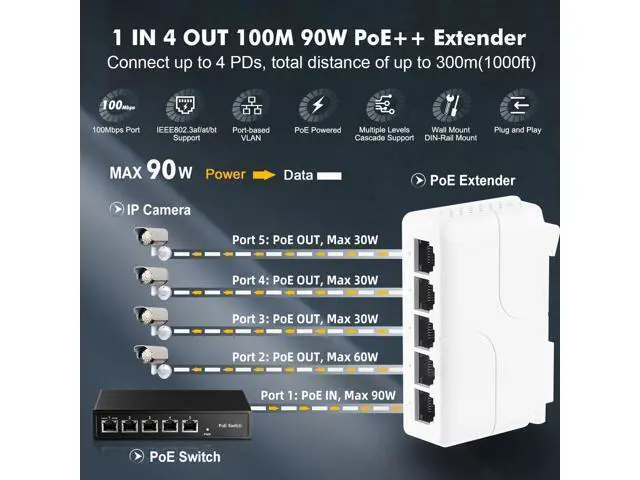

- PoE PassthroughInclude 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

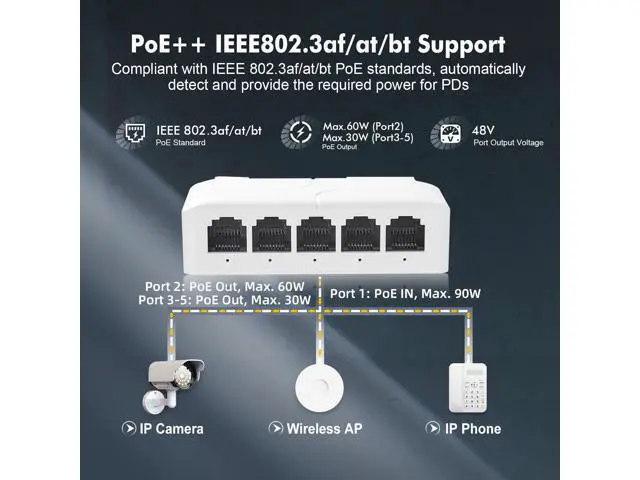

- IEEE 802.3 af/at/bt Support standard PoE, Port 1 Input Max 90W(IEEE802.3bt), Port 2 Output 60W(IEEE802.3bt), Port 3-5 Output Max 30W(IEEE802.3at), PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-)
- Output Port 2: 1/2 (+), 3/6 (-),4/5(+), 7/8(-)
- Output Port 3-5: 1/2 (+), 3/6 (-)

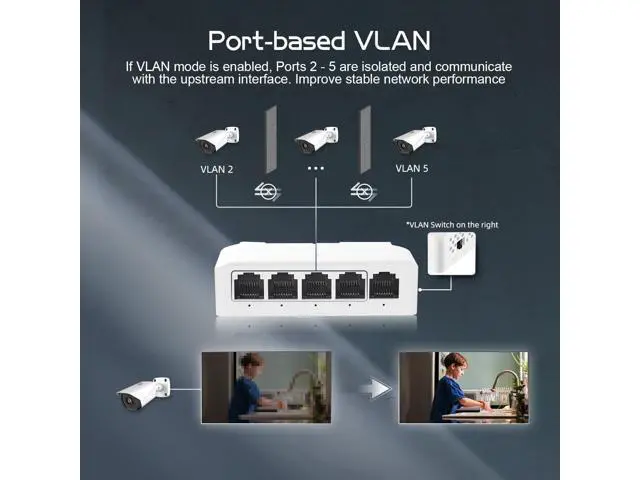

- VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PoE PassthroughInclude 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required. IEEE 802.3 af/at/bt Support standard PoE, Port 1 Input Max 90W(IEEE 802.3 bt), Port 2 Output 60W(IEEE 802.3 bt), Port 3-5 Output Max 30W(IEEE 802.3 at), PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-). Output Port 2: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-). Output Port 3- 5: 1 /2 (+), 3/6 (-). VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-). Output Port 2: 1 /2 (+), 3/6 (-), 4/5(+), 7/8(-). Output Port 3- 5: 1 /2 (+), 3/6 (-). VLAN & Extend Mode Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.
