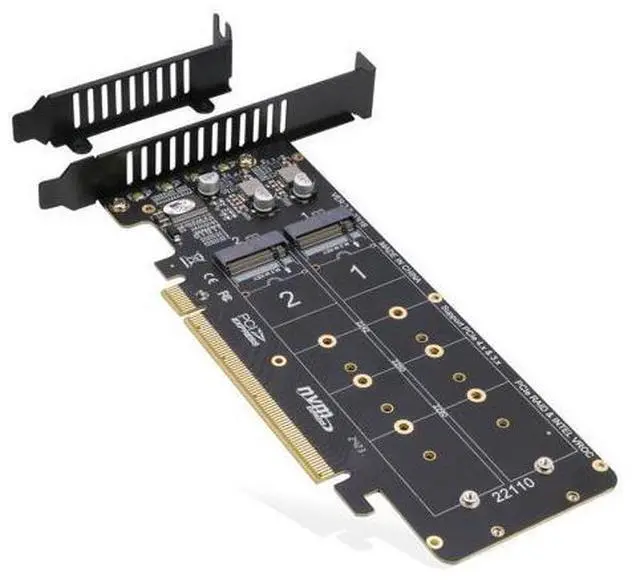

Quad PCIe NVMe Adapter, PCIe 4.0 x16 to 4Ports M.2 NVMe Converter Card for 2U Support NVMe SSD in Size 22110/2280/2260/2242 (PCI-e Bifurcation Required)

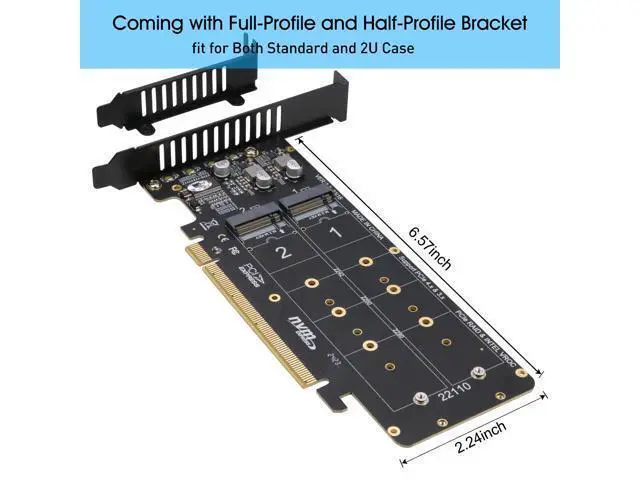

- Quad PCIe NVMe Adapter allows you add 4x NVMe SSDs simultaneously via available PCI-e 4.0 or 3.0 x16 Slot on Motherboard which supports PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps. This model is coming with Low-Profile Bracket designed for 2U Case

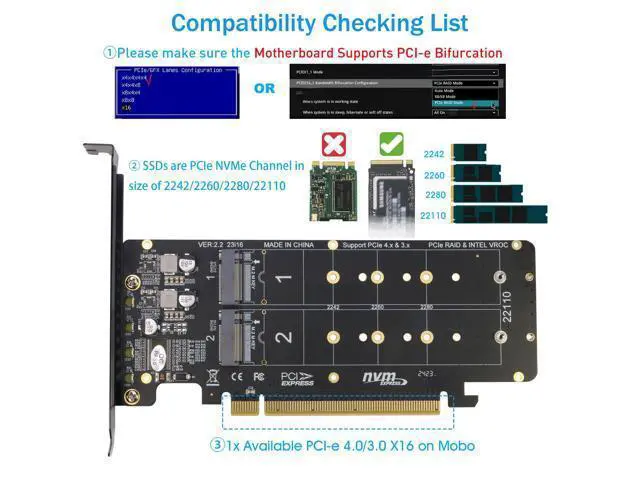

- Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS (Please Note: X8X4X4 or X4X4X8 mode can only recognize 3x NVMe SSDs) 3. All of the SSDs are M.2 PCI-e (M Key) NVMe SSD 4. CPU has enough channels to support

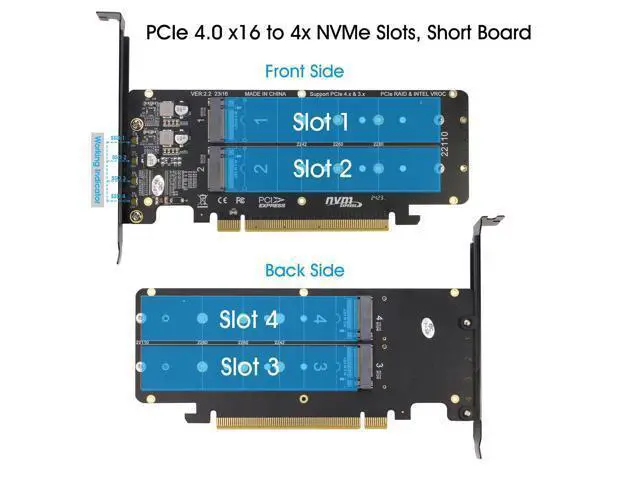

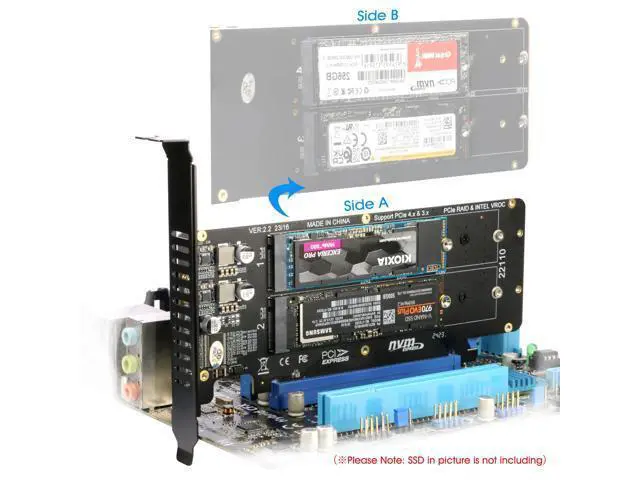

- Upgraded Design: 1. Small size, each side has 2 Slots, it will short the height to save space. 2.Individual LED Indicator design will show each SSD's Working Status
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Quad PCIe NVMe Adapter allows you add 4x NVMe SSDs simultaneously via available PCI-e 4.0 or 3.0 x16 Slot on Motherboard which supports PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps. This model is coming with Low-Profile Bracket designed for 2U Case.
Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS (Please
Note: X8X4X4 or X4X4X8 mode can only recognize 3x NVMe SSDs) 3. All of the SSDs are M. 2 PCI-e (M Key) NVMe SSD 4. CPU has enough channels to support.
Upgraded Design: 1. Small size, each side has 2 Slots, it will short the height to save space. 2. Individual LED Indicator design will show each SSD's Working Status.
Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS (Please
Note: X8X4X4 or X4X4X8 mode can only recognize 3x NVMe SSDs) 3. All of the SSDs are M. 2 PCI-e (M Key) NVMe SSD 4. CPU has enough channels to support.
Upgraded Design: 1. Small size, each side has 2 Slots, it will short the height to save space. 2. Individual LED Indicator design will show each SSD's Working Status.
