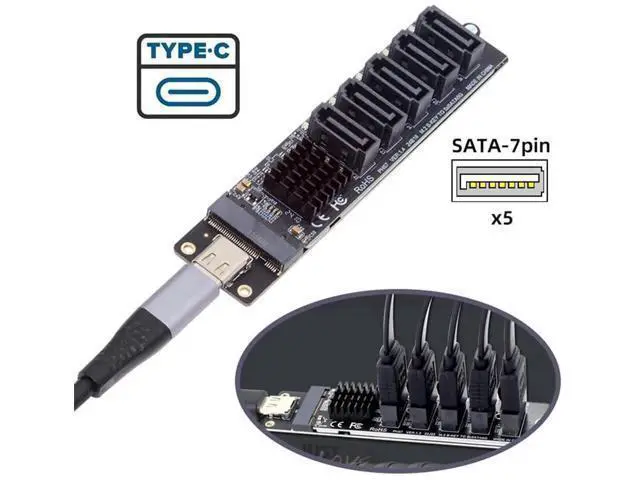

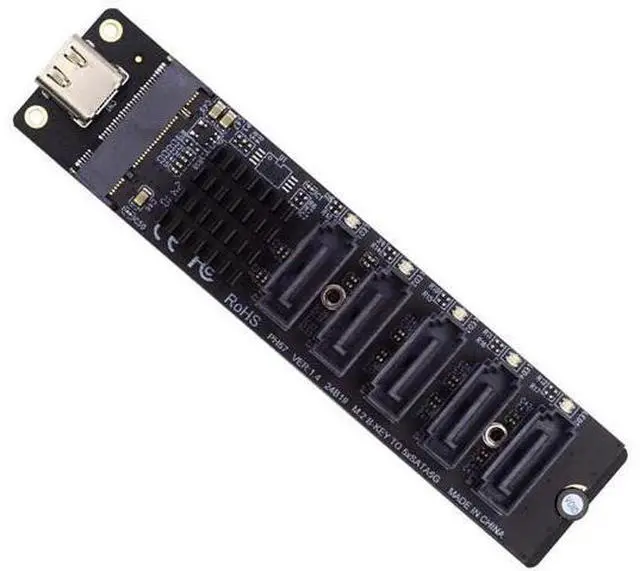

10Gbps USB Drive USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier Selector JMB575 JMS580

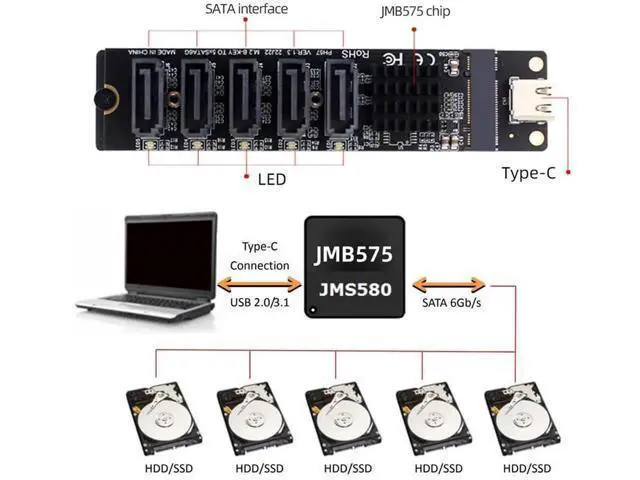

- Dual chipset at the adapter, JMB575+JMS580. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

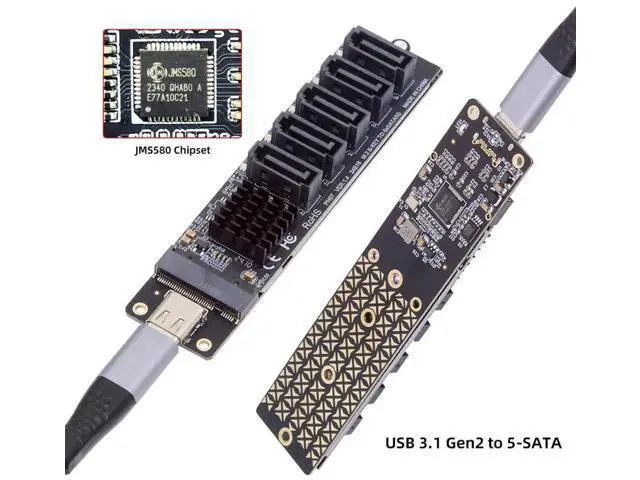

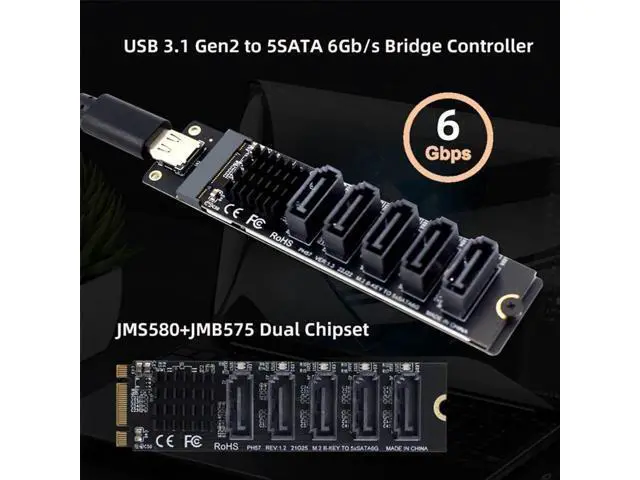

- JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
- Key Features: Complies with Serial ATA 6Gb/s Electrical Specification 3.2
- Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification
- Support 5 port SATA 6Gbps interface
- Supports BIST and loopback mode
- Support command-based and FIS-based switching
- Support PM aware and non-PM aware host

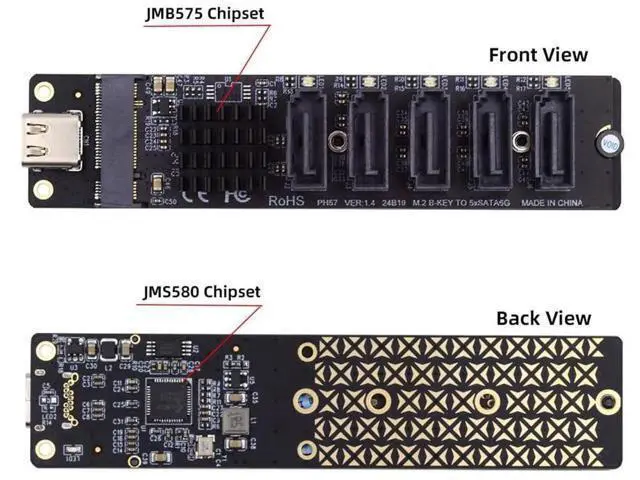

- Main control chip: JMB575+JMS580
- Interface: 5 x SATA3.0 interface
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

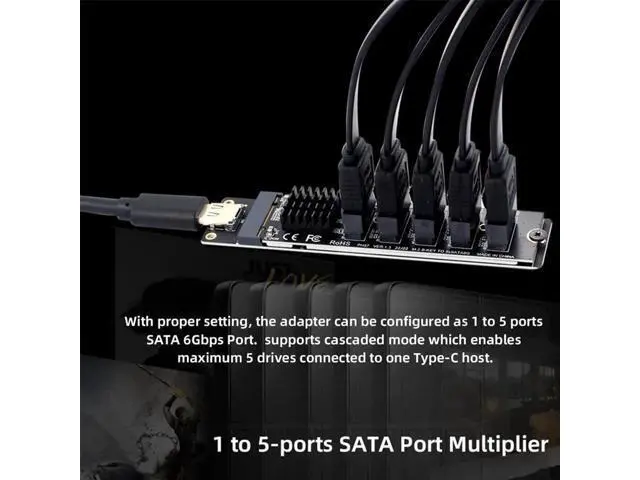

Dual chipset at the adapter, JMB575+JMS580. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.. JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port..
Key Features: Complies with Serial ATA 6Gb/s Electrical Specification 3.2. Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification.. Support 5 port SATA 6Gbps interface. Supports BIST and loopback mode. Support command-based and FIS-based switching. Support PM aware and non-PM aware host..
Main control chip: JMB575+JMS580.
Interface: 5 x SATA 3.0 interface
Key Features: Complies with Serial ATA 6Gb/s Electrical Specification 3.2. Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification.. Support 5 port SATA 6Gbps interface. Supports BIST and loopback mode. Support command-based and FIS-based switching. Support PM aware and non-PM aware host..
Main control chip: JMB575+JMS580.
Interface: 5 x SATA 3.0 interface
