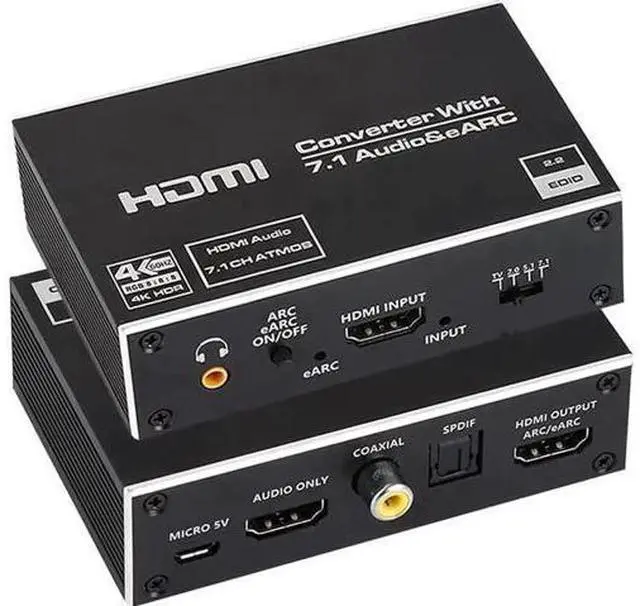

4K HDMI Audio Extractor Splitter,HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function
- 4K HDMI Audio Extractor

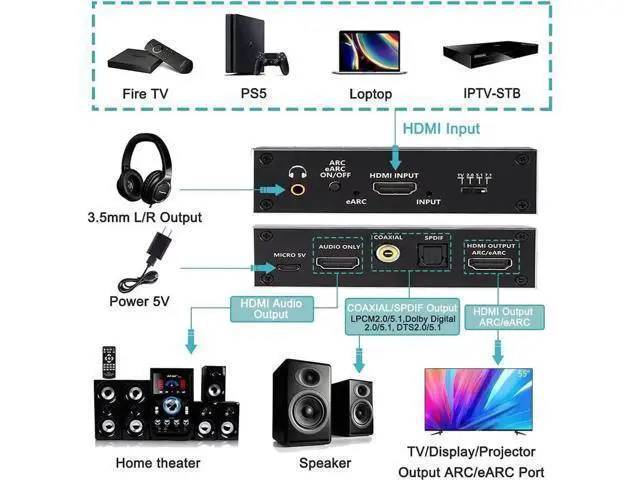

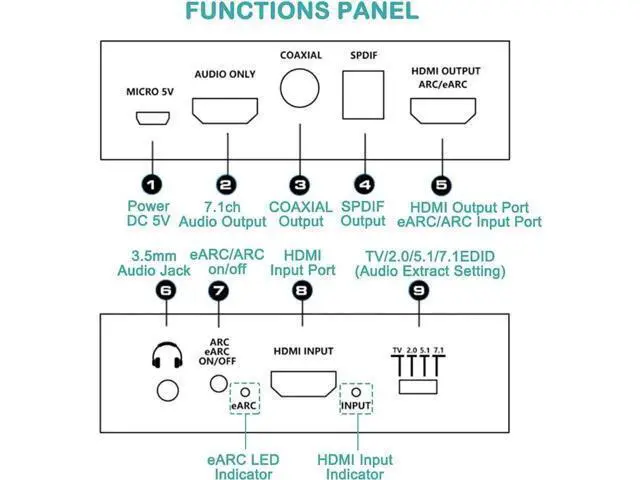

- 4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function.
- Specification
- Power Supply: DC 5v/ 1000mA.
- HDMI Audio Only Port:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
- Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
- Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
- 3.5mm Audio Jack:Analog stereo 2.0ch.
- Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz)
- 8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4)
- 8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4K HDMI Audio Extractor. 4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5 mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range ) pass-through and eARC/ARC Function.. Specification.
Power Supply: DC 5v/ 1000mA..
HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X..
Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1..
Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1..
3.5 mm Audio Jack: Analog stereo 2.0 ch..
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz). 8-bit (4K x 2k@60Hz
RGB 8:8: 8/
YUV 4:4: 4). 8-bit, 10-bit, 12-bit (4K x 2K@60Hz
YCbCr 4:2: 2
/ 4:2: 0).
Power Supply: DC 5v/ 1000mA..
HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X..
Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1..
Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1..
3.5 mm Audio Jack: Analog stereo 2.0 ch..
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz). 8-bit (4K x 2k@60Hz
RGB 8:8: 8/
YUV 4:4: 4). 8-bit, 10-bit, 12-bit (4K x 2K@60Hz
YCbCr 4:2: 2
/ 4:2: 0).
