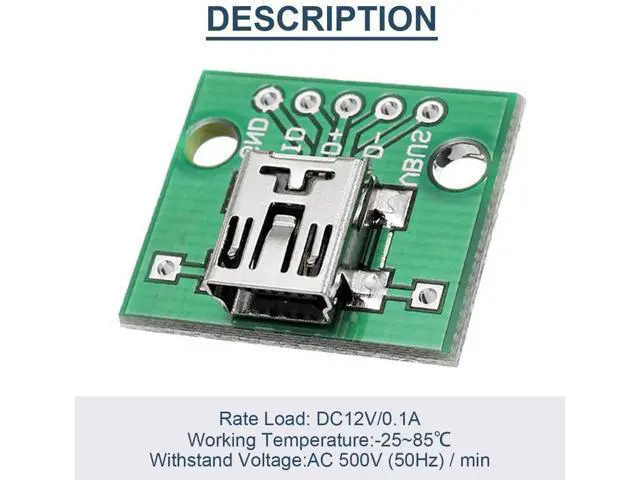

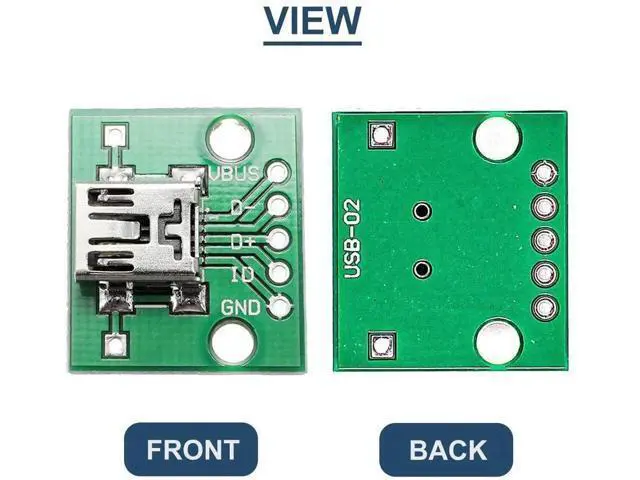

10 Pcs Mini USB Female to DIP Adapter 2.54mm 5 Pin USB 2.0 Mini USB Socket to DIP Converter Breakout Board for DIY Power Supply with 50 Pin Header
- Specification: Rate Load: DC12V / 0.1A
- Working Temperature: -25 to 85 Celsius
- Withstand Voltage: AC 500V (50Hz) / min
- Material: Make of FR4 board and electronic parts, ultra-compact size, stable working performance.

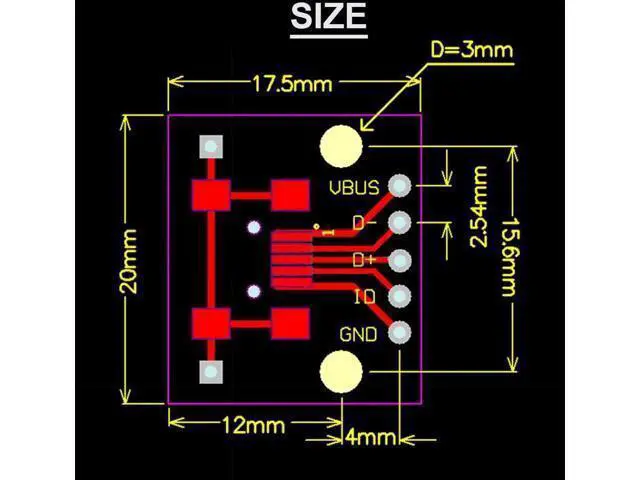

- Size: 17 x 15 mm / 0.67 x 0.59 inch (LxW)

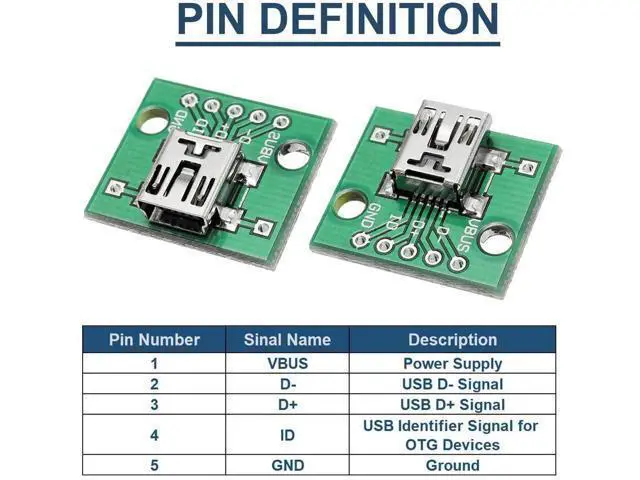

- Pin Pitch: 2.54mm
- Application: Can be applied to DIY USB power supply, breadboard design, for arduino project and etc.

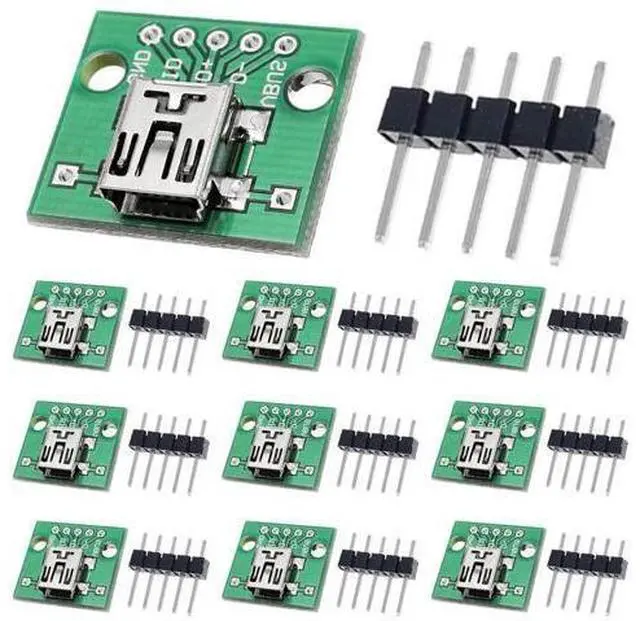

- Package Content: The package comes with 10 x Mini USB Female to DIP Adapter, 1 x 50 Pin Header
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Rate
Load: DC12V / 0.1A.
Working Temperature: -25 to 85 Celsius.
Withstand Voltage: AC 500V (50Hz) / min.
Material: Make of FR4 board and electronic parts, ultra-compact size, stable working performance..
Size: 17 x 15 mm / 0.67 x 0.59 inch (LxW).
Pin Pitch: 2.54 mm.
Application: Can be applied to DIY USB power supply, breadboard design, for arduino project and etc..
Package Content: The package comes with 10 x Mini USB Female to DIP Adapter, 1 x 50 Pin Header
Load: DC12V / 0.1A.
Working Temperature: -25 to 85 Celsius.
Withstand Voltage: AC 500V (50Hz) / min.
Material: Make of FR4 board and electronic parts, ultra-compact size, stable working performance..
Size: 17 x 15 mm / 0.67 x 0.59 inch (LxW).
Pin Pitch: 2.54 mm.
Application: Can be applied to DIY USB power supply, breadboard design, for arduino project and etc..
Package Content: The package comes with 10 x Mini USB Female to DIP Adapter, 1 x 50 Pin Header
