4 Port 2.5G Ethernet Switch with 2x10G SFP+ Slot, 4x2.5G Base-T Ports Compatible with 100/1000Mbps, Mini Size, Metal Unmanaged Fanless Network Switch

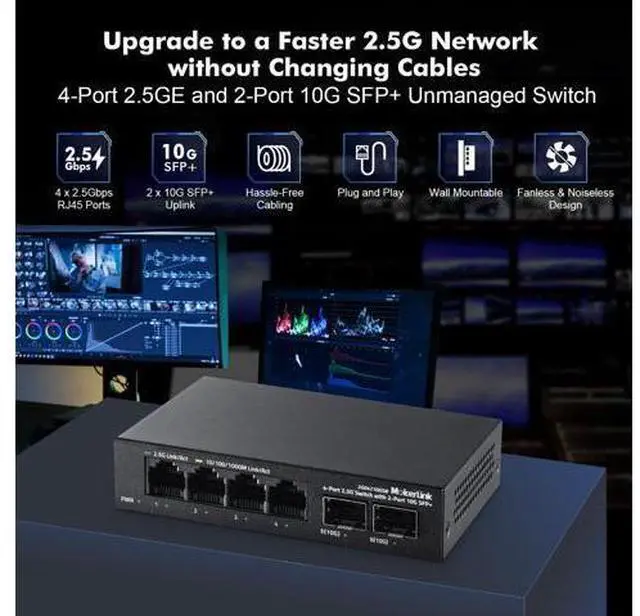

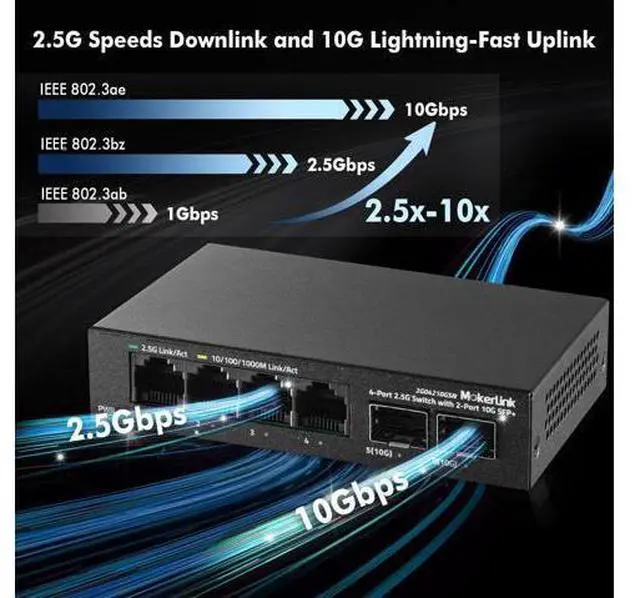

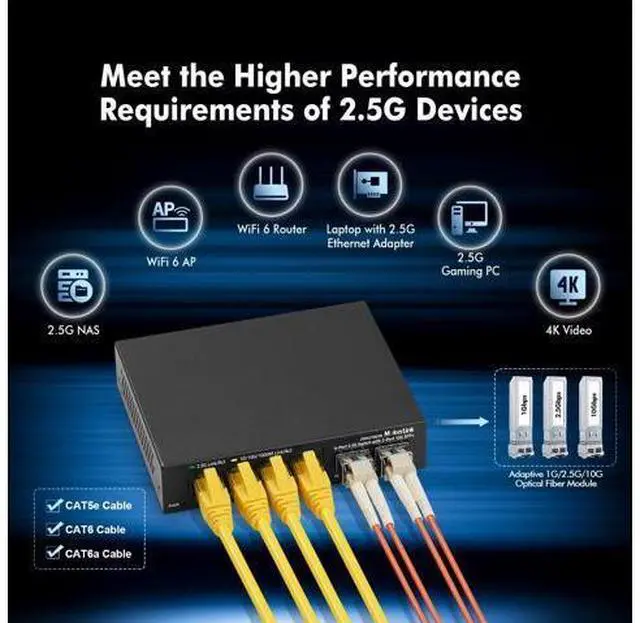

The 2G04210GSN is an unmanaged switch with 4x 2.5G bE and 2x10GbE SFP+ ports. 4 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10G connectivity. Each port automatically detects which speed is needed. 4x 2.5G Ports for WiFi 7/6 or NAS 4× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure. 2x 10G Uplink Slots for Servers or Core Switch 2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity.

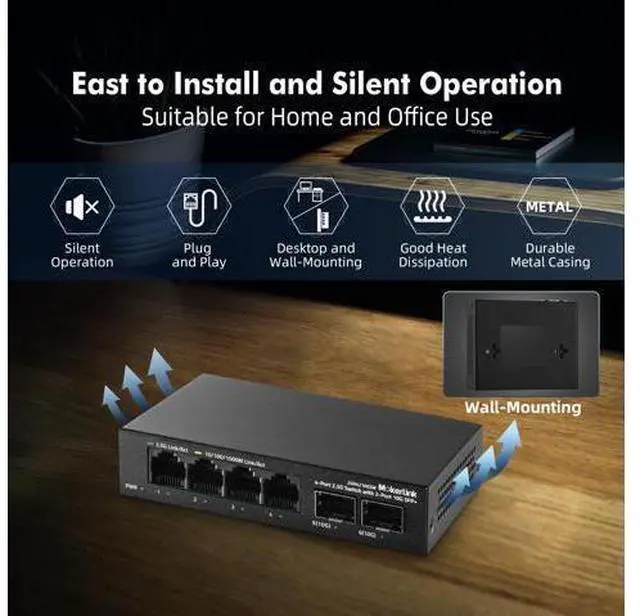

Adaptive 1G, 10G sfp modules that can connect to core servers and switches. Energy efficient With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3 az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length Mounting flexibility Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement. Power and Port Protection With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ethernet ports and power port.

Plug-and-play Automatic connectivity to your PCs or router. No need for an IT expert. Technical Parameter Interface 4* 2.5G RJ45 port + 2 * 10G SFP+ port Port Standard IEEE 802.3 (Ethernet) IEEE 802.3 u (Fast Ethernet) IEEE 802.3 ab (Gigabit Ethernet) IEEE 802.3 z (Gigabit Ethernet) IEEE 802.3 ae (10 Gigabit Ethernet) IEEE 802.3 x (Flow Control) Switching Capacity 60Gbps Packet Forwarding Rate 44.64M pps Packet Buffer 8Mbit MAC Address Table 4K
Surge Protection Surge protection: common mode 4KV, differential mode 2KV (Class A)
Electrostatic ESD: air 8KV, contact 6KV (Class A)
Environment Operating Temperature: 0~40°C,
Storage Temperature: -40 °C to 70 °C,
Operation Humidity: 10%~90%, non condensing,
Storage Humidity: 5%~95%, non condensing Power Supply DC 12V 1A Mainboard Power Consumption 5.34W Structure Information
Product Dimensions: 113.5 *90*25mm
Packaging Dimensions: 175*120*63mm Product
Net Weight: 0.25KG
Product Gross Weight: 0.38KG Installation desktop / Wall mount Fan Quantity 0 Packing List Switch 1pcs, ac adapter 1pcs, instruction manual 1pcs

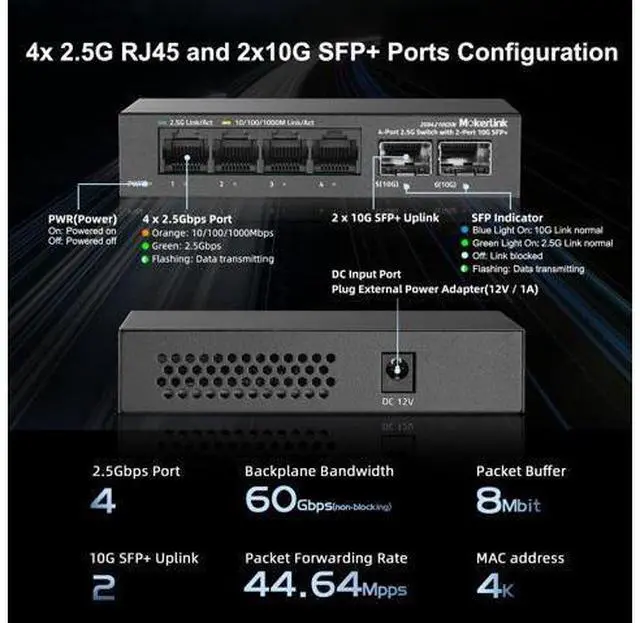

Indicator Lights PWR On: Powered on, Off: Powered off, 1-4 port
Green Light On: 2.5G Link normal, Yellow
Light On: 10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 5-6 SPF+ port
Blue Light On: 10G Link normal, Green Light, On: 2.5G Link normal, Off: Link blocked, Flashing: Data transmitting The 2G04210GSN is an unmanaged switch with 4x 2.5G bE and 2x10GbE SFP+ ports. 4 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10G connectivity. Each port automatically detects which speed is needed. 4x 2.5G Ports for WiFi 7/6 or NAS 4× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure. 2x 10G Uplink Slots for Servers or Core Switch 2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches. Energy efficient With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3 az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length Mounting flexibility Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.

Power and Port Protection With a dedicated and
