6 Port Mini Gigabit PoE Switch with 4 PoE+ Port, 1 Gigaibt RJ45 Uplink, 1 Gigabit SFP, IEEE802.3af/at, Max 65W, Metal Fanless Plug & Play Ethernet Switch

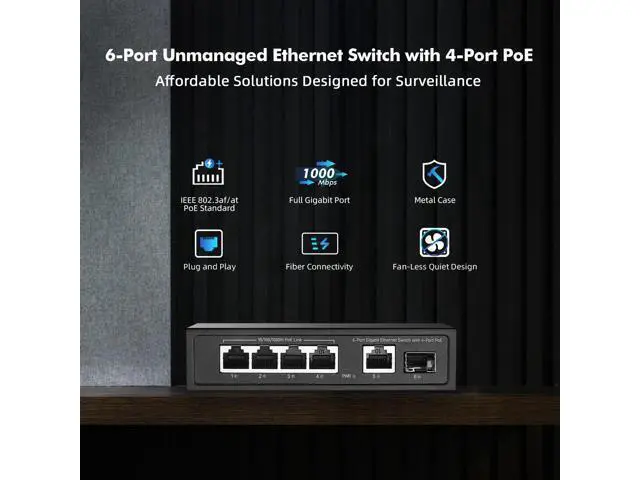

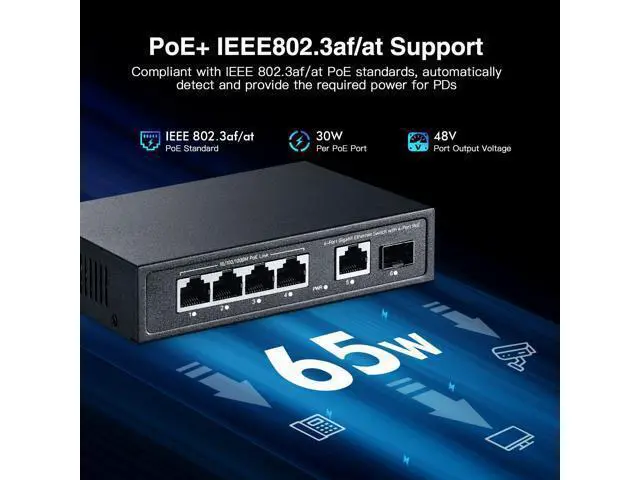

G0602GSP is an 6 ports ethernet switch with 4 ports PoE, The PoE ports fully complies with IEEE 802.3 af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs. Smart PoE+ With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE 802.3 af/at compliant. Total PoE budget up to 65W Full Gigabit Ports Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.

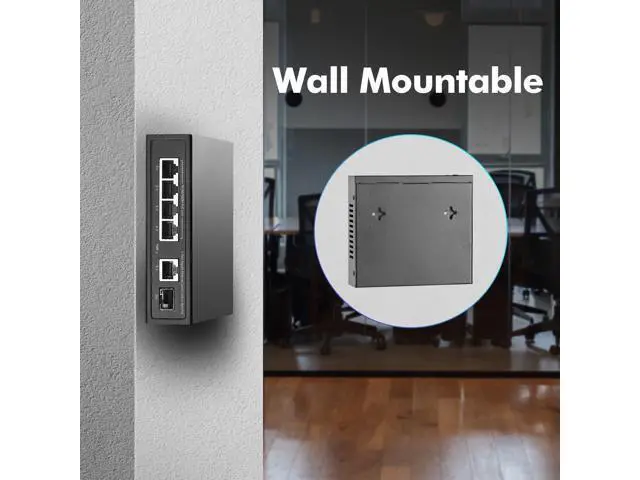

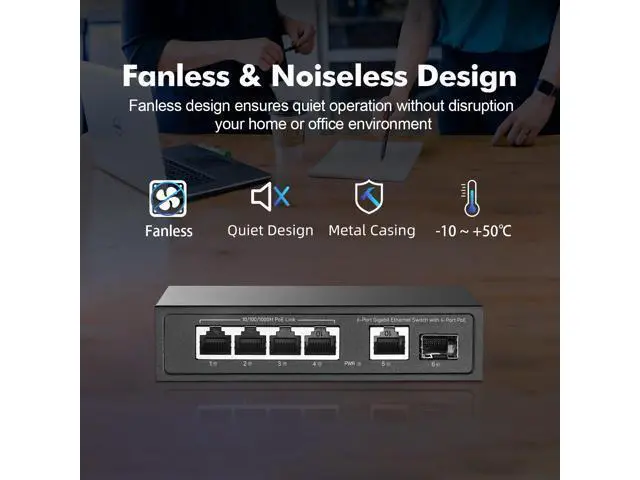

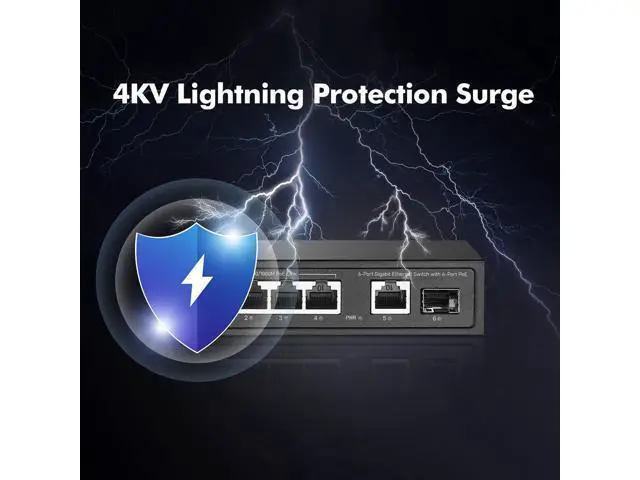

Fanless & Noiseless Design Fanless design ensure noiseless operation without disruption your quiet home or office, and greater reliability over time with fewer parts to fail. Plug and Play The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed. The switch supports fiber optic cable connection for longer transmission distance. Lighting Protection The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system. Desktop and Wall Mount The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.

Product

Specifications

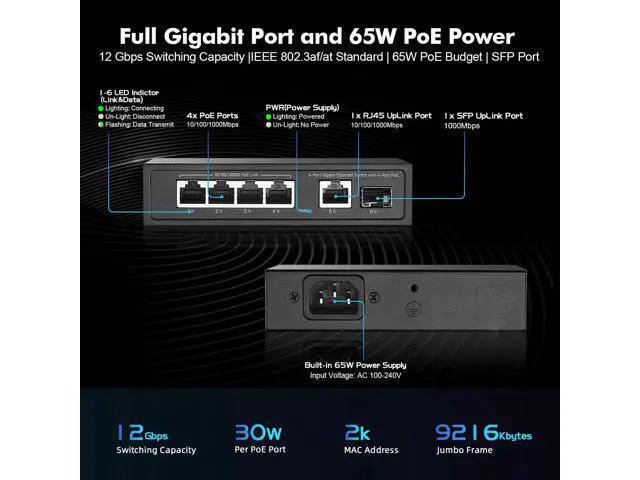

Model G0602GSP Product Name 6-Port Gigabit Ethernet Switch with 4-Port PoE Ethernet 4* Gigabit PoE Ethernet Ports + 1* Gigabit Uplink Ethernet Port + 1 * Gigabit SFP Slot Bandwidth 12Gbps Pack forward rate 8.928M pps MAC address 2K Jumbo Frame 2048bytes Network Protocol IEEE 802.3 (10Base-T), IEEE 802.3 u (100Base-TX), IEEE 802.3 ab (1000Base-TX), IEEE 802.3 x (Flow control) PoE Protocol IEEE 802.3 af( 15.4W ), IEEE 802.3 at (30W)
Network Medium 10Base-T: Cat3, 4, 5 or above UTP(=100m), 100Base-TX: Cat5 or above UTP(=100m), 1000Base-TX: Cat5 or above UTP(=100m), ultimode
fiber: 50/125, 62.5 /125, 100/140µm
Single mode fiber: 8/125, 8.7 /125, 9/125, 10/125µm Working
Environment Working Temperature: -10~50°C,
Storage Temperature: -40~70°C, Working
Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing Indicator PWR (Power), 1-6 Green Light (Link&Data) Structure
Size Product size: 125*115*33mm,
Product weight: 0.5KG Power
Voltage Input voltage: AC100-240V,
Power supply: 52V/ 1.25A (65W) Previous page YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals. YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/ 2.5G /10G switch, Managed switch, etc. 1G/ 2.5G /10G Switch 1G/ 2.5G /10G poe injector Gigabit PoE Switch Industrail din rail switch RackMount PoE Switch Next page G0602GSP is an 6 ports ethernet switch with 4 ports PoE, The PoE ports fully complies with IEEE 802.3 af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs. Smart PoE+ With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE 802.3 af/at compliant. Total PoE budget up to 65W Full Gigabit Ports Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera. Fanless & Noiseless Design Fanless design ensure noiseless operation without disruption your quiet home or office, and greater reliability over time with fewer parts to fail.
