4 Port 2.5G Ethernet Switch with 2 Port 10G SFP+ Slot, 4 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Small Network Switch

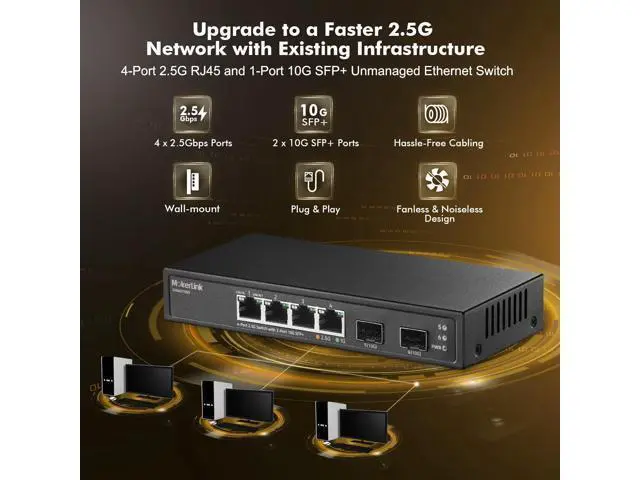

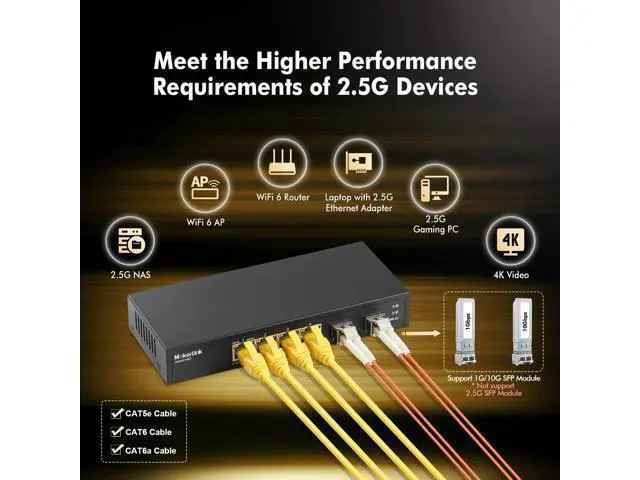

2G040210GS is an unmanaged multi-gigabit ethernet switch with 4x10/100/1000/2500Mbps ethernet ports and 2x 10Gbps SFP+ port. Meeting your needs for high speed and long distance transmission. It is a best choice to boost your network environments performance and efficiency. Four 2.5G Ethernet Ports The 4x 2.5 g ethernet ports with 45Gbps switching capacity meet the increasing demand for bandwidth that supports intensive applications. Two10G SFP+ Port The 2x10G SFP+ ports provide higher rates and longer data transmission distances. SFP slots are not encrypted and you can use any brand of sfp module. 2.5 x faster using same cabling A simpler and cost effective upgrade path to 2.5G Ethernet thanks to backwards compatibility with 1G/100M networks using existing Cat 5e cabling.

Plug and Play plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ethernet ports. Fanless & Silent Operation Fanless and metal case design improve energy efficiency and lower financial cost. It is a good solution for switches without causing much noise. Wall-mount/Desktop steel case Four holes in the bottom of the switch for wall mount. perfect solution for a variety of environments. Lighting Protection The 4 port 2.5 g switch fetures with 6KV power port surge protection and 4KV network port surge protection can adapt to harsh environment. Wide Operating Temperature Supports working at ambient temperatures of -10 °C to +55 °C, improving system robustness, adapted to harsh environments.

Product

Specifications

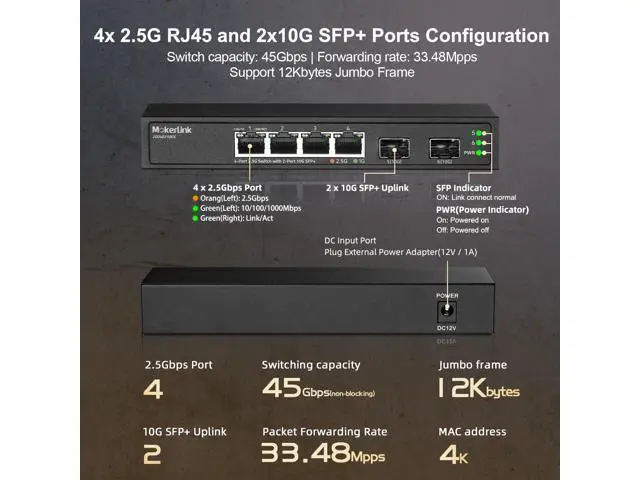

Ports 4 x 2.5G RJ45 ports + 2 x 10G SFP+ ports, 1 x 12VDC power connector Transmission Method Store and forward LED Indicators PWR (Power indicator)
On: Powered on, Off: Powered off. 1-4 Network port yellow indicator
On: 2.5G Link connect normal, Off: Link off, Flashing: data transmitting. 1-4 Network port green indicator
Lighting: Connecting, Flashing: Data Transmit, Un-Light: Disconnect, Flashing: data transmitting Power Input DC12V/ 1.5A Total Power Budget =5W Dimensions (L x W x H) 140*93*28mm Weight 0.33 kg Switching capacity 45Gbps Packet forwarding rate 33.48M pps MAC address table 4K Buffer 8.1M bit Jumbo Frame 10Kbytes Working environment
Operating temperature: -10~55°C,
Storage temperature: -40~70°C, Operating
humidity: 10%~90%, no condensation
Storage humidity: 5%~90%, no condensation
Network medium 10Base-T: Cat3, 4, 5 or above UTP/STP(=100m), 100Base-TX: Cat5 or higher UTP/STP(=100m), 1000Base-TX: Cat5 or higher UTP/STP(=100 M), Multimode
optical fiber: 50/125, 62.5 /125, 100/140um, Single-mode
optical fiber: 8/125, 8.7 /125, 9/125, 10/125um 2G040210GS is an unmanaged multi-gigabit ethernet switch with 4x10/100/1000/2500Mbps ethernet ports and 2x 10Gbps SFP+ port. Meeting your needs for high speed and long distance transmission. It is a best choice to boost your network environments performance and efficiency. Four 2.5G Ethernet Ports The 4x 2.5 g ethernet ports with 45Gbps switching capacity meet the increasing demand for bandwidth that supports intensive applications. Two10G SFP+ Port The 2x10G SFP+ ports provide higher rates and longer data transmission distances. SFP slots are not encrypted and you can use any brand of sfp module. 2.5 x faster using same cabling A simpler and cost effective upgrade path to 2.5G Ethernet thanks to backwards compatibility with 1G/100M networks using existing Cat 5e cabling. Plug and Play plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ethernet ports. Fanless & Silent Operation Fanless and metal case design improve energy efficiency and lower financial cost. It is a good solution for switches without causing much noise. Wall-mount/Desktop steel case Four holes in the bottom of the switch for wall mount. perfect solution for a variety of environments.

Lighting Protection The 4 port 2.5 g switch fetures with 6KV power port surge protection and 4KV network port surge protection can adapt to harsh environment. Wide Operating Temperature Supports working at ambient
