Aluminum Case for Sigma Single Board Computer (Wall-Mounted)

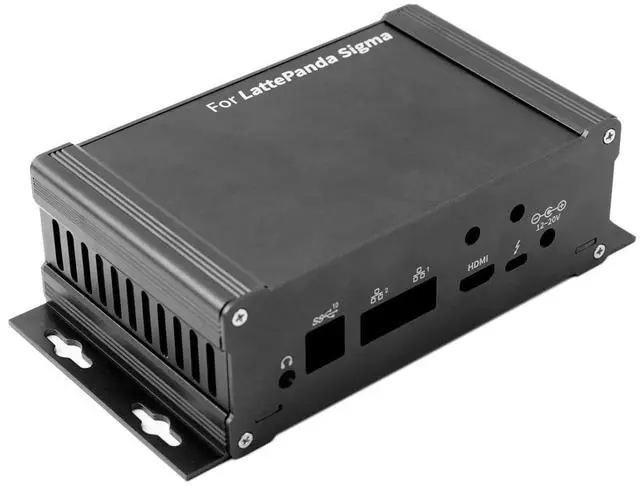

Product description The aluminum case designed for the LattePanda Sigma single board server, is made from all-metal material for superior durability. Its wall-mounted design and easy access to all ports and slots ensure functionality and flexibility. A perfect choice for safeguarding LattePanda Sigma SBC. All-Metal Material for Superior Protection and Stability The case is made of durable aluminum alloy material, and its all-metal construction gives it the advantage of being sturdy and resistant to impact. The surface of the case undergoes processes such as bright black anodizing and sandblasting, making it even more scratch-resistant, wear-resistant, and adding a sense of stability.

Wall-Mounted Design for Convenient Placement and Stability The wing-shaped fixing piece design allows the case to be placed smoothly on a desk or fixed to a wall. Expandability and Versatility The LattePanda Sigma aluminum alloy case not only provides comprehensive protection and stability but also offers users more expandability. The case has multiple reserved openings on it, allowing users to expand and connect other devices according to their needs, achieving more functions and expandability.
Note: The case is only compatible with the LattePanda Sigma. Installation process
1. Loosen the side cover A of the metal casing Unscrew the 4 screws on side cover A, as shown in Figure 1, to facilitate the subsequent assembly of metal casing components. If necessary, the screws can also be directly removed.
2. Remove the side panel B and support plate C of the metal case Unscrew the 4Pcs screws of side panel B as shown in Figure 2, remove side panel B first, and then remove support plate C as shown in Figure 3, and unscrew the 4Pcs screws of support plate C
3. Mounting the board onto support plate C Place the LattePanda Sigma on support plate C as shown in Figure 3 (ensure that the heat dissipation airflow direction is aligned with the arrow), and then tighten the 4Pcs screws as shown in Figure 4

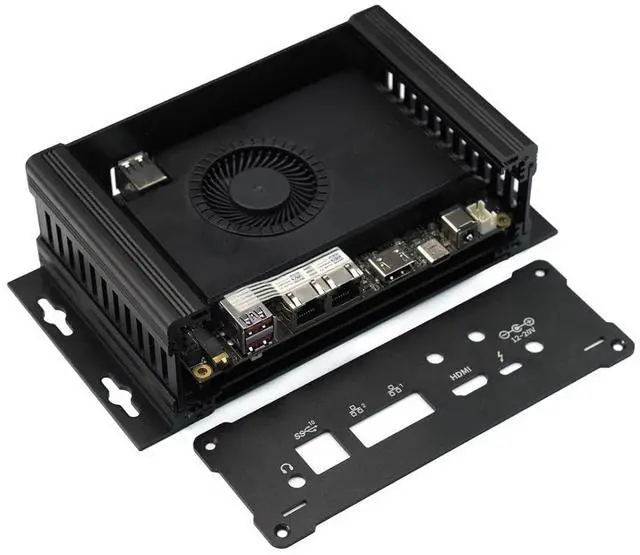

4. Installing the board into the metal case Take out the board mounted on support plate C, align the direction with the metal case D as shown in Figure 5, and then push it into the case (ensure to slide it along the slots) as shown in Figure 6
5. Installing side panel B of the metal case Remove the side cover B of the metal casing. Align it with the interface on the LattePanda Sigma, as shown in Figure 7, and align the two clasps on tray C. Then, tighten the 4 screws.
6. Tighten the side cover A of the metal casing Align side cover A with the interface on the LattePanda Sigma and the two clasps on tray C, as shown in Figure
8. Then, tighten the 4 screws (installation completed).
SPECIFICATION:
Dimensions: 106 mm (Length) x 197mm (Width) x 60mm (Height)
Material: Aluminum alloy
Weight (Case): 555g
Compatible: LattePanda
Sigma Shipping List: Aluminum Alloy Case for LattePanda Sigma x1 See More
