DIXSG KVM Switch 3 Monitors 3 Computers 8K@60Hz, HDMI + 2 Displayport Triple Monitor KVM Switches for 3PCs Share 3 Monitors and 4 USB 3.0 Devices, Wired Remote and Power Adapter Included

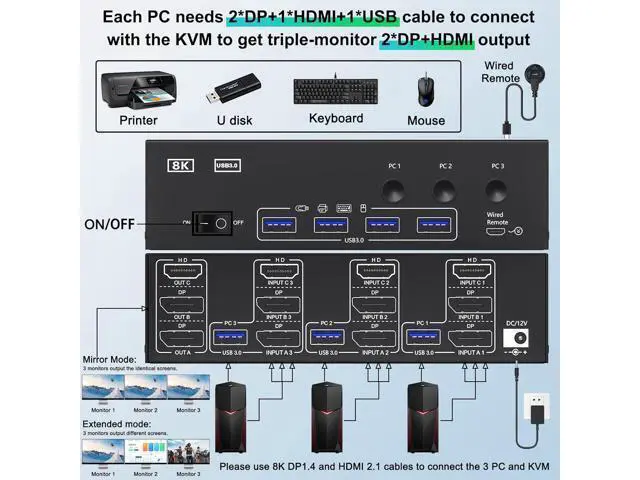

8K Triple Monitor KVM Switch 3 Computers Share 3 Monitors & 4 USB 3.0 Device 3 computers share 3 monitors and 4 USB device. Supports wired or wireless keyboard and mouse. USB 3.0 with ultra-fast data transfer up to 5Gb/s. Support resolutions up to 8K@60Hz, 4K@144Hz. Connection Diagram of 3
Monitors KVM Switch Connect Steps:
1. Connect 2 DP+1 HDMI +1 USB cable from PC1 to INPUT A1, INPUT B1, INPUT C1, USB 3.0; From PC2 to INPUT A2, INPUT B2, INPUT C2, USB 3.0; From PC3 to INPUT A3, INPUT B3, INPUT C3, USB 3.0
2. Connect 3 monitors to OUT A, OUT B, OUT C separately, then plug keyboard, mouse and other USB devices into USB ports on the front of the 3 monitor displayport HDMI KVM switch
3. Plug the included 1.5M wired remote and Power cable into " SELECT" port and "DC 12V" port separately How to set the output mode
Windows OS: Press the shortcut key "WIN+P" and then select "Extension" or "mirror"
Mac OS: Set [Mirror
Mode]: Select [A-p-p-l-e Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display]; Set [Extended
Mode]: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.
Q & A:
Q: Is the KVM Switch compatible with computers or laptops only with USB-C ports?
A: Yes, but you need purchase an additional USB-C to DP/HDMI adapter or USB-C docking station to connect the KVM to your USB-C computer/laptop.
Q: Why do some monitors work fine and others not when the cables are connected the same way?
A: This depends on factors such as the version of cable used, the length of the individual cables, and whether adapters are used. It is recommended to use HDMI 2.1, DP 1.4 cable, and the length should not exceed 1.5 m.
Q: Can the KVM switch's USB port be used for high-power USB devices such as hard drives?
A: Yes, but please plug in the 12V power adapter (included) for stable performance.
Q: Does the DP 1.4 KVM switch support Hotkey switching?
A: No, it DOES NOT support Hotkey switching, but supports button switch and wired remote ( 1.5 m)
Q: Does this KVM switch support EDID emulation?
A: NO, It does not support EDID emulation. 8K Triple Monitor KVM Switch 3 Computers Share 3 Monitors & 4 USB 3.0 Device Connection Diagram of 3
Monitors KVM Switch Connect Steps:
1. Connect 2 DP+1 HDMI +1 USB cable from PC1 to INPUT A1, INPUT B1, INPUT C1, USB 3.0; From PC2 to INPUT A2, INPUT B2, INPUT C2, USB 3.0; From PC3 to INPUT A3, INPUT B3, INPUT C3, USB 3.0
2. Connect 3 monitors to OUT A, OUT B, OUT C separately, then plug keyboard, mouse and other USB devices into USB ports on the front of the 3 monitor displayport HDMI KVM switch
3. Plug the included 1.5M wired remote and Power cable into " SELECT" port and "DC 12V" port separately
