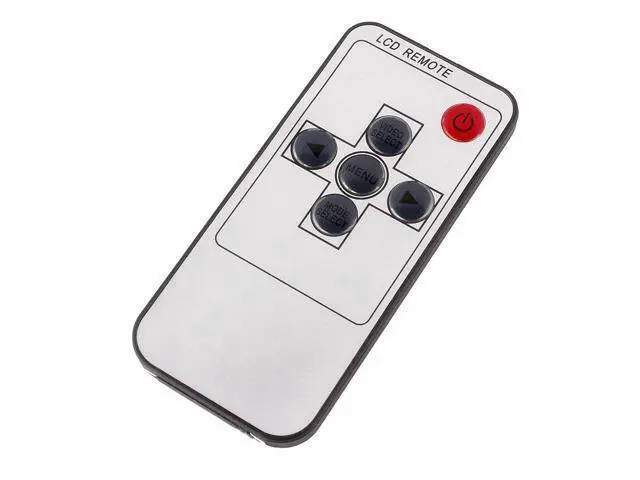

7 inch for Raspberry Pi Banana/Orange Pi mini computer LCD Screen Display Monitor Remote Driver Control Board 2AV VGA Product description General
Specifications

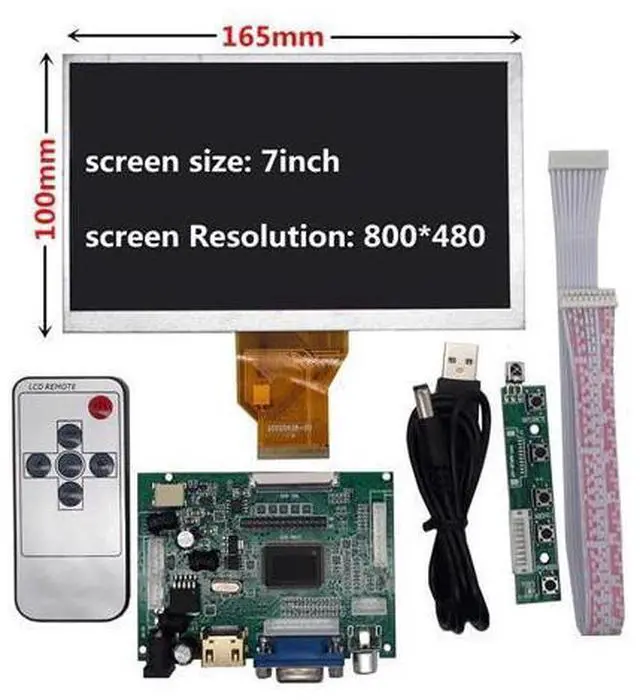

LCD size: 7.0 inches (Diagonal)
Driver element: a-Si TFT active matrix
Resolution: 800 (RGB) *480
Display mode: Normally white, Trans-missive
Dot pitch: 0.05 (W) x 0.15 (H) mm

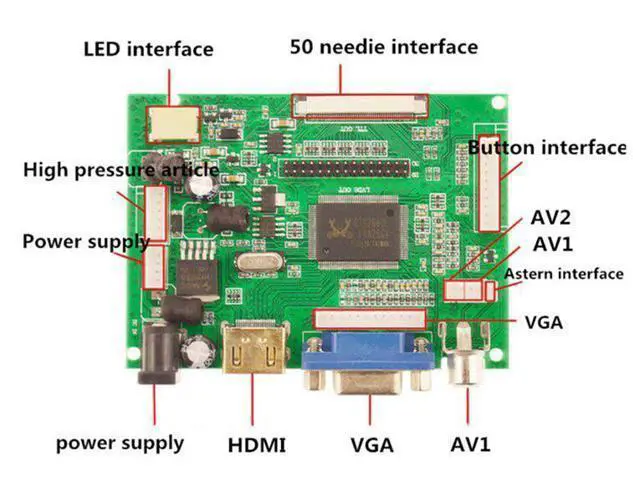

Interface: Digital Driver Board Interfaces 1. Power supply(5-12V 2A), The LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin: B01GDX6PW4 )from usThe LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin: B01GDX6PW4 )from us. 2. 3. VGA Connector 4. AV1 5. AV1+AV2 6. Keyboard 7. TTL Signal 8. LVDS Signal 1/2 ch 6bit 8bit 9.12V Backlight 10.
Inverter Connector Notice 1: Power supply NOT included, without Touch Panel, if need Touch Panel, please contact us.
Notice 2: This controller board support Automatically switch to AV2 (View Reversing camera).
Operating voltage: Power supply(5-12V >1A ), can be directly from the computer USB port or power bank! (special reminder: the use of the power plug polarity requirements for: inside positive and outside negative-Positive and negative can not be reversed, so as not to damage the circuit board)

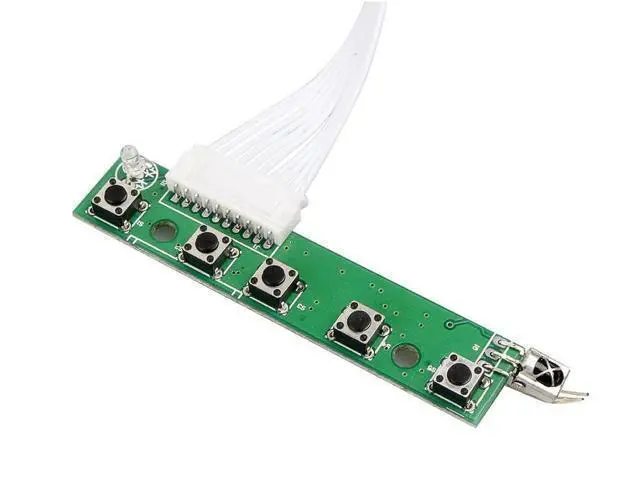

Notice 3: The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video window. adminAccountId=231085395;
