Video 4K Loop Out MI Video Capture Card Video Tuner Card Recorder Box Game Recorder Box for PS4 Live Streaming

4K MI Video Capture Card MI to USB Video Grabber with Local Loop Out for

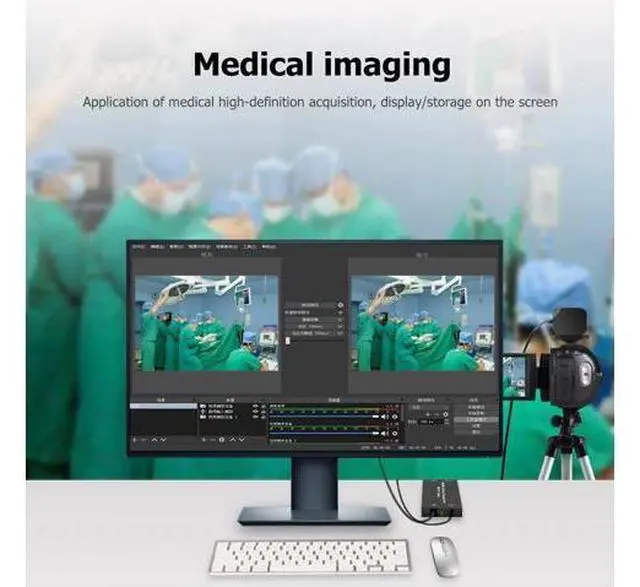

Game Recording Live Streaming Description: This capture card can capture both MI video and MI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

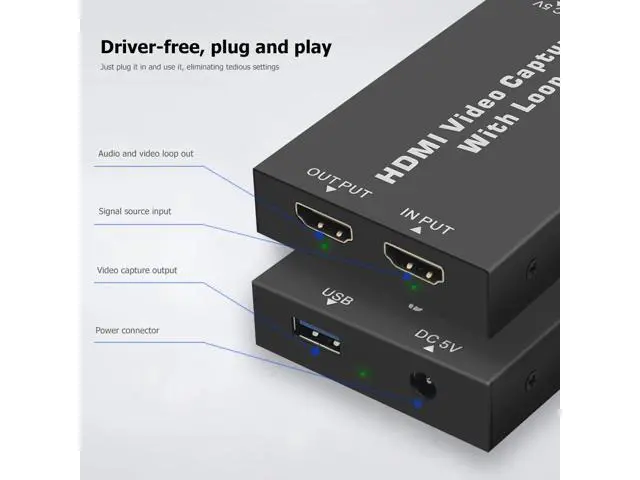

Feature: Support MI local loop out; Support maximum input resolution up to 4K; Support maximum output resolution up to 1080P; When supporting the use of standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution); Support most acquisition software, such as for VLC, for OBS, for Amcap; Support for Windows, for Android, for MacOS; Comply with USB video UVC specification; Comply with USB audio UAC specification; Small size and easy to carry.
Specification: MI
input resolution: up to 4K
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum 1080P
Supported audio format: L-PCM
Input cable length: 15 meters, AWG26 MI standard cable
Maximum working current: 0.7A /5V
DC Operating temperature range: -10 to +55
Size: 94x60x17mm/ 3.70 x 2.36 x 0.67"
Weight: 165g
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor. 1 X Video Capture Card 1 X Power Cable 1 X USB Cable 1 X Manual relateproductdetail/]
