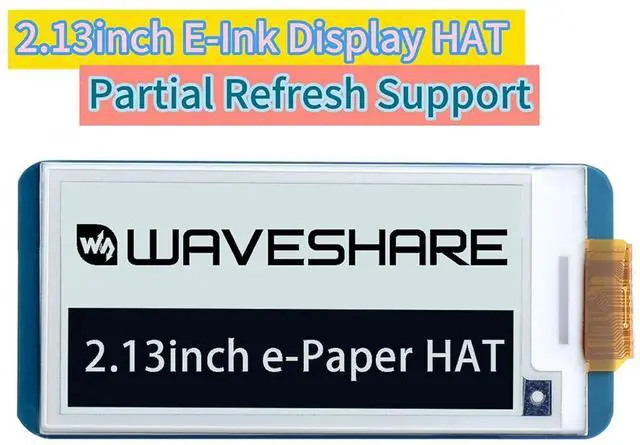

2.13inch E-Ink Display HAT V4 250x122 Pixel E-Paper for Raspberry Pi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Black/White Two Display Colors, Support Partial Refresh
- This is 2.13inch E-Ink Display HAT with RPi 40PIN GPIO extension header, compatible with Raspberry Pi series boards (includes RPi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W,etc. ) and compatible with Jetson Nano.

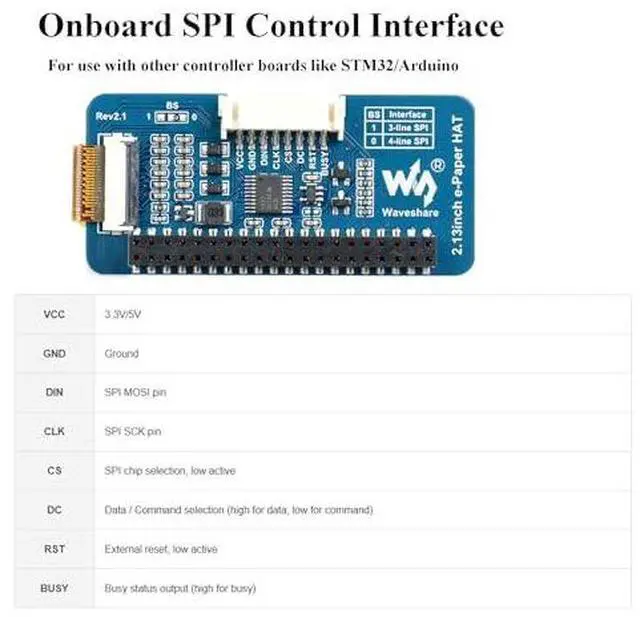

- 250x122 resolution, Black and White Two Display colors, with embedded controller, communicating via SPI interface, supports partial refresh. SPI interface, for connecting with controller boards like Ardui/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
- IMPORTANT Version Notice: The driver board is Rev2.1 (Version 2.1), which is independent of the screen version. Currently, there is only Rev2.1 (Version 2.1) for the driver board and QC label V4 is for the screen version, QC label V4 is currently being shipped.
- Comes with online development resources and manual (driver board circuit diagram, examples ):
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description 250x122, 2.13 inch E-Ink display HAT for Raspberry Pi, SPI interface Features at a glance No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with controller boards like Arduino/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
) Standby Current <0.01uA (almost none) Viewing Angle > 170° Outline Dimensions 65 × 30.2 mm Display Size 48.55 × 23.71 mm Dot Pitch 0.194 × 0.194 mm 2.13 inch e-Paper HAT 2.13 inch e-Paper HAT (B) 2.13 inch e-Paper HAT+ 2.7 inch e-Paper HAT 7.5 inch e-Paper HAT Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 583 4.2 out of 5 stars 19 4.9 out of 5 stars 19 4.5 out of 5 stars 48 4.4 out of 5 stars 38 Price $ 23.99 $23.
99 $ 19.21 $19. 21 $ 25.91 $25. 91 $ 23.03 $23. 03 $ 67.19 $67. 19 Size 2.13 inch 2.13 inch 2.13 inch 2.7 inch 7.5 inch Resolution 250×122 250×122 250×122 264×176 800×480 Display Color black, white red, black, white black, white black, white black, white Partial Refresh no data Grey Scale 2 2 2 4 2 Full Refresh Time (s) 2 15 2 6 5 Display Size (mm) 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 57.29 × 38.19 158.18 × 118.64 Outline Dimension (mm) 65.0 × 30.2 65.0 × 30.2 65.0 × 30.5 85.0 × 56.0 170.2 × 111.2 Interface SPI SPI SPI SPI SPI
Specifications
Operating Voltage 3.3V /5V Interface 3-wire SPI, 4-wire SPI Resolution 250 × 122 pixels Display Color black, white Grey Scale 2 Partial Refresh Time 0.3 s Full Refresh Time 2s Refresh Power 26.4 mW (typ.) Standby Current <0.01uA (almost none) Viewing Angle > 170° Outline Dimensions 65 × 30.2 mm Display Size 48.55 × 23.71 mm Dot Pitch 0.194 × 0.194 mm 2.13 inch e-Paper HAT 2.13 inch e-Paper HAT (B) 2.13 inch e-Paper HAT+ 2.7 inch e-Paper HAT 7.5 inch e-Paper HAT Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 583 4.2 out of 5 stars 19 4.9 out of 5 stars 19 4.5 out of 5 stars 48 4.4 out of 5 stars 38 Price $ 23.99 $23.
99 $ 19.21 $19. 21 $ 25.91 $25. 91 $ 23.03 $23. 03 $ 67.19 $67. 19 Size 2.13 inch 2.13 inch 2.13 inch 2.7 inch 7.5 inch Resolution 250×122 250×122 250×122 264×176 800×480 Display Color black, white red, black, white black, white black, white black, white Partial Refresh no data Grey Scale 2 2 2 4 2 Full Refresh Time (s) 2 15 2 6 5 Display Size (mm) 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 57.29 × 38.19 158.18 × 118.64 Outline Dimension (mm) 65.0 × 30.2 65.0 × 30.2 65.0 × 30.5 85.0 × 56.0 170.2 × 111.2 Interface SPI SPI SPI SPI SPI
