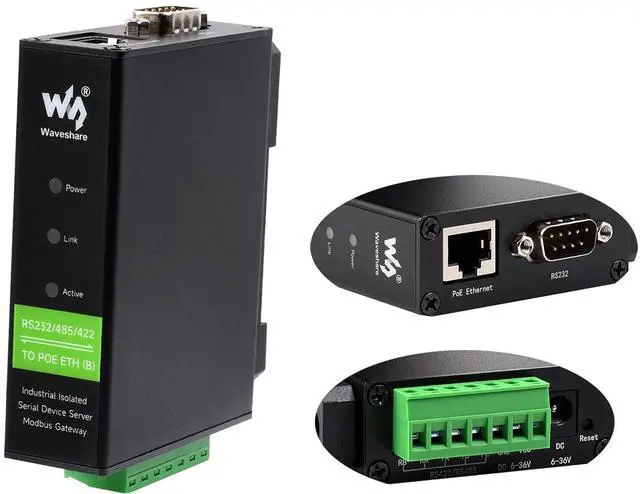

waveshare Industrial Isolated Rail-Mount RS232/485/422 Serial Server, RS232/485/422 to RJ45 Ethernet Module with POE, TCP/IP to Serial Converter, Modbus Gateway Support

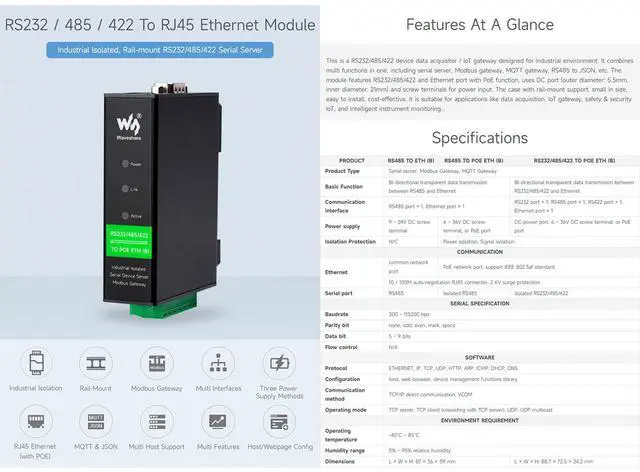

Features This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port with PoE function, uses
DC port (outer diameter: 5.5 mm, inner
diameter: 21mm) and screw terminals for power input.
Model: RS232/485/422 TO POE ETH (B)
Product type: Serial server, Modbus gateway, MQTT gateway

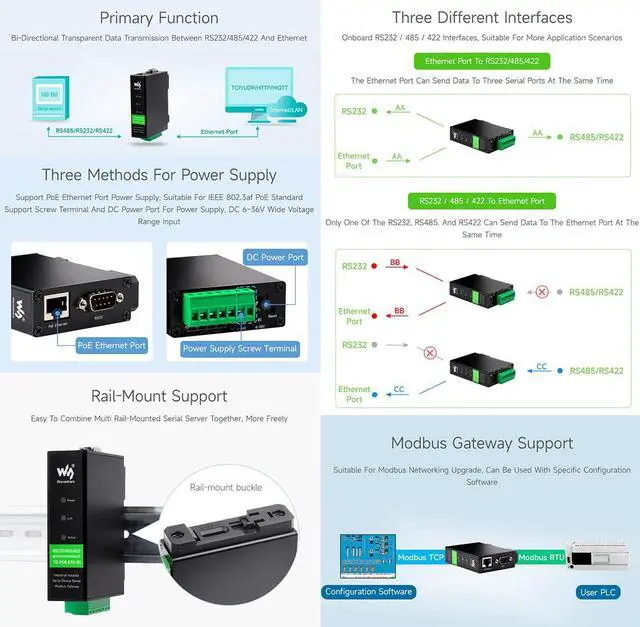

Primary function: Realize the bidirectional transparent transmission function of RS232/485/422 to
Ethernet Communication interface: RS232/485/422 x 1, Ethernet port x 1
Power supply: Screw terminal DC 6~36V or PoE network port

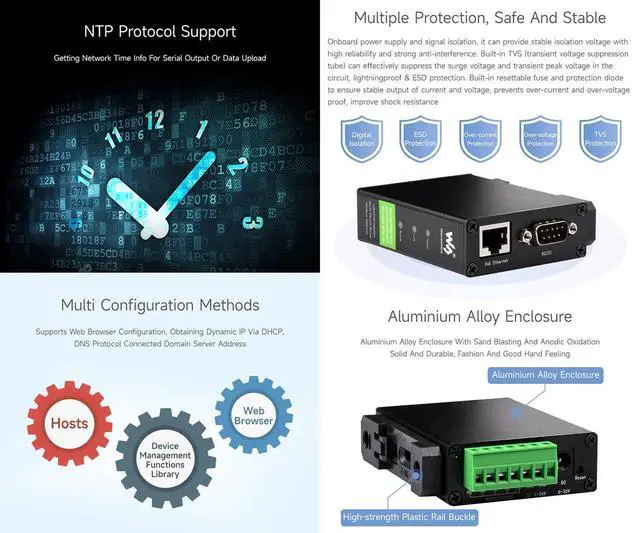

Isolation protection: Power isolation, signal isolation protection
Communication interface Ethernet: PoE Ethernet port, support IEEE 802.3 af standard 10 / 100M self-adaptive RJ45 interface, 2KV surge protection

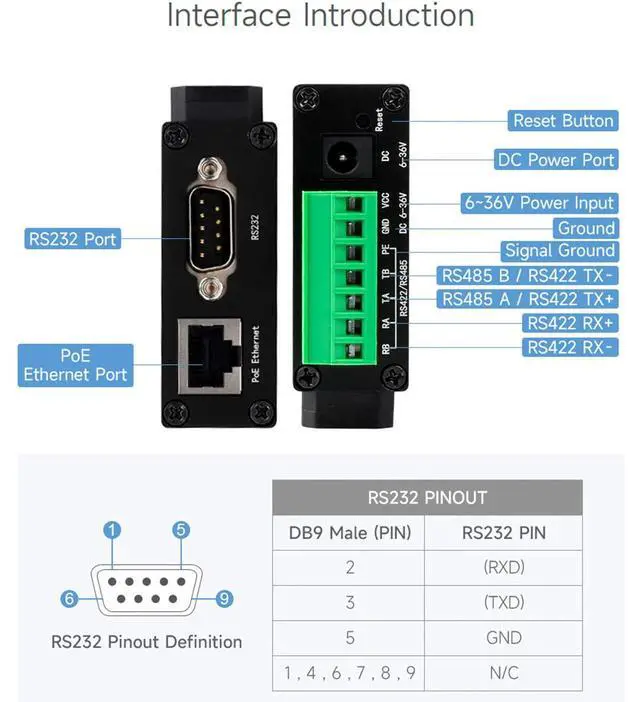

Serial port: Isolated RS232/485/422 Serial parameters
Baud rate: 300 ~ 115200 bps
Parity bit: none, odd parity, even parity, mark, space
Data bits: 5 ~ 9 bits
Flow Control: no flow control
Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method: PC configuration, WEB browser, device management function library
Communication method: TCP/IP direct communication, virtual serial port mode

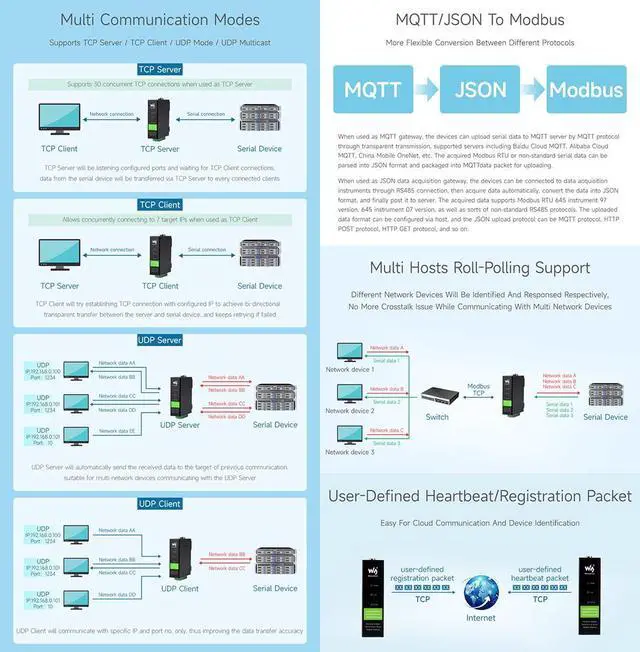

Operating mode: TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
Other Operating temperature: -40 ~ 85
Humidity range: 5% ~ 95% relative humidity

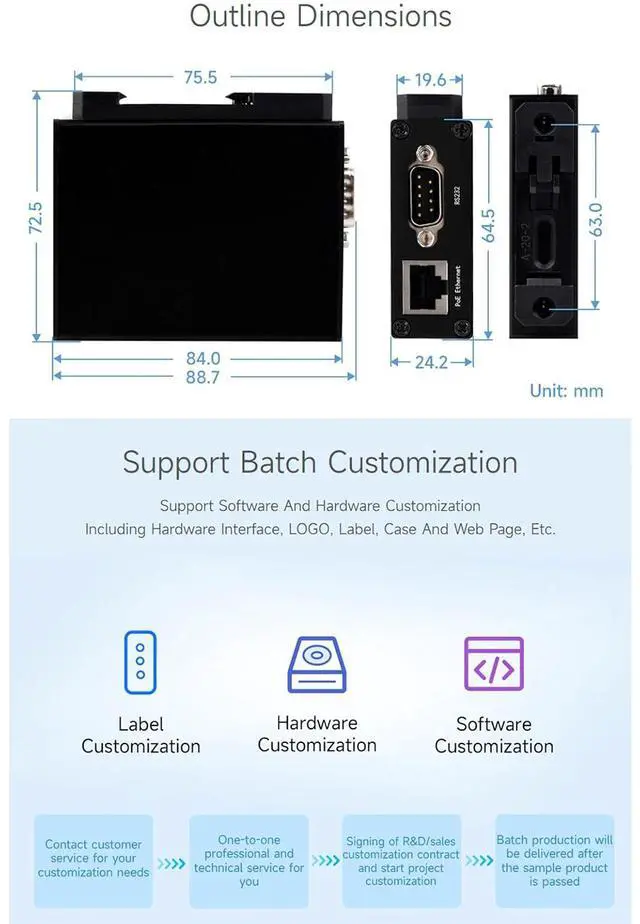

Dimensions: L x W x
H: 88.7 x 64.5 x 24.2 mm How-to-use document/User
Manual: //bit. ly/3AGuDCQ Package Content RS232/485/422 TO POE ETH (B) x1
