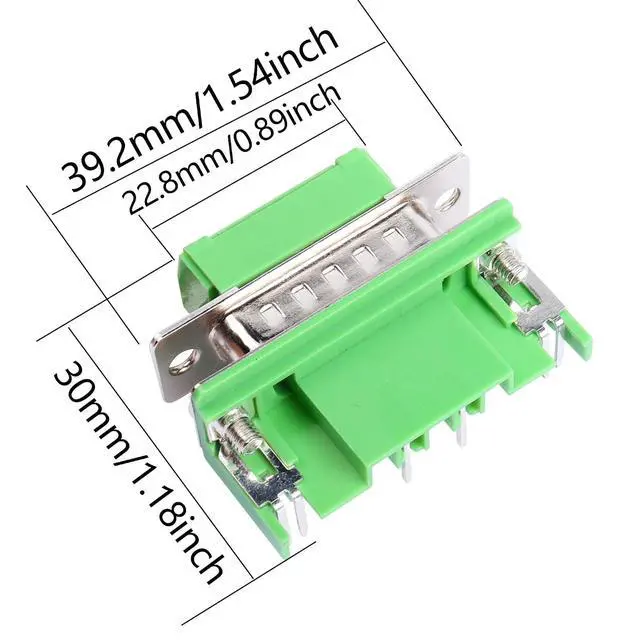

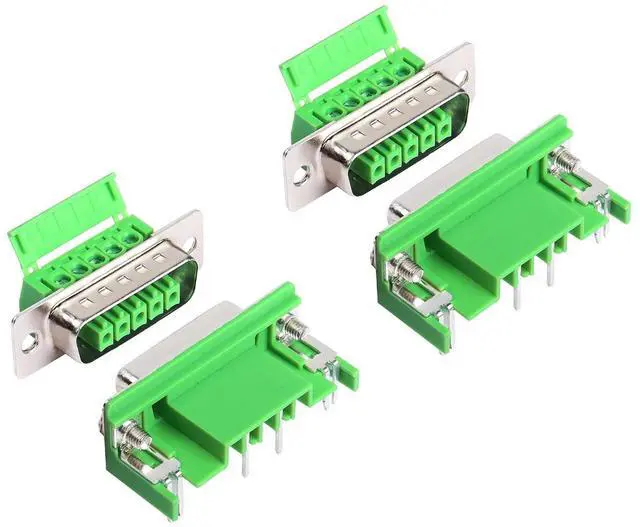

2 Sets 3.5mm DB15 5 Pin Terminal, 300V 8A 5-Pole 3.5mm Terminal Blocks Connector, 15DGB DB15 3.5mm Pitch 5P Screw Terminals
- DB15 5-Pole terminal pitch: 3.5mm. One set: socket + wiring female head. 2 sets/package. Suitable for electrical connection, bid farewell to traditional wiring, bid farewell to dangerous, safe wiring; DB15 3.5mm 5P ground circuit terminal. Rated voltage & rated current: 300V/8A, 250V/7A. Wire range: 28-16AWG; Simple and quick wiring, just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires; Use high-quality environmental protection plastic PA66 high temperature resistant V0 flame retardant material, temperature range is -40 - +105; Steel screw environmentally friendly electroplating,no slippage. Surface nickel plating treatment,corrosion resistance,high stability
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description:
1.

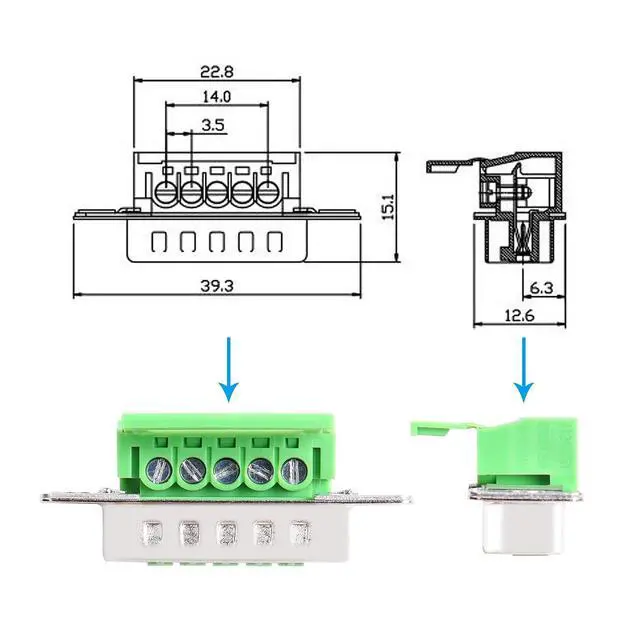

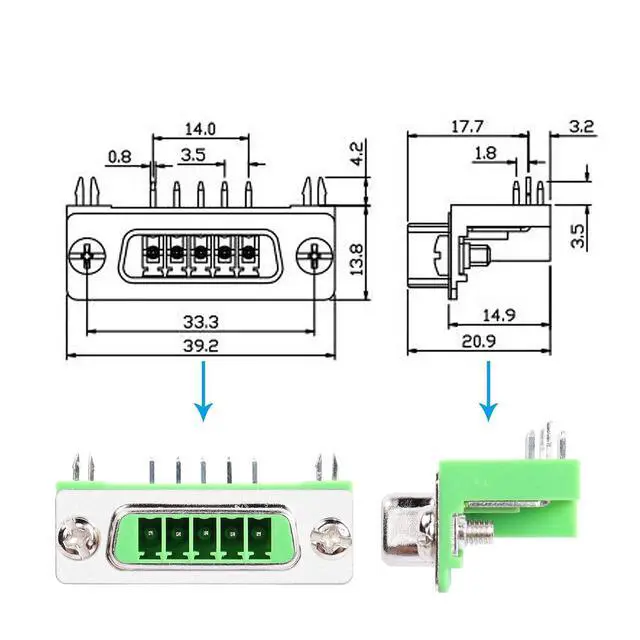

Pitch: 3.5 mm.
2.
Poles: 5P.
3. Rated voltage
& rated current: 300V/8A, 250V/7A.
4.
Wire Range: 28-16AWG.
5.

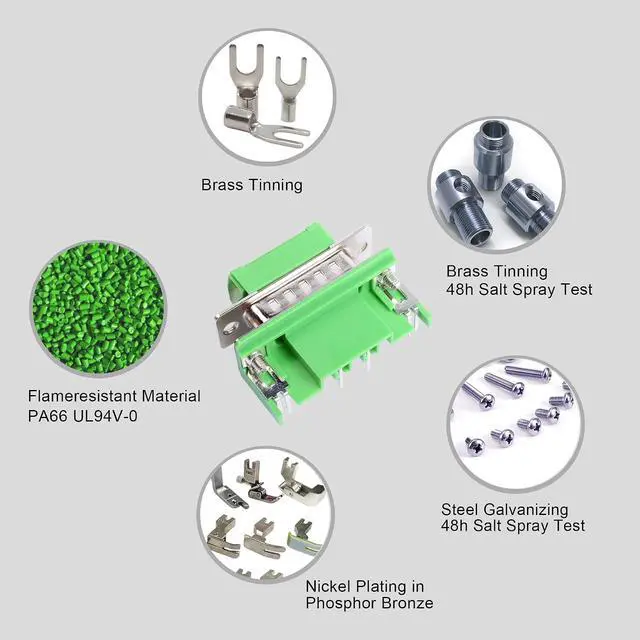

Screw: M2, Steel, A3, Zinc plated.
6.
Contact Material: Phosphor bronze, Nickel plated.
7.
Cage: Brass, Nickel plated.
8.
Plastic Parts: PA66 UL94V-0.
9.
Temperature Range: -40 - +105.
10.
Wire Stripping Length: 6-7mm.
11.
Color: Green.

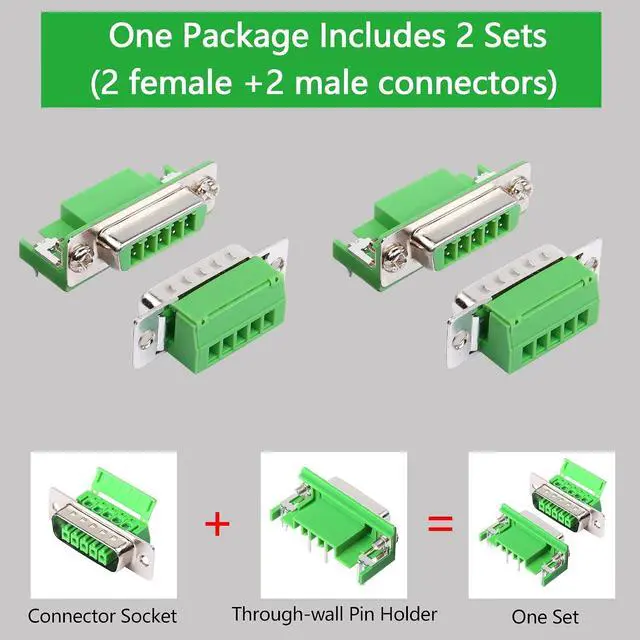

Package includes: 2 Sets x DB15 3.5 mm 5 Pin Terminals
1.
Pitch: 3.5 mm.
2.
Poles: 5P.
3. Rated voltage
& rated current: 300V/8A, 250V/7A.
4.
Wire Range: 28-16AWG.
5.
Screw: M2, Steel, A3, Zinc plated.
6.
Contact Material: Phosphor bronze, Nickel plated.
7.
Cage: Brass, Nickel plated.
8.
Plastic Parts: PA66 UL94V-0.
9.
Temperature Range: -40 - +105.
10.
Wire Stripping Length: 6-7mm.
11.
Color: Green.
Package includes: 2 Sets x DB15 3.5 mm 5 Pin Terminals
