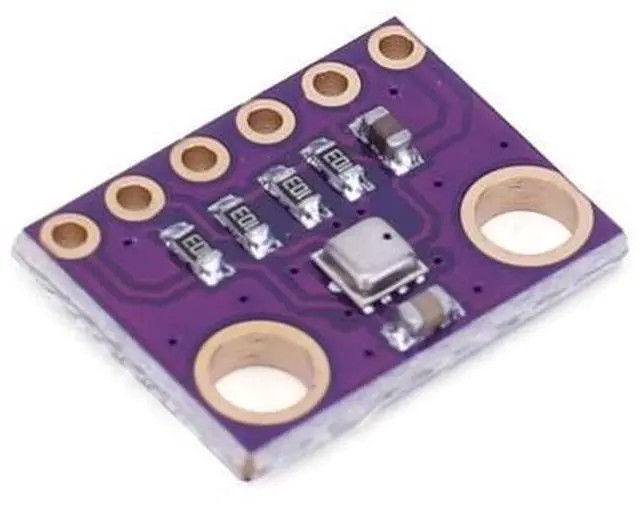

Air Pressure Sensor Module Digital Temperature Humidity Barometric Pressure Sensor Electronic Components

Temperature Humidity Barometric Pressure Sensor Digital Air Pressure GY-BME280- 3.3V Sensor Breakout Electronic
Components Features:
1.
High-Precision Sensor Module: This GY-BME280- 3.3 digital atmospheric pressure sensor module offers high-accuracy readings for temperature, humidity, and pressure, making it a reliable choice for weather monitoring and other applications.
2.
Multiple Interface Options: The module is compatible with both IIC and SPI interfaces, allowing for flexible integration into a wide range of projects.
3.
Accurate and Reliable: The module has a high level of accuracy for measuring temperature, humidity, and pressure, with low errors and lag times ensuring reliable readings.
4.
Easy Installation: With an M3 fixing screw hole, this module is easy to install and secure in your project, making it a user-friendly option for DIY enthusiasts and professionals alike.
5.
Compact Size: With dimensions of only 15.4 x 11.6 x 2.4 mm, this GY-BME280- 3.3 module is small and easy to incorporate into your project without taking up too much space.
Specification:
Origin: Mainland
China Type: Voltage
Regulator Condition: New
Supply Voltage: 3.3 V
Model Number: BME280 3.3V Digital Sensor
Temperature Digital Interface Type: Iic (Slave Mode 3.4 mhz) Or Spi (3 Or 4 Wire Slave Mode 10mhz)
Relative Humidity Measurement Range: 0%-100%
Humidity Response Time: Greater Than 1s
Humidity Measurement Error: 2%;
Humidity Hysteresis: 1%; Resolution 0.8 % Barometric
Pressure Measurement Range: 300-1100hpa (Hpa) Barometric
Measurement Error: 1hpa Resolution 0.18 pa
Temperature Measurement Range: 0C-65C Temperature
Measurement Error: 0.5C Max1C;
Resolution 0.1C Operating Voltage: 3.3 v With M3 Fixing Screw Hole, Easy To Install And Fix.
Size: 15.4 * 11.6 * 2.4 mm
Instructions For Use:
Csb: Chip Select Pin, Connected To Iic Communication Interface High Level (Default), Connected To Spi Communication Interface Low
Level Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. 1*BME280- 3.3 High Precision Atmospheric Pressure Sensor Module
