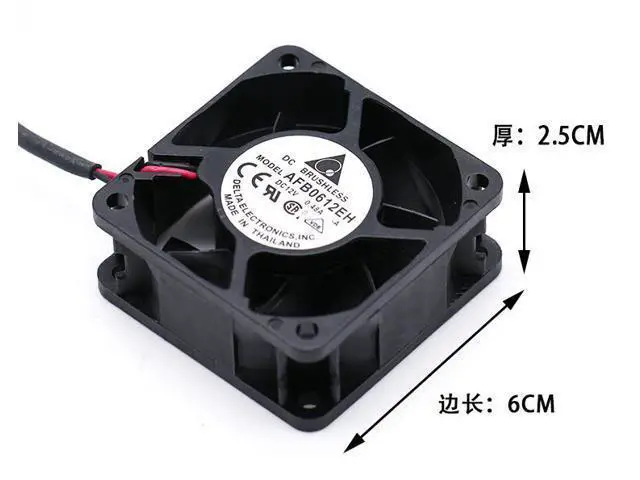

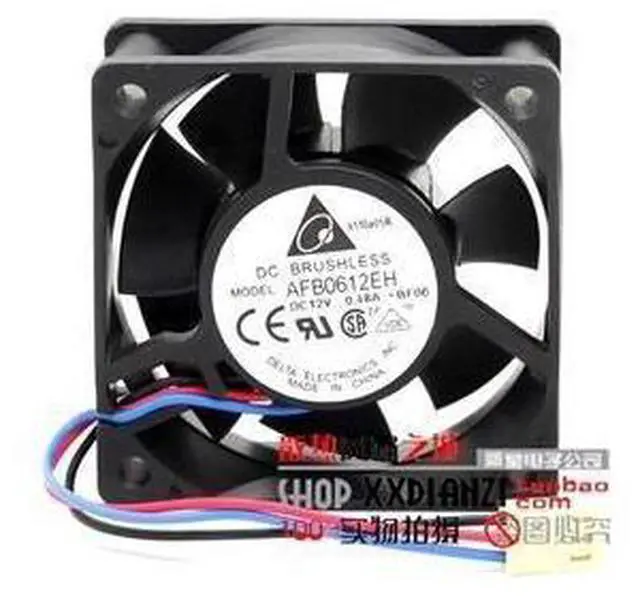

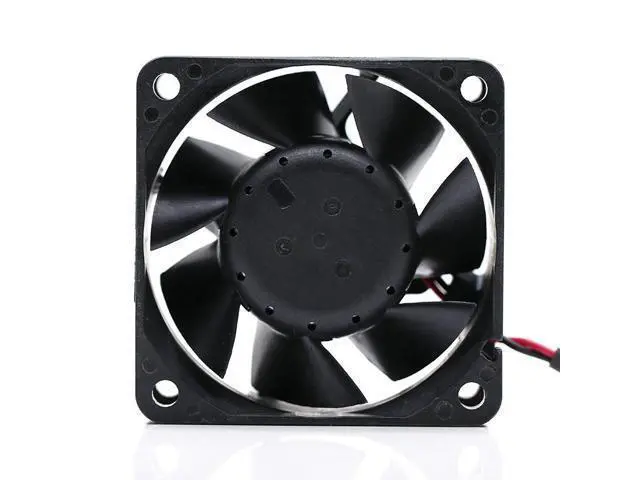

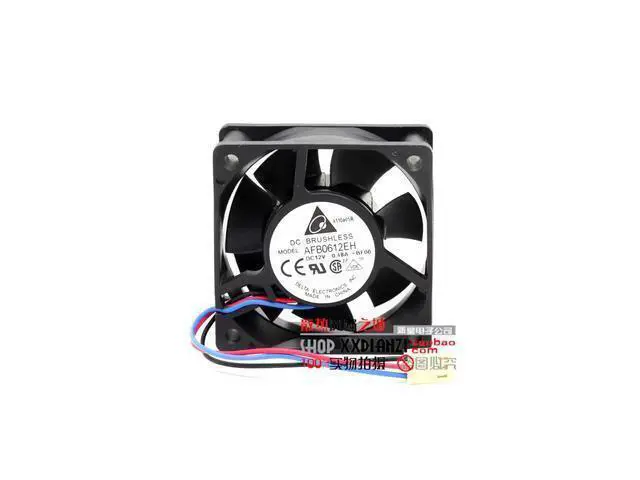

AFB0612EH-F00 AFB0612EH-R00 2wire 3wire 4wire FG RD TACH Alarm pwm cooling fan 6025 12v 0.48a 60*60*25MM
- AFB0612EH-F00 AFB0612EH-R00 2wire 3wire 4wire FG RD TACH Alarm pwm cooling fan 6025 12v 0.48a 60*60*25MM
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification: CE
Origin: CN (Origin)
Application: Computer Case
Compatible CPU: yes
Bearing: Two Ball Bearing
Fan Life: 50000 hrs
Type: Fan
Heatsink Material: Plastic Model afb0612eh Size 60 × 60 × 25mm Voltage 12V Current 0.48A Revolution 6800 rpm Air volume 38.35 CFM 1.068 m/min Wind pressure 0.544 in-h2o 13.81 mmH2O Noise 46.5
DB Interface: Standard motherboard 3P plug, supporting wire length 15cm
Bearing: high precision double ball bearing
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Rotation direction of fan: anticlockwise as seen from the direction of fan blade
Operating temperature: - 10 ° C to + 70 ° C
Storage temperature: - 40 ° C to + 70 ° C
Power supply range: plus or minus 15% of rated power supply
Insulation resistance: more than 500 megohm
Withstand voltage: sink leakage current 0.5 ma500v/1min
Working life: 80000 hours at 25 ° C ambient temperature
Origin: CN (Origin)
Application: Computer Case
Compatible CPU: yes
Bearing: Two Ball Bearing
Fan Life: 50000 hrs
Type: Fan
Heatsink Material: Plastic Model afb0612eh Size 60 × 60 × 25mm Voltage 12V Current 0.48A Revolution 6800 rpm Air volume 38.35 CFM 1.068 m/min Wind pressure 0.544 in-h2o 13.81 mmH2O Noise 46.5
DB Interface: Standard motherboard 3P plug, supporting wire length 15cm
Bearing: high precision double ball bearing
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Rotation direction of fan: anticlockwise as seen from the direction of fan blade
Operating temperature: - 10 ° C to + 70 ° C
Storage temperature: - 40 ° C to + 70 ° C
Power supply range: plus or minus 15% of rated power supply
Insulation resistance: more than 500 megohm
Withstand voltage: sink leakage current 0.5 ma500v/1min
Working life: 80000 hours at 25 ° C ambient temperature
