1pcs 5V 4A Gigabit Poe Splitter Type-C Power Over Ethernet Adapter,EEE 802.3af/at Compliant 10/100/1000mbps for Raspberry Pi 5,for Raspberry Pi 4,Power Supply Exchanger,IP Camera, Tablets, Dropcam etc

Ransanx Welcome to Ransanx store Previous page Sensor Voice Recorder Motor Bitcoin Miner Receiver Audio Receivers Screen Poe Splitter Tester Module Cable Extender Module AA Batteries Lipo Battery Servo Controller Amplifier Next page Ransanx Welcome to Ransanx store Sensor Voice Recorder Motor Bitcoin Miner Receiver Audio Receivers Screen Poe Splitter Tester Module Cable Extender Module AA Batteries Lipo Battery Servo Controller Amplifier Overview TYPEC0504G PoE splitter, a

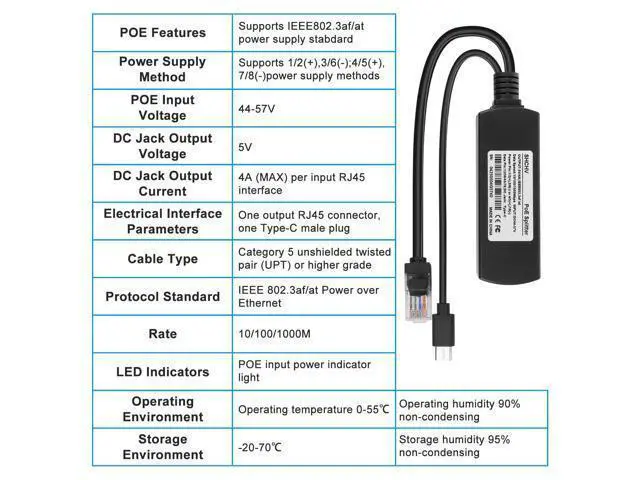

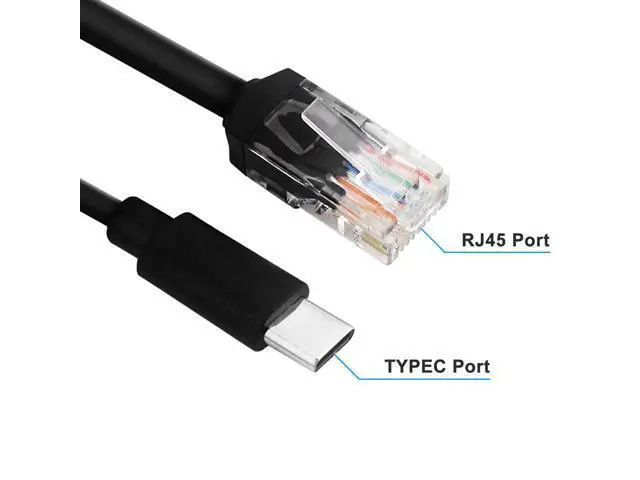

new model: With RJ45 port and DC port with TYPEC. It is an economical and practical PoE remote power equipment base on IEEE 802.3 af /at standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE 802.3 af/at, Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line Features Support international standard IEEE 802.3 af/at (30W) POE port Support 10/100/1000M data transmission PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module 5V/4A power output using TYPEC, the TYPEC port only for power-charging Support the isolation circuit protection, can effectively protect electrical equipment Support the short circuit, overvoltage protection 1500V high voltage isolation Technical Parameters Model TYPEC0504G Transfer Rate 10/100/1000M Power Input 52V DC / 0.6A, Output 5V/4A Standard IEEE 802.3 af/at (30W) TRNF 1/2(+), 3/6(-); 4/5(+), 7/8(-) Interface Type1 Input RJ45 port, 1 output RJ45 port, 1 DC outputTYPEC StandardIEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at LEDYellow 5V lampGreen Class 4 lamp EnvironmentWork within -40~70°, Storage within -40~85° Work within 10%~90% Non-condensing, Storage within 5%~95% Non-condensing Dimension 80.3L * 28.3W * 23.2H Weight 0.05 kg Product information Brand Ransanx Hardware Interface USB Type C Color 1PCS 5V 4A Compatible Devices for Raspberry Pi 5, for Raspberry Pi 4, Power Supply Exchanger, IP Camera, Tablets, Dropcam etc Data Link Protocol IEEE 802.3 af/at Data Transfer Rate 1000 Megabits Per Second Manufacturer Ransanx Package Dimensions 6.89 x 4.72 x 0.79 inches Item Weight 1.87 ounces Date First Available May 9, 2025
