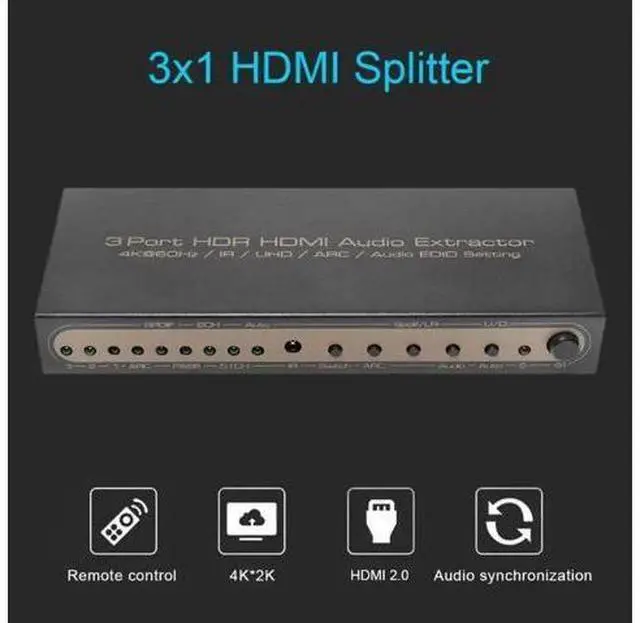

3 Port Switch Switcher 3x1 Audio Extractor 4Kx2K Switch Splitter Achieving Synchronized Separation Audio Output
Limited time offer, ends 05/29 By CoreDepot
- Good Quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:

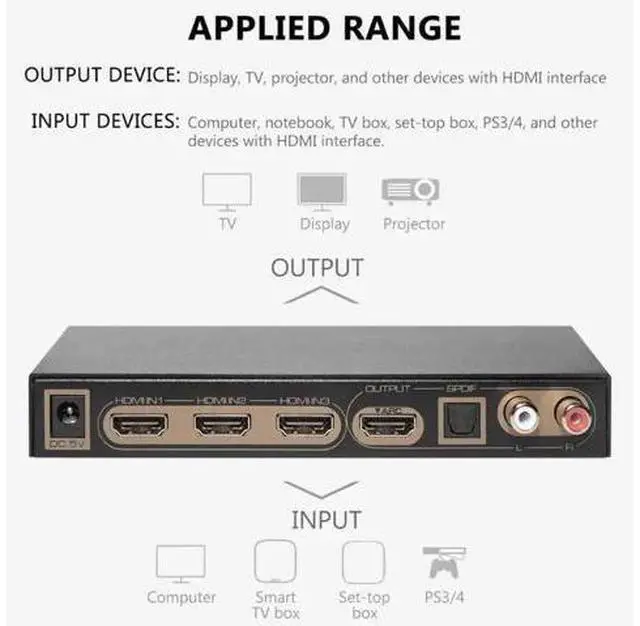

1. Three-way signal input is freely switched to a display device supporting signal input.
2. Any HD signal source can achieve independent audio output through optical fiber or left and right channels.
3. Supporting HDR.
4. Supporting 4K*2K/60Hz resolution.
5. Video format supports 8bit
YcbCR 4:4: 4 with maximum resolution of 4K*2K/60Hz.
6. Support ARC function, output TV ARC return audio through optical fiber port.
7. Audio synchronous separate output can be achieved. There are 2.0, 5.1 and PASS audio modes to choose from. 8. SPDIF digital audio output supports Dolby digital (AC3) and DTS supports 5.1 channel. 9. LED indicator lights, when the signal source or signal terminal is in working state, the corresponding indicator lights will turn on. 10. LED status indicator, so that the work status of the product is clear at a glance.
11. No signal loss.
Specification:
resolution: 4Kx2K 60Hz/4Kx2K 30Hz/1080p/1080i/720p/576p/576i/480p/480i
Audio Output: Optical Fiber and Left and
Right Channels Maximum transmission bandwidth: 600MHz
Maximum transmission rate: 18Gbps Input and output
TMDS signal: 0.5 - 1.5V p-p (TTL) Input and output
DDC signal: 5Vp-p (TTL)
Input cable length: 10m (1080P) /5M (4K) AWG24 standard line
Output cable length: 10m (1080P) /5M (4K) AWG24 standard line
Maximum operating current: 900 mA
Power adapter: AC
input (50/60HZ): 100V-240V, DC
output: 5V/2A
Working temperature: -0 to +40
Storage temperature: -20 to 60
Working humidity: 5-85% RH (no condensation)
Storage humidity: 5-95% RH (no condensation)
Plug type: US
Note:
1. Three-way signal input is freely switched to a display device supporting signal input.
2. Any HD signal source can achieve independent audio output through optical fiber or left and right channels.
3. Supporting HDR.
4. Supporting 4K*2K/60Hz resolution.
5. Video format supports 8bit
YcbCR 4:4: 4 with maximum resolution of 4K*2K/60Hz.
6. Support ARC function, output TV ARC return audio through optical fiber port.
7. Audio synchronous separate output can be achieved. There are 2.0, 5.1 and PASS audio modes to choose from. 8. SPDIF digital audio output supports Dolby digital (AC3) and DTS supports 5.1 channel. 9. LED indicator lights, when the signal source or signal terminal is in working state, the corresponding indicator lights will turn on. 10. LED status indicator, so that the work status of the product is clear at a glance.
11. No signal loss.
Specification:
resolution: 4Kx2K 60Hz/4Kx2K 30Hz/1080p/1080i/720p/576p/576i/480p/480i
Audio Output: Optical Fiber and Left and
Right Channels Maximum transmission bandwidth: 600MHz
Maximum transmission rate: 18Gbps Input and output
TMDS signal: 0.5 - 1.5V p-p (TTL) Input and output
DDC signal: 5Vp-p (TTL)
Input cable length: 10m (1080P) /5M (4K) AWG24 standard line
Output cable length: 10m (1080P) /5M (4K) AWG24 standard line
Maximum operating current: 900 mA
Power adapter: AC
input (50/60HZ): 100V-240V, DC
output: 5V/2A
Working temperature: -0 to +40
Storage temperature: -20 to 60
Working humidity: 5-85% RH (no condensation)
Storage humidity: 5-95% RH (no condensation)
Plug type: US
Note:
