9139 For Switch PRO / Lite Bluetooth Wireless Controller PC Android PS3 Burst Screenshot Module Somatosensory Controller

9139 For Switch PRO / Lite Bluetooth Wireless Controller PC Android PS3 Burst Screenshot Module Somatosensory
Controller Specification:
Model: PG-9139
Operating voltage: DC 3.7V
Working current: <35ma
For continuous use: more than 15 hours
Sleep Current: <40ua
Charging voltage / current: dc5v / 500ma Bluetooth 4.0, transmission
distance: 8 8 m
Battery capacity: 650 mah
Standby time: 30 days at full power
Controller operating instructions: N-switch
mode: 1.
pairing connection: press the small button on the right side of the back for 1 second to enter the bluetooth pairing state. The 1-4 led indicator light flashes in the marquee mode, and the medium color led light flashes in 7 colors. If the pairing is successful within 2 minutes, the fist will go to sleep. 2.
successful pairing: after the bluetooth pairing is successful, the LED1-4 indicator light is always on according to the standard channel assigned by the host, and the medium color light enters the 7-color cycle and flashes slowly (the interval between each color is 3 seconds). 3.
rear pairing connection: press the home button for 1 second to enter the bluetooth connection state, the LED1-4 indicator light flashes in marquee mode, and the medium color led light flashes in 7 colors.
PC mode: 1.
connection method: directly connect the computer and the handle with the data cable; xinput leds 1, 2 and 3 are always on. In dinput mode, leds 1 and 2 are always on; in both modes, the central flashlight enters the 7-color slow flash (3 seconds between each color) state.

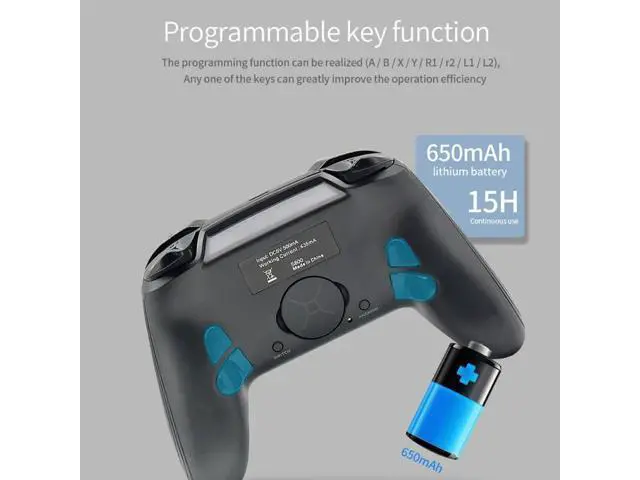

Programmable button function: 1. the programming function can perform any of a, b, x, y, l, zl, r, zr.
