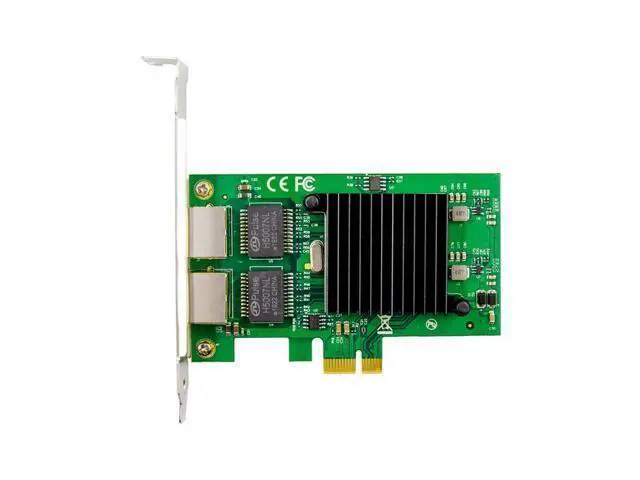

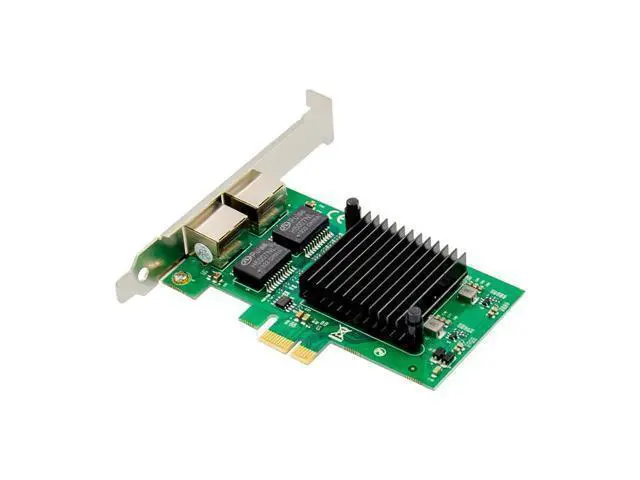

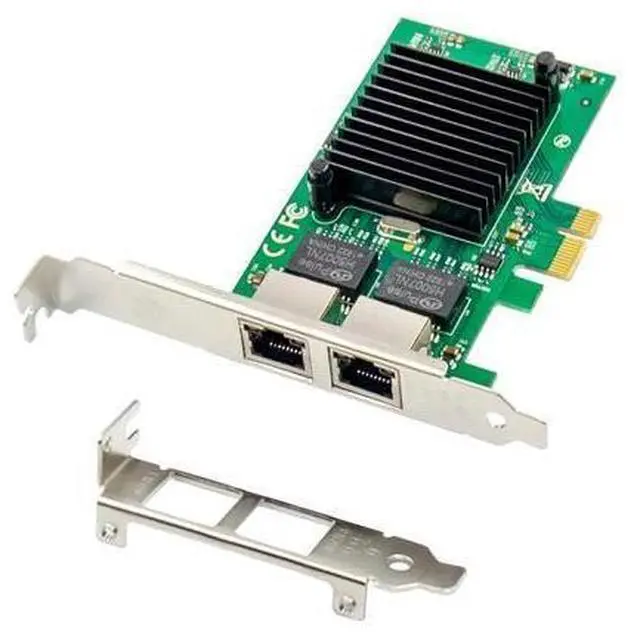

2 Port PCIE X1 1000M PCIe Gigabit Ethernet Dual Port RJ45 Lan Network Card Chip 82576EB 1000M Pci-e Ethernet Server

PCIe X1 Gigabit Ethernet electrical port network card, based on ® Ethernet 82576 controller. This adapter represents enterprises and data centers The next step in Gigabit Ethernet (GbE) network evolution, providing audio/video bridging (AVB) support, and power management such as energy-efficient Ethernet Technology (EEE) merge with DMA (DMAC). PCI Express * Gen 2.1 ( 2.5GT /s), high performance design Dual-port PCI-Express * 10/100/1000Mbps Ethernet network card
Innovative power management functions: Including Energy Efficient Ethernet (EEE), DMA coalescing, ultra-compact design, and unique ventilation brackets that can increase efficiency and reduce power consumption. IEEE 802.1Q av Audio-Video Bridge (AVB), used for strictly controlled media stream synchronization, buffering and reservation Technical Parameter Applicable network Gigabit
Ethernet Main controller: 82576EB
Bus type: PCI Express X1, 2.5GT /s
Media interface: copper cable,
RJ45 Transmission rate: 10/100/1000Mbps
Network topology: 10BASE-T/ 100BASE-TX/ 1000BASE-T, IEEE 802.1Q VLA
Ns, IEEE 802.3 z, IEEE 802.3, IEEE 802.3 x, IEEE 1588, IEEE 802.3 az Energy Efficient Ethernet (EEE) Management function IPMI transfer through SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering Operating system FreeBSD, Linux, VMWare ESXi, Win 7/ Server 2012/ Server 2008/ Win 8/Win 8.1 /Server 2016/Win 10 Firmware environment Product certification FCC, CE, RoHS Working temperature 0 ~ 55 (32 ~ 131) Storage temperature -40 ~ 70 (-40 ~ 158 ) Storage humidity 90% non-condensing relative humidity at 35 1 x User Manual 1 x drive-CD
