SATA card 1X Cards PCI Express to SATA 3.0 2Ports 4ports 6ports SATA III 6Gbps Expansion Adapter Boards add on card
- Good Quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2ports
PCIE Card:
Feature:
1. Compliant with Serial ATA Specification 3.0, down compatible with SATA 2.0 SATA 1.0.
2. Conformance to xpress v 2.0 specifications, down compatible with xpress v 1.0.
3. Supports communication speeds of 6.0G bps, 3.0G bps and 1.5G bps.
4. Supports Gen 1i, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
5. Supports two SATA Ports.
6. Supports AHCI 1.0 and IDE modes.
7. Supports Native Command Queuing (NCQ)
8. Supports Port Multiplier FIS based switching or command based switching.
9. Supports Hot Plug and Hot Swap.
10. Compatible with SATA 6G, 3G and 1.5G
Hard Drives Specification: Product
interface: 1X 4X 8X 16X

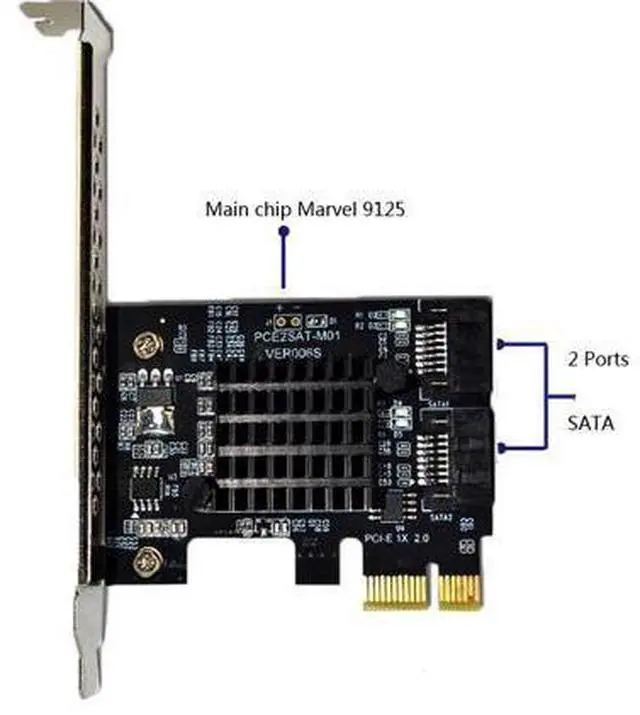

Chipest: Marvel 9125
Support specification: SATA 3.0 7PIN
Bus interface: xpress X1 slot
Extension interface: 2 SATA 3.0 interfaces
System requirements: there is an available PCI Express X1 slot, while supporting X2 X4 X8 X16 Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux
Package content: 1 x to SATA 3.0 Extension Card 1 x Small and Big Bracket 1 x
Screw Note:
1. Please use SATA 3.0 data line to achieve the best results 2. slot must have a V 2.0 or higher slot, V 1.0 will not exceed 250M, is X1 or X16 as long as it is V 2.0 version, there is spare X16 slot directly inserted On the X16 slot, 3.
BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on under 1.0 only 200- 250M, 2.0 below 350-400M 5555
PCIE Card:
Feature:
1. Compliant with Serial ATA Specification 3.0, down compatible with SATA 2.0 SATA 1.0.
2. Conformance to xpress v 2.0 specifications, down compatible with xpress v 1.0.
3. Supports communication speeds of 6.0G bps, 3.0G bps and 1.5G bps.
4. Supports Gen 1i, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
5. Supports two SATA Ports.
6. Supports AHCI 1.0 and IDE modes.
7. Supports Native Command Queuing (NCQ)
8. Supports Port Multiplier FIS based switching or command based switching.
9. Supports Hot Plug and Hot Swap.
10. Compatible with SATA 6G, 3G and 1.5G
Hard Drives Specification: Product
interface: 1X 4X 8X 16X
Chipest: Marvel 9125
Support specification: SATA 3.0 7PIN
Bus interface: xpress X1 slot
Extension interface: 2 SATA 3.0 interfaces
System requirements: there is an available PCI Express X1 slot, while supporting X2 X4 X8 X16 Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux
Package content: 1 x to SATA 3.0 Extension Card 1 x Small and Big Bracket 1 x
Screw Note:
1. Please use SATA 3.0 data line to achieve the best results 2. slot must have a V 2.0 or higher slot, V 1.0 will not exceed 250M, is X1 or X16 as long as it is V 2.0 version, there is spare X16 slot directly inserted On the X16 slot, 3.
BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on under 1.0 only 200- 250M, 2.0 below 350-400M 5555
